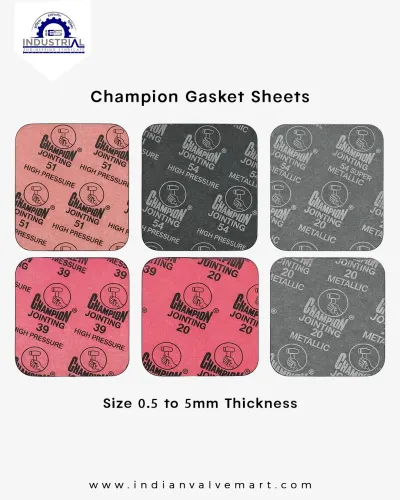

Champion Style 20 is a general-purpose gasket sheet designed for medium-duty industrial sealing applications. It provides good compressibility, recovery and sealing performance and is commonly used for steam, condensate, water, air, gases, oils and solvents, subject to service conditions and chemical compatibility. Types Available Style 20 Red: Non-metallic version Style 20 Metallic: Steel wire gauze reinforced version with graphite anti-stick finish The non-metallic version is identified by its red colour, while the metallic version is graphited black. Construction High-grade fibre Special fillers and binders Metallic version with steel-wire gauze reinforcement Graphite anti-stick surface on the metallic version Temperature & Pressure Rating Type Maximum Continuous Temperature Maximum Pressure Style 20 Red 380°C 35 bar (3.5 MPa) Style 20 Metallic 415°C 40 bar (4 MPa) These are maximum limits; actual suitability depends on the combined pressure-temperature conditions and service medium. Available Thickness 0.5 mm 0.75 / 0.8 mm 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm 5.0 mm Typical Physical Properties Density: 2.0–2.2 g/cm³ Tensile Strength: ≥9.5 MPa Compressibility: 7–12% Recovery: ≥42.5% Gas Permeability: <0.5 cc/min Ignition Loss: ≤20% Features Good general-purpose sealing performance Suitable for low to medium service duties Good compressibility and recovery Easy to cut into custom gasket sizes Available as sheets and pre-cut gaskets Metallic version offers additional mechanical strength Suitable for flanges with relatively low bolt loading Applications Steam pipelines Condensate lines Water pipelines Air and gas lines Oil lines General industrial flanges Pumps and valves Low to medium pressure industrial equipment Standards Champion Style 20 is listed as complying with IS 2712:1971 Grade C and IS 2712:1998 Grade W/3.

Champion Style 51 is a high-pressure compressed fibre gasket sheet manufactured from premium-grade fibre with specialized elastomers, fillers and binders. It is designed for demanding high-pressure gas and steam applications and other industrial services involving elevated temperature and pressure. Construction Compressed fibre jointing material Specialized elastomeric binder system Available in non-metallic and metallic versions Metallic version incorporates steel-wire gauze reinforcement Graphited anti-stick finish is available on the metallic version. Temperature & Pressure Rating Type Maximum Continuous Temperature Maximum Pressure Non-Metallic 440°C 8 MPa / 80 bar Metallic 480°C 10 MPa / 100 bar Actual suitability depends on the combined pressure-temperature conditions and chemical compatibility. Typical Physical Properties Density: 1.9–2.2 g/cm³ Tensile Strength: ≥15 MPa Compressibility: 7–12% Stress Relaxation: ≥23 MPa Gas Permeability: <0.5 cc/min Recovery: ≥45% Ignition Loss: ≤22% Available Thicknesses 0.5 mm 0.75 mm 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm* 5.0 mm* *Certain thicker sizes have limited sheet-size availability. Applications High-pressure steam lines Petrochemical plants Refineries Process industries Petroleum distillate services Neutral non-flammable gases Oils and fats Alcohols and motor fuels Alkali and dye applications, subject to compatibility. Features & Advantages Suitable for demanding temperature and pressure conditions Good compressibility and recovery Low gas permeability Reliable sealing performance Metallic version provides additional mechanical strength Available as full sheets or pre-cut gaskets Complies with IS 2712:1998 Grade W/2 and other listed specifications.

Champion Style 54 Super is a premium-grade compressed fibre jointing sheet designed for demanding high-temperature and high-pressure sealing applications. It is especially used for superheated steam and is also suitable for several compatible industrial fluids. It is available in non-metallic and steel-wire-reinforced metallic versions. Construction Premium-grade fibre with heat-resistant fillers and binders Non-metallic version: Yellow Metallic version: Steel-wire gauze reinforced, minimum 18 mesh × 30 gauge Metallic version supplied with a smooth anti-stick graphite finish Metallic identity colour: Graphited black Temperature & Pressure Rating Type Maximum Continuous Temperature Maximum Pressure Style 54 Super Non-Metallic 550°C 15 MPa / 150 bar Style 54 Super Metallic 600°C 16 MPa / 160 bar Actual operating limits should always be selected according to the pressure-temperature combination and service conditions. Typical Physical Properties Density: 2.0–2.2 g/cm³ Tensile Strength: ≥28 MPa Compressibility: 7–11% Recovery: ≥50% Gas Permeability: <0.5 cc/min Ignition Loss: ≤25% Available Thickness 0.5 mm 0.75 mm 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm 5.0 mm Applications Superheated steam lines Boilers Steam systems Air separation units Petroleum distillate services Oil refineries Diesel generators Marine engines Hydrocarbon, gas, solvent and alcohol services, subject to compatibility Features & Advantages Excellent resistance to high temperature and pressure Good sealing and recovery properties Suitable for demanding steam applications Metallic version provides additional strength under severe conditions Performs well where pressure fluctuates and vibration is present Available as sheets and pre-cut gaskets in custom shapes and sizes
