SANT Forged Brass Ball Valve is designed for reliable quarter-turn isolation and flow control. It features a robust forged brass body, renewable PTFE seats, and a nickel-plated brass ball for smooth operation and dependable sealing Design & Construction Body: Forged Brass, IS 6912 FLB Connector: Forged Brass, IS 6912 FLB Ball: Forged Brass, nickel plated Stem: Machined brass, nickel plated Seats: Renewable PTFE Gland Seal/Packing: PTFE Gland: Brass Nut: Stainless Steel Lever: Aluminium Design: Two-piece construction Port: Full bore Operation: Lever operated End Connection: Screwed female BSP parallel threads Pressure Rating & Testing Pressure Rating: PN 25 Working Pressure: 25 kg/cm²(g) hydraulic Body Test Pressure: 40 kg/cm²(g) hydraulic Available Sizes 8 mm (¼“) 10 mm (⅜“) 15 mm (½“) 20 mm (¾“) 25 mm (1“) 32 mm (1¼“) 40 mm (1½“) 50 mm (2“) 65 mm (2½“) 80 mm (3“) 100 mm (4“) Features Quick quarter-turn operation Full-bore design for improved flow Reliable PTFE sealing Corrosion-resistant nickel-plated ball and stem Robust forged brass construction Compact two-piece design Easy installation and maintenance Suitable for a wide range of general industrial applications Typical Applications Water supply lines Plumbing systems HVAC applications Compressed-air lines General industrial pipelines Other compatible fluid services, subject to material and service-condition compatibility

Champion Gland Packing is used to control leakage from the stuffing boxes of pumps, valves, mixers, agitators and other rotary or reciprocating equipment. Champion offers a wide range of asbestos-free packing materials for different temperatures, pressures, fluids and operating conditions. Available Material Types PTFE-based packing – for chemical and corrosion-resistant applications PTFE-Graphite packing – low-friction and heat-dissipating applications Pure Graphite / Carbon packing – high-temperature and steam service Aramid-based packing – abrasive and slurry applications Synthetic and natural fibre packing – general industrial duties Combination packing – for demanding chemical and abrasive services. Construction Braided square-section packing Available in different fibre and material combinations PTFE, graphite or special lubricants used depending on the style Certain grades include reinforcement for demanding service Available as coils, lengths and, for selected products, pre-formed packing rings. Features Effective leakage control Low friction and reduced shaft/stem wear Good heat dissipation in graphite-based grades Excellent chemical resistance in PTFE-based grades High temperature and pressure capability in selected grades Good flexibility and dimensional stability Long service life with proper installation and adjustment. Applications Centrifugal pumps Reciprocating pumps Valve glands Mixers and agitators Rotary equipment Steam applications Water and condensate systems Oil and hydrocarbon service Chemical processing Abrasive and slurry applications. Common Champion Packing Grades Type Typical Use PTFE Packing Chemicals, acids and alkalis PTFE-Graphite Packing Pumps and general industrial applications Graphite Packing Steam and high-temperature service Carbon Packing High-performance pump applications Aramid Packing Abrasive media and slurry Natural/Synthetic Fibre Packing Water and general-purpose applications For example, Champion Style 3116 is a graphited natural-fibre packing for general pump applications, while Style 668 is a high-purity expanded graphite packing suitable for demanding valve and pump services. Advantages Reduces process-fluid leakage Helps protect pump shafts and valve stems Reduces friction and wear Available for a wide range of industrial fluids Easy to cut and install Different grades can be selected for specific pressure, temperature and chemical conditions.

Champion Gland Packing is a braided sealing material used in the stuffing boxes of pumps, valves, mixers, agitators, and other rotating or reciprocating equipment to control leakage. Champion offers a wide range of packing materials, including PTFE, PTFE-graphite, graphite, carbon, aramid and natural/synthetic fibre-based grades, allowing selection according to the fluid, temperature, pressure and equipment type. Construction Depending on the specific Champion style, gland rope may be manufactured from: PTFE fibres PTFE-graphite fibres Expanded graphite Carbon fibres Aramid fibres Natural or synthetic fibres Metallic wire reinforcement for selected high-temperature grades The packing is generally supplied in square braided cross-sections, with some styles available in other constructions or as pre-formed packing rings. Typical Features Excellent sealing performance Reduces leakage from pump shafts and valve stems Low friction for smooth equipment operation Good resistance to wear and corrosion Available for high-temperature and high-pressure service Good flexibility and compressibility Long service life with proper installation Available in various sizes and material grades. Applications Centrifugal pumps Reciprocating pumps Valves Mixers and agitators Rotary equipment Steam systems Water and condensate services Oil and hydrocarbon applications Chemical and process industries. Common Champion Gland Packing Types Packing Type Typical Application PTFE Packing Chemicals, acids and alkalis PTFE-Graphite Packing Pumps and general industrial service Graphite Packing Steam and high-temperature applications Carbon Packing High-speed pump applications Aramid Packing Abrasive and slurry services Natural Fibre Packing Water and general-purpose pumps Champion's official range includes numerous specific styles for these applications. Example: Champion Style 3116 Champion Style 3116 is a natural-fibre, graphited gland packing intended as an economical general-purpose packing for rotary and reciprocating pumps. It is recommended for hot and cold water, condensates and hydraulic fluids within its specified service conditions, and is available in common sections from 6 mm to 25 mm. Advantages Helps control process-fluid leakage Protects shafts and valve stems Reduces friction and wear Available for a wide variety of industrial services Easy to cut and install Can be supplied as rope, coils or pre-formed rings, depending on the style.

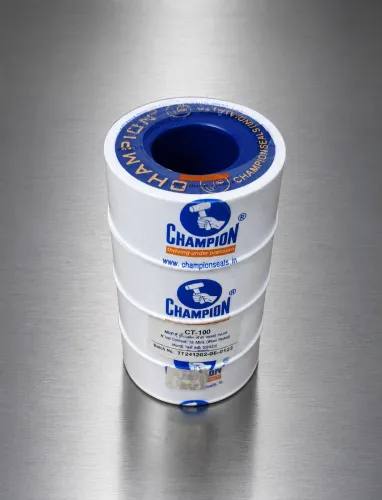

Champion PTFE Thread Seal Tape is a high-purity, high-density tape made from virgin PTFE. It is used to seal threaded pipe and fitting connections and helps prevent leakage in water, gas, oil, chemical and other compatible fluid lines. Technical Specifications Property Details Material Minimum 99.9% virgin PTFE Colour Natural white Thickness 0.075 mm Density Approx. 0.6 g/cm³ Temperature Range Up to approximately -190°C to +280°C, depending on the specific product datasheet Pressure Up to 20 bar for the general thread-seal tape specification Thread Range 1/8“ to 3“ threaded connections Chemical Resistance Excellent resistance to many chemicals, corrosives, oils, solvents and gases Toxicity Non-toxic Flammability Non-flammable Shelf Life Indefinite under suitable storage conditions Available Sizes CT-125: 12.5 mm width × 12 m length CT-190: 19 mm width × 12 m length CT-250: 25 mm width × 12 m length All three listed models have a typical thickness of 0.075 mm. Features High-density construction for effective thread sealing Helps prevent leakage from threaded joints Does not harden or crack easily Low-friction PTFE material Easy to apply and remove during maintenance No curing time required Helps reduce electrolytic corrosion between threaded joints Suitable for metal and many plastic threaded fittings, subject to application requirements. Applications Water pipelines Gas lines LPG/CNG connections for suitable specified applications Oil and lubricant lines Chemical pipelines Plumbing systems Industrial threaded valves and fittings Food and other approved applications where the appropriate product specification applies. Advantages Simple and quick installation Reliable sealing of threaded connections Excellent chemical resistance Wide temperature capability Long shelf life Low maintenance Suitable for a broad range of industrial and plumbing applications.

Champion Style 20 is a general-purpose gasket sheet designed for medium-duty industrial sealing applications. It provides good compressibility, recovery and sealing performance and is commonly used for steam, condensate, water, air, gases, oils and solvents, subject to service conditions and chemical compatibility. Types Available Style 20 Red: Non-metallic version Style 20 Metallic: Steel wire gauze reinforced version with graphite anti-stick finish The non-metallic version is identified by its red colour, while the metallic version is graphited black. Construction High-grade fibre Special fillers and binders Metallic version with steel-wire gauze reinforcement Graphite anti-stick surface on the metallic version Temperature & Pressure Rating Type Maximum Continuous Temperature Maximum Pressure Style 20 Red 380°C 35 bar (3.5 MPa) Style 20 Metallic 415°C 40 bar (4 MPa) These are maximum limits; actual suitability depends on the combined pressure-temperature conditions and service medium. Available Thickness 0.5 mm 0.75 / 0.8 mm 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm 5.0 mm Typical Physical Properties Density: 2.0–2.2 g/cm³ Tensile Strength: ≥9.5 MPa Compressibility: 7–12% Recovery: ≥42.5% Gas Permeability: <0.5 cc/min Ignition Loss: ≤20% Features Good general-purpose sealing performance Suitable for low to medium service duties Good compressibility and recovery Easy to cut into custom gasket sizes Available as sheets and pre-cut gaskets Metallic version offers additional mechanical strength Suitable for flanges with relatively low bolt loading Applications Steam pipelines Condensate lines Water pipelines Air and gas lines Oil lines General industrial flanges Pumps and valves Low to medium pressure industrial equipment Standards Champion Style 20 is listed as complying with IS 2712:1971 Grade C and IS 2712:1998 Grade W/3.

Champion Style 51 is a high-pressure compressed fibre gasket sheet manufactured from premium-grade fibre with specialized elastomers, fillers and binders. It is designed for demanding high-pressure gas and steam applications and other industrial services involving elevated temperature and pressure. Construction Compressed fibre jointing material Specialized elastomeric binder system Available in non-metallic and metallic versions Metallic version incorporates steel-wire gauze reinforcement Graphited anti-stick finish is available on the metallic version. Temperature & Pressure Rating Type Maximum Continuous Temperature Maximum Pressure Non-Metallic 440°C 8 MPa / 80 bar Metallic 480°C 10 MPa / 100 bar Actual suitability depends on the combined pressure-temperature conditions and chemical compatibility. Typical Physical Properties Density: 1.9–2.2 g/cm³ Tensile Strength: ≥15 MPa Compressibility: 7–12% Stress Relaxation: ≥23 MPa Gas Permeability: <0.5 cc/min Recovery: ≥45% Ignition Loss: ≤22% Available Thicknesses 0.5 mm 0.75 mm 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm* 5.0 mm* *Certain thicker sizes have limited sheet-size availability. Applications High-pressure steam lines Petrochemical plants Refineries Process industries Petroleum distillate services Neutral non-flammable gases Oils and fats Alcohols and motor fuels Alkali and dye applications, subject to compatibility. Features & Advantages Suitable for demanding temperature and pressure conditions Good compressibility and recovery Low gas permeability Reliable sealing performance Metallic version provides additional mechanical strength Available as full sheets or pre-cut gaskets Complies with IS 2712:1998 Grade W/2 and other listed specifications.

Champion Style 54 Super is a premium-grade compressed fibre jointing sheet designed for demanding high-temperature and high-pressure sealing applications. It is especially used for superheated steam and is also suitable for several compatible industrial fluids. It is available in non-metallic and steel-wire-reinforced metallic versions. Construction Premium-grade fibre with heat-resistant fillers and binders Non-metallic version: Yellow Metallic version: Steel-wire gauze reinforced, minimum 18 mesh × 30 gauge Metallic version supplied with a smooth anti-stick graphite finish Metallic identity colour: Graphited black Temperature & Pressure Rating Type Maximum Continuous Temperature Maximum Pressure Style 54 Super Non-Metallic 550°C 15 MPa / 150 bar Style 54 Super Metallic 600°C 16 MPa / 160 bar Actual operating limits should always be selected according to the pressure-temperature combination and service conditions. Typical Physical Properties Density: 2.0–2.2 g/cm³ Tensile Strength: ≥28 MPa Compressibility: 7–11% Recovery: ≥50% Gas Permeability: <0.5 cc/min Ignition Loss: ≤25% Available Thickness 0.5 mm 0.75 mm 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm 5.0 mm Applications Superheated steam lines Boilers Steam systems Air separation units Petroleum distillate services Oil refineries Diesel generators Marine engines Hydrocarbon, gas, solvent and alcohol services, subject to compatibility Features & Advantages Excellent resistance to high temperature and pressure Good sealing and recovery properties Suitable for demanding steam applications Metallic version provides additional strength under severe conditions Performs well where pressure fluctuates and vibration is present Available as sheets and pre-cut gaskets in custom shapes and sizes

Champion Cut Gaskets are ready-to-use gaskets cut from compressed fibre jointing sheets into the required size and shape. They are used to seal flange joints, valves, pumps, pipelines, heat exchangers, and other industrial equipment. The exact performance depends on the Champion sheet grade selected, such as Style 20 Red or Style 20 Metallic. Typical Construction Base Material: Compressed fibre jointing material Reinforcement: Non-metallic or steel wire-reinforced, depending on grade Surface Finish: Anti-stick graphite finish on selected grades Shape: Full Face / Ring Type / Custom Shape Manufacturing: Die-cut or precision-cut as per flange dimensions Typical Sizes & Thickness Champion Style 20 material is available for cutting into custom gaskets, with common sheet thicknesses including: 0.5 mm 0.75 / 0.8 mm 1.0 mm 1.5 mm 2.0 mm 3.0 mm 4.0 mm 5.0 mm Features Reliable sealing performance Available in standard and custom sizes Good compressibility and recovery Easy installation Helps compensate for minor flange surface irregularities Suitable for general industrial applications Available in non-metallic and metallic reinforced grades Pre-cut design saves fabrication time during installation Applications Pipe flange joints Valves Pumps Heat exchangers Boilers Steam lines Water pipelines Air and gas lines Oil and solvent services, subject to chemical compatibility General industrial equipment Champion Style 20 – Typical Ratings Non-metallic Style 20 Red: Maximum continuous temperature: 380°C Maximum pressure: 35 bar Style 20 Metallic: Steel wire-reinforced construction Maximum continuous temperature: 415°C Maximum pressure: 40 bar Advantages Ready-to-install gasket Custom cutting possible according to flange size Reduces installation time Good sealing reliability Available for water, steam, air, gases and other compatible media Different Champion grades can be selected according to pressure, temperature and service conditions

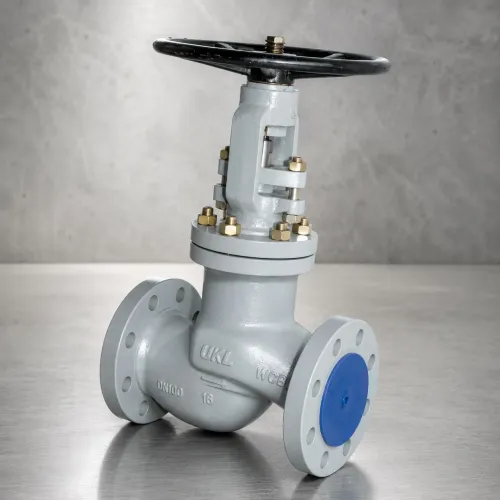

KLINGER Bellows Seal Valves are specially designed to provide highly reliable, low-leakage stem sealing. A metallic bellows forms a seal between the valve stem and body, helping prevent external leakage of the process fluid. They are particularly suitable for steam, thermal oil, vacuum, hazardous fluids and costly process media. Design & Construction Body Material: Carbon Steel / Stainless Steel Optional Material: Ductile Iron on selected models Bellows: Metallic bellows seal Stem: Non-rotating stem to prevent torsion of the bellows Bonnet: Bolted bonnet construction Seat & Disc: Cr13 hard-faced on the KAD-BLGB model Body-Bonnet Gasket: Fully enclosed spiral-wound stainless steel + graphite gasket Operation: Handwheel operated Position Indicator: Standard on the KAD-BLGB model Lubrication: Lubricating nipple provided on the KAD-BLGB model. Typical Specifications Size Range: DN15 to DN80 for the KAD-BLGB PN16 version Pressure Class: PN16; flange options include PN16, PN25, PN40 and ANSI Class 150/300 End Connections: Flanged, Socket Weld, Butt Weld and Screwed options depending on size/material Temperature Range: -10°C to +425°C Design Standard: EN 12516-1 Flange Standard: EN 1092-1 Face-to-Face: EN 558 Series 1 Inspection & Testing: EN 12266-1, Rate A (liquid). Features Metallic bellows provides reliable stem sealing Minimizes external process-fluid leakage Non-rotating stem protects the bellows from torsional stress Suitable for high-temperature applications Hard-faced seat and disc for improved service life Robust bolted-bonnet construction Long operational life with reduced maintenance requirements. Applications Steam systems Thermal oil systems High-temperature process lines Vacuum service Chemical and industrial process applications Hazardous or costly fluids where external leakage must be minimized. Advantages Excellent protection against stem leakage Helps reduce product loss and energy loss Improves plant safety and environmental protection Reliable shut-off performance Suitable for demanding industrial services Long service life

KLINGER PTFE Gland Rope is a braided compression packing used to control leakage from pumps, valves, mixers, agitators, and other rotating or reciprocating equipment. PTFE-based packing offers excellent chemical resistance, low friction, and wide temperature capability, making it suitable for many demanding industrial sealing applications. Construction Material: 100% PTFE yarn or PTFE-based braided fibres Lubrication: PTFE dispersion or inert/mineral lubricant, depending on the grade Profile: Square braided rope Colour: Usually white Available Form: Continuous lengths/coils or pre-cut packing rings Sizes: Available in various square cross-sections depending on the specific KLINGER grade. Typical Features Excellent resistance to acids and alkalis Very good chemical resistance Low coefficient of friction Good sealing performance Suitable for pumps and valve applications Clean, non-contaminating grades available Suitable for food and pharmaceutical applications in selected grades Flexible and easy to install Low maintenance requirements. Typical Temperature & Pressure The exact ratings depend on the specific KLINGER packing grade. For example, KLINGER's PTFE packing range includes grades suitable for services up to approximately 260°C, with some grades designed for high-pressure duties. Ratings should always be checked against the exact product grade and application conditions. Applications Centrifugal pumps Valves Chemical pumps Agitators and mixers Process equipment Acid and alkali services Food and pharmaceutical equipment, with suitable approved grades Water and general industrial fluid systems. Advantages Excellent chemical resistance Reduces leakage and friction Helps protect shafts and valve stems Long service life Easy to cut and install Available in different grades for specific industrial duties

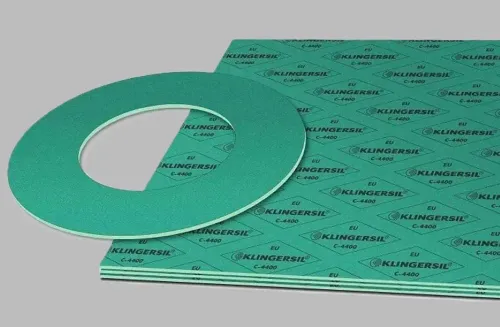

KLINGERSIL® C-4400 is a universal, high-performance compressed fibre gasket material designed for safe and reliable industrial sealing. It is made from aramid fibres bonded with NBR (nitrile rubber) and offers good resistance to a wide range of industrial media. Composition Base Material: Aramid fibres Binder: NBR (Nitrile Rubber) Type: Fibre-reinforced compressed gasket sheet Colour: Green Suitable Media KLINGERSIL C-4400 is suitable, subject to application conditions and chemical compatibility, for: Oils and lubricants Water Steam Gases Fuels and hydrocarbons Salt solutions Alcohols Refrigerants Moderate organic and inorganic acids Standard Sheet Sizes 1000 × 1500 mm 2000 × 1500 mm Standard Thicknesses 0.5 mm 1.0 mm 1.5 mm 2.0 mm 3.0 mm Typical Technical Properties Typical values for 2.0 mm thickness: Density: Approx. 1.6 g/cm³ Compressibility: Approx. 11% Recovery: Approx. 55% Thermal Conductivity: Approx. 0.42 W/mK Excellent dimensional stability Low leakage and good sealing performance Features Universal high-pressure gasket material Good compressibility and recovery Excellent sealing reliability Dimensionally stable Good resistance to oils and hydrocarbons Suitable for many industrial media Good resistance to refrigerants Easy to cut into custom gasket shapes Excellent price-to-performance ratio Applications Pumps Valves Pipe flanges Heat exchangers Compressors Steam systems Oil and gas pipelines Chemical and petrochemical plants Power plants General industrial equipment

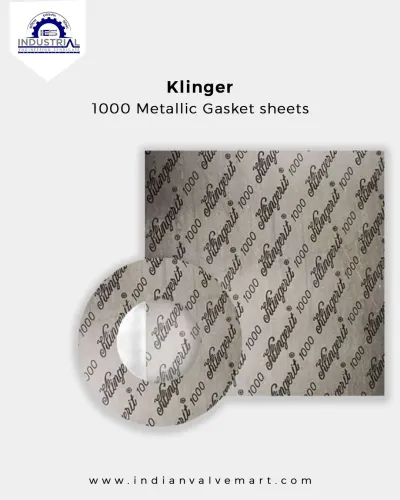

KLINGER K1000 is a high-performance compressed fibre gasket sheet designed for reliable sealing in industrial flange applications. It is generally used for water, steam, oils, fuels, gases, and various industrial fluids, subject to compatibility and operating conditions. The sheet provides good compressibility and recovery, helping maintain an effective seal during normal pressure and temperature variations. Construction Typical compressed fibre gasket sheet construction includes: High-quality fibres Elastomeric binder Functional fillers Reinforcing materials The exact composition should be confirmed from the manufacturer's current technical datasheet for the specific KLINGER K1000 product. Typical Features Good sealing performance Excellent compressibility and recovery Good mechanical strength Suitable for general industrial flange sealing Helps compensate for minor flange surface irregularities Easy to cut into custom gasket shapes Available in different sheet thicknesses Applications Water pipelines Steam systems Oil and fuel lines Pumps and valves Heat exchangers Compressors Industrial machinery General process piping Available Forms Full gasket sheets Die-cut flange gaskets Custom-cut gaskets Selection Factors The correct KLINGER K1000 gasket should be selected according to: Operating pressure Operating temperature Fluid or chemical compatibility Flange type and surface condition Gasket thickness Bolt load Advantages Reliable industrial sealing Durable sheet material Easy fabrication and installation Suitable for a wide range of general applications Helps reduce leakage and maintenance requirements
