industrial valve

Kartar Air Valves are designed to automatically release trapped air and admit air into pipelines, ensuring smooth and efficient operation of water distribution systems. They help prevent air pockets, vacuum formation, water hammer, and pipeline damage, thereby improving system efficiency and extending pipeline life. These valves are widely used in water supply, irrigation, sewage, fire protection, and industrial utility systems. Design & Construction: Body Material: Cast Iron (CI) / Ductile Iron (DI) Float Material: Stainless Steel (SS304) / Polypropylene (model dependent) Internal Components: Stainless Steel Seat Material: Nitrile Rubber (NBR) / EPDM Cover: Bolted Cover End Connection: Flanged Ends (PN10 / PN16) Standards & Specifications: Pressure Rating: PN10 / PN16 Available Sizes: DN25 (25 mm) to DN200 (200 mm) Flange Standard: IS / BS / EN Standard Drilling Testing: Hydraulic Shell & Seat Test as per applicable standards Features: Automatic air release during pipeline operation Admits air during pipeline emptying to prevent vacuum Prevents air locking and water hammer Corrosion-resistant construction Low maintenance and long service life Reliable float-operated mechanism Suitable for above-ground and underground pipeline installations Easy installation and servicing Applications: Water Supply & Distribution Networks Irrigation Systems Pumping Stations Water Treatment Plants Sewage & Wastewater Systems Fire Fighting Networks Industrial Utility Pipelines Municipal Infrastructure Projects Advantages: Eliminates trapped air from pipelines Protects pipelines from vacuum collapse Reduces water hammer effects Improves flow efficiency and pump performance Durable, leak-proof construction Long operational life with minimal maintenance Manufactured under ISO 9001-certified quality systems by Kartar Valves.

Kartar Brass Ball Valves are high-quality quarter-turn shut-off valves manufactured from forged brass for reliable flow control of water, air, oil, gas, and other compatible non-corrosive fluids. Designed with precision-machined components and PTFE seats, these valves provide bubble-tight sealing, smooth operation, excellent corrosion resistance, and long service life. They are suitable for residential, commercial, and industrial applications. Design & Construction: Body Material: Forged Brass (IS 6912 Grade FLB) Ball Material: Mirror-Finished Stainless Steel / Brass Stem Material: Brass / Stainless Steel Seat Material: PTFE (Teflon) Seal Material: PTFE Operation: Lever Operated End Connection: BSP / NPT Threaded Ends Port Type: Full Bore / Reduced Bore Design: Two-Piece Body Construction Standards & Specifications: Size Range: 15 mm (½“) to 100 mm (4“) Pressure Rating: Up to 35 Bar Maximum Working Temperature: Up to 200°C Thread Standard: BSPT / NPT (as required) Actuator Mounting: ISO 5211 mounting flange available on selected models. Features: Quarter-turn operation for quick opening and closing Bubble-tight shut-off Corrosion-resistant forged brass construction Mirror-finished precision ball for smooth operation PTFE seats for low operating torque Replaceable gland packing under pressure Compact, lightweight, and maintenance-friendly design Suitable for manual and actuator-operated applications (selected models). Applications: Water Supply Systems Plumbing (Hot & Cold Water) Air & Gas Lines Fire Fighting Systems HVAC Installations Water & Effluent Treatment Plants Chemical & Process Industries Petroleum & Oil Distribution Boilers & Steam Utility Services Construction & Mining Industries Advantages: Excellent corrosion resistance Leak-proof and reliable sealing Long service life with minimal maintenance Easy installation and operation Suitable for residential, commercial, and industrial applications Manufactured under stringent quality standards for dependable performance.

Kartar Butterfly Valves are designed for efficient flow control and positive shut-off in water, HVAC, firefighting, chemical, and industrial pipeline systems. These quarter-turn valves feature a compact design, low operating torque, and excellent sealing performance. Manufactured with high-quality materials, Kartar Butterfly Valves provide reliable operation, corrosion resistance, and long service life for both isolation and throttling applications. Design & Construction: Body Material: Cast Iron (CI) / Ductile Iron (DI) / Cast Steel (selected models) Disc Material: SG Iron (Ductile Iron) / Stainless Steel CF8 / CF8M Stem Material: Stainless Steel AISI 410 / AISI 304 Seat/Liner: EPDM / NBR / Neoprene / Silicone / Viton (application dependent) Bushes: PTFE (Teflon) / Nylon Operation: Lever Operated / Gear Operated / Pneumatic / Electric Actuator Mounting: ISO 5211 Direct Mounting Pad End Connection: Wafer Type / Lug Type / Flanged (selected models) Standards & Specifications: Design Standard: IS 13095 / BS 5155 Pressure Rating: PN10 / PN16 Size Range: DN50 (2“) to DN600 (24“) Temperature Range: -34°C to +150°C (depending on seat material) Testing: Hydraulic Shell & Seat Test as per applicable standards Features: Quarter-turn operation for quick opening and closing Bubble-tight shut-off Low operating torque Compact and lightweight design Self-lubricated bushes for smooth operation Direct actuator mounting as per ISO 5211 No metal parts in contact with the media except the disc and liner Corrosion-resistant construction Easy installation and low maintenance Applications: Water Supply & Distribution Fire Fighting Systems HVAC & Cooling Water Systems Water & Wastewater Treatment Plants Chemical & Sugar Industries Paper & Pulp Industries Compressed Air Systems Irrigation Projects General Industrial Pipelines Advantages: Reliable sealing performance Long service life with minimal maintenance Suitable for isolation and throttling duties Available with manual, gear, pneumatic, and electric actuation Manufactured under ISO 9001 quality standards Widely used in municipal, commercial, and industrial applications

Kartar Cast Iron Sluice Valves are designed for full-flow isolation in water distribution, firefighting, irrigation, and industrial pipeline systems. These valves feature a wedge gate mechanism that provides minimal pressure loss when fully open and reliable shut-off when closed. Manufactured in accordance with Indian Standards, Kartar CI Sluice Valves are known for their robust construction, corrosion resistance, smooth operation, and long service life. Design & Construction: Body Material: Cast Iron (CI) Bonnet: Cast Iron Wedge: Cast Iron / Resilient Seated (model dependent) Stem: Stainless Steel (SS AISI 410) Seat Ring: Bronze / Gunmetal or Resilient Rubber (depending on model) Operation: Handwheel, Cap Operated or Gear Operated Stem Type: Non-Rising Stem / Outside Screw & Yoke (OS&Y) Rising Stem End Connections: Flanged Ends Standards & Specifications: Design Standard: IS 14846 Pressure Rating: PN10 / PN16 BS Standard: BS 5163 Class 125 (selected models) Testing: Hydraulic Seat & Shell Test as per IS 14846 Available Sizes: DN50 (50 mm) to DN600 (600 mm) Features: Full bore design with low pressure loss Bubble-tight shut-off Corrosion-resistant stainless steel stem Available in metal seated and resilient seated designs Easy installation and low maintenance Smooth handwheel operation Heavy-duty cast iron construction Long service life Applications: Water Supply & Distribution Fire Fighting Systems Irrigation Networks Municipal Water Projects Industrial Water Pipelines HVAC Systems Marine Applications Utility Services Advantages: Reliable isolation performance Durable construction for continuous operation ISI-marked models available Suitable for underground and above-ground installations Cost-effective solution for water and utility applications Manufactured under ISO 9001-certified quality systems.

Kartar Valves are high-quality industrial valves manufactured for flow control, isolation, and backflow prevention in water supply, firefighting, plumbing, HVAC, and industrial piping systems. Established in 1972, Kartar Valves is an ISO 9001-certified Indian manufacturer offering a wide range of valves and fittings designed to meet national and international quality standards. Their products are known for durability, reliable sealing, corrosion resistance, and long service life. Types Available: Butterfly Valves Sluice (Gate) Valves Non-Return (Check) Valves Ball Valves Air Release Valves Foot Valves Y-Type Strainers Dual Plate Check Valves Single Plate Check Valves Fire Hydrants & Fire Fighting Valves Landing Valves Sprinklers DI Pipe Fittings Materials of Construction: Cast Iron (CI) Ductile Iron (DI) Forged Brass Carbon Steel (selected models) Stainless Steel (selected components) Pressure Ratings: PN10 PN16 PN25 (selected models) Class 125 / Class 150 (depending on valve type) End Connections: Flanged Screwed (BSP) Wafer Type Lug Type Standards & Specifications: IS 13095 (Butterfly Valves) IS 14846 (Sluice Valves) IS 5312 (Non-Return Valves) API 598 (Testing – selected models) ISO 9001 Certified Manufacturing CE Marking (selected products) BIS / ISI Certified products available for applicable ranges. Features: Rugged and durable construction Excellent sealing performance Corrosion-resistant materials Low operating torque Easy installation and maintenance Long service life Available with manual, gear-operated, pneumatic, and electric actuation (model dependent) Manufactured under stringent quality control Applications: Water Supply & Distribution Fire Fighting Systems HVAC Installations Irrigation Projects Municipal Water Networks Industrial Process Plants Plumbing Systems Commercial Buildings Utility Services Advantages: Over 50 years of manufacturing experience Wide range of industrial and fire protection valves ISO 9001-certified manufacturing facilities BIS/ISI-certified products for applicable categories Reliable quality with competitive pricing Trusted in waterworks, infrastructure, firefighting, and industrial projects across India and export markets.

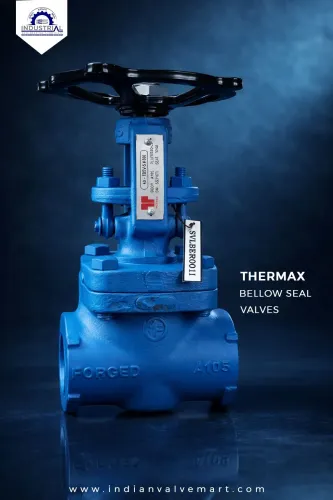

Thermax Bellow Seal Valves are specially designed globe-type isolation valves that provide zero stem leakage by using a welded metallic bellows instead of conventional gland packing. This design eliminates fugitive emissions, reduces steam and energy losses, improves plant safety, and ensures long, maintenance-free service. These valves are ideal for steam, condensate, thermal oil, gases, and hazardous process fluids. Design & Construction: Body Material: ASTM A105 Forged Carbon Steel / Cast Steel (model dependent) Bellows Material: Multi-ply Stainless Steel (SS316Ti) Stem Material: ASTM A276 Gr. 410 Stainless Steel Seat Ring: Integral Stellited Seat Plug/Disc: Stellited Stainless Steel Gland Packing: Graphite (secondary sealing) Gasket: Spiral Wound SS304 with Graphite Filler Operation: Handwheel Operated End Connections: Flanged / Butt Weld / Socket Weld Standards & Specifications: Design Standard: ASME B16.34 / EN ISO 15761 / BS 1873 Face-to-Face: ASME B16.10 Flange Standard: ASME B16.5 Testing & Inspection: API 598 Pressure Classes: Class 150 / 300 / 800 Available Sizes: DN15 (½“) to DN250 (10“), depending on model IBR Approved: Available for steam service; non-IBR models also available. Features: Zero stem leakage with metallic bellows Four-point sealing for maximum safety Maintenance-free operation with long service life Prevents steam and energy loss Secondary graphite gland packing for additional protection Integral stellited seat for excellent sealing Suitable for high-pressure and high-temperature applications Easy installation and reliable operation Applications: Steam Distribution Systems Condensate Recovery Lines Boiler Plants Thermal Oil Systems Chemical & Petrochemical Industries Power Generation Plants Textile & Food Processing Industries Pharmaceutical Plants Oil & Gas Industries Advantages: Eliminates fugitive emissions Reduces maintenance and operating costs Improves process safety and environmental protection Increases energy efficiency by preventing steam leakage Long operational life with minimal downtime Ideal for critical industrial isolation applications

Thermax Bellow Seal Valves are specially designed globe-type isolation valves that provide zero stem leakage by using a welded metallic bellows instead of conventional gland packing. This design eliminates fugitive emissions, reduces steam and energy losses, improves plant safety, and ensures long, maintenance-free service. These valves are ideal for steam, condensate, thermal oil, gases, and hazardous process fluids. Design & Construction: Body Material: ASTM A105 Forged Carbon Steel / Cast Steel (model dependent) Bellows Material: Multi-ply Stainless Steel (SS316Ti) Stem Material: ASTM A276 Gr. 410 Stainless Steel Seat Ring: Integral Stellited Seat Plug/Disc: Stellited Stainless Steel Gland Packing: Graphite (secondary sealing) Gasket: Spiral Wound SS304 with Graphite Filler Operation: Handwheel Operated End Connections: Flanged / Butt Weld / Socket Weld Standards & Specifications: Design Standard: ASME B16.34 / EN ISO 15761 / BS 1873 Face-to-Face: ASME B16.10 Flange Standard: ASME B16.5 Testing & Inspection: API 598 Pressure Classes: Class 150 / 300 / 800 Available Sizes: DN15 (½“) to DN250 (10“), depending on model IBR Approved: Available for steam service; non-IBR models also available. Features: Zero stem leakage with metallic bellows Four-point sealing for maximum safety Maintenance-free operation with long service life Prevents steam and energy loss Secondary graphite gland packing for additional protection Integral stellited seat for excellent sealing Suitable for high-pressure and high-temperature applications Easy installation and reliable operation Applications: Steam Distribution Systems Condensate Recovery Lines Boiler Plants Thermal Oil Systems Chemical & Petrochemical Industries Power Generation Plants Textile & Food Processing Industries Pharmaceutical Plants Oil & Gas Industries Advantages: Eliminates fugitive emissions Reduces maintenance and operating costs Improves process safety and environmental protection Increases energy efficiency by preventing steam leakage Long operational life with minimal downtime Ideal for critical industrial isolation applications

Thermax Bellow Seal Valves are specially designed globe-type isolation valves that provide zero stem leakage by using a welded metallic bellows instead of conventional gland packing. This design eliminates fugitive emissions, reduces steam and energy losses, improves plant safety, and ensures long, maintenance-free service. These valves are ideal for steam, condensate, thermal oil, gases, and hazardous process fluids. Design & Construction: Body Material: ASTM A105 Forged Carbon Steel / Cast Steel (model dependent) Bellows Material: Multi-ply Stainless Steel (SS316Ti) Stem Material: ASTM A276 Gr. 410 Stainless Steel Seat Ring: Integral Stellited Seat Plug/Disc: Stellited Stainless Steel Gland Packing: Graphite (secondary sealing) Gasket: Spiral Wound SS304 with Graphite Filler Operation: Handwheel Operated End Connections: Flanged / Butt Weld / Socket Weld Standards & Specifications: Design Standard: ASME B16.34 / EN ISO 15761 / BS 1873 Face-to-Face: ASME B16.10 Flange Standard: ASME B16.5 Testing & Inspection: API 598 Pressure Classes: Class 150 / 300 / 800 Available Sizes: DN15 (½“) to DN250 (10“), depending on model IBR Approved: Available for steam service; non-IBR models also available. Features: Zero stem leakage with metallic bellows Four-point sealing for maximum safety Maintenance-free operation with long service life Prevents steam and energy loss Secondary graphite gland packing for additional protection Integral stellited seat for excellent sealing Suitable for high-pressure and high-temperature applications Easy installation and reliable operation Applications: Steam Distribution Systems Condensate Recovery Lines Boiler Plants Thermal Oil Systems Chemical & Petrochemical Industries Power Generation Plants Textile & Food Processing Industries Pharmaceutical Plants Oil & Gas Industries Advantages: Eliminates fugitive emissions Reduces maintenance and operating costs Improves process safety and environmental protection Increases energy efficiency by preventing steam leakage Long operational life with minimal downtime Ideal for critical industrial isolation applications

SAMSON Control Valves are precision-engineered valves designed for accurate control of flow, pressure, temperature, and liquid level in industrial process systems. Renowned for German engineering and modular design, these valves deliver high reliability, excellent throttling performance, tight shut-off, and long service life. SAMSON control valves are widely used in power plants, oil & gas, chemical, petrochemical, pharmaceutical, food processing, HVAC, and water treatment industries. Types Available: Globe Control Valves Angle Control Valves Two-Way Control Valves Three-Way Mixing & Diverting Valves Segmented Ball Control Valves Rotary Plug Control Valves Butterfly Control Valves Cryogenic & Severe Service Control Valves Steam Conditioning & Desuperheater Valves Design & Construction: Body Material: Cast Steel (ASTM A216 WCB), Stainless Steel (CF8/CF8M), Alloy Steel Trim Material: Stainless Steel / Stellite Hard-Faced Plug Type: Single-Seated, Balanced, Cage-Guided Seat Type: Metal Seat / Soft Seat (application dependent) Bonnet Type: Standard, Extended, Bellows-Sealed, Cryogenic Stem Material: Stainless Steel Actuation: Pneumatic, Electric, Electro-Pneumatic, Hydraulic End Connections: Flanged, Butt Weld, Socket Weld Standards & Specifications: Design: IEC 60534 / ASME B16.34 Pressure Rating: PN16, PN25, PN40, PN63, PN100 / ASME Class 150, 300, 600, 900 Size Range: DN15 to DN500 (model dependent) Testing: IEC 60534-4 / API 598 Automation: Compatible with HART®, FOUNDATION™ Fieldbus and PROFIBUS smart positioners. Features: High-precision flow control Excellent throttling characteristics Leak-tight shut-off Modular valve and actuator design Anti-cavitation and low-noise trim options Suitable for high-pressure and high-temperature applications Low maintenance with long operational life Compatible with advanced digital control and diagnostics systems Applications: Power Generation Plants Oil & Gas Processing Chemical & Petrochemical Industries Steam & Boiler Systems HVAC & District Heating Water & Wastewater Treatment Pharmaceutical & Food Processing General Industrial Process Control Advantages: Precise and stable process control Reliable performance in severe operating conditions Wide range of valve designs and materials Easy integration with industrial automation systems Long service life with minimal maintenance Manufactured to international quality standards for critical industrial applications.

SAMSON Control Valves are precision-engineered valves designed for accurate control of flow, pressure, temperature, and liquid level in industrial process systems. Renowned for German engineering and modular design, these valves deliver high reliability, excellent throttling performance, tight shut-off, and long service life. SAMSON control valves are widely used in power plants, oil & gas, chemical, petrochemical, pharmaceutical, food processing, HVAC, and water treatment industries. Types Available: Globe Control Valves Angle Control Valves Two-Way Control Valves Three-Way Mixing & Diverting Valves Segmented Ball Control Valves Rotary Plug Control Valves Butterfly Control Valves Cryogenic & Severe Service Control Valves Steam Conditioning & Desuperheater Valves Design & Construction: Body Material: Cast Steel (ASTM A216 WCB), Stainless Steel (CF8/CF8M), Alloy Steel Trim Material: Stainless Steel / Stellite Hard-Faced Plug Type: Single-Seated, Balanced, Cage-Guided Seat Type: Metal Seat / Soft Seat (application dependent) Bonnet Type: Standard, Extended, Bellows-Sealed, Cryogenic Stem Material: Stainless Steel Actuation: Pneumatic, Electric, Electro-Pneumatic, Hydraulic End Connections: Flanged, Butt Weld, Socket Weld Standards & Specifications: Design: IEC 60534 / ASME B16.34 Pressure Rating: PN16, PN25, PN40, PN63, PN100 / ASME Class 150, 300, 600, 900 Size Range: DN15 to DN500 (model dependent) Testing: IEC 60534-4 / API 598 Automation: Compatible with HART®, FOUNDATION™ Fieldbus and PROFIBUS smart positioners. Features: High-precision flow control Excellent throttling characteristics Leak-tight shut-off Modular valve and actuator design Anti-cavitation and low-noise trim options Suitable for high-pressure and high-temperature applications Low maintenance with long operational life Compatible with advanced digital control and diagnostics systems Applications: Power Generation Plants Oil & Gas Processing Chemical & Petrochemical Industries Steam & Boiler Systems HVAC & District Heating Water & Wastewater Treatment Pharmaceutical & Food Processing General Industrial Process Control Advantages: Precise and stable process control Reliable performance in severe operating conditions Wide range of valve designs and materials Easy integration with industrial automation systems Long service life with minimal maintenance Manufactured to international quality standards for critical industrial applications.

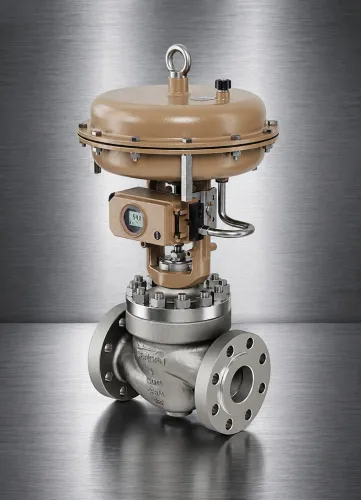

SAMSON Two-Way Control Valves are precision-engineered globe-type control valves designed for accurate regulation of flow, pressure, temperature, and liquid level in industrial process systems. They are suitable for modulating control of steam, water, thermal oil, gases, and process fluids. Their modular construction allows the valve to be combined with pneumatic, electric, or electro-pneumatic actuators for reliable and efficient process automation. Design & Construction: Body Material: Cast Steel (ASTM A216 WCB) / Stainless Steel (CF8 / CF8M) Trim Material: Stainless Steel / Stellite Hard-Faced Valve Type: Single-Seated Globe Valve Plug Type: Balanced / Unbalanced Plug Seat Type: Metal Seat Bonnet Type: Standard / Extended / Bellows-Sealed Stem Material: Stainless Steel End Connections: Flanged (ASME B16.5 / DIN EN 1092-1) / Butt Weld Actuation: Pneumatic / Electric / Electro-Pneumatic Standards & Specifications: Design Standard: IEC 60534 / ASME B16.34 Pressure Rating: Class 150 / 300 / 600 / 900 or PN16 / PN25 / PN40 / PN63 Size Range: DN15 to DN300 (NPS ½“ to 12“), depending on model Temperature Range: -196°C to +450°C (depending on body material, trim, and bonnet configuration) Testing & Inspection: IEC 60534-4 / API 598 Features: High-precision flow control Excellent throttling performance Rugged cast steel or stainless steel construction Leak-tight shut-off Low-noise and anti-cavitation trim options Modular design for easy maintenance and servicing Compatible with SMART digital positioners (HART®, FOUNDATION™ Fieldbus, PROFIBUS) Suitable for severe-service applications Applications: Steam & Boiler Systems Power Generation Plants Oil & Gas Processing Chemical & Petrochemical Industries HVAC Systems Water & Wastewater Treatment Refineries Food & Beverage Processing General Industrial Process Control Advantages: Accurate and stable process control High reliability under continuous operation Long service life with low maintenance Wide range of body materials, trims, and actuator options Designed for integration into modern industrial automation systems Manufactured to international standards for critical process applications

SAMSON Cast Steel Control Valves are high-performance globe-type control valves designed for precise regulation of flow, pressure, temperature, and liquid level in demanding industrial processes. Manufactured with rugged cast steel bodies and precision trim components, these valves provide accurate control, tight shut-off, high reliability, and long service life. They are widely used in power plants, oil & gas, petrochemical, chemical, steam, and process industries. Design & Construction: Body Material: ASTM A216 WCB Cast Steel Trim Material: Stainless Steel / Stellite Hard-Faced Plug Type: Single-Seated / Balanced Plug / Cage-Guided Seat Type: Metal Seat / High-Performance Metal Seat Bonnet Type: Standard / Extended / Bellows-Sealed Stem Material: Stainless Steel Actuation: Pneumatic / Electric / Electro-Pneumatic End Connections: Flanged (ASME B16.5) / Butt Weld (ASME B16.25) Standards & Specifications: Design Standard: IEC 60534 / ASME B16.34 Pressure Rating: Class 150 / 300 / 600 / 900 Temperature Range: -50°C to +425°C (depending on trim and body material) Valve Size: NPS 1“ to NPS 32“ (model dependent) Testing & Inspection: IEC 60534-4 / API 598 Features: High-precision flow control Rugged cast steel construction Balanced plug design for high differential pressure Excellent throttling characteristics Low noise and anti-cavitation trim options Leak-tight shut-off with metal seating Suitable for severe service applications Easy maintenance with modular construction Compatible with smart digital positioners and automation systems Applications: Power Generation Plants Oil & Gas Processing Petrochemical Industries Chemical Processing Plants Steam & Boiler Systems Refineries Water & Utility Services Process Control Systems Advantages: Accurate and stable process control Reliable performance under high pressure and temperature Long service life with minimal maintenance Suitable for severe-duty industrial applications Supports advanced plant automation and digital control systems Manufactured to international quality and performance standards.
