Industrial Valve

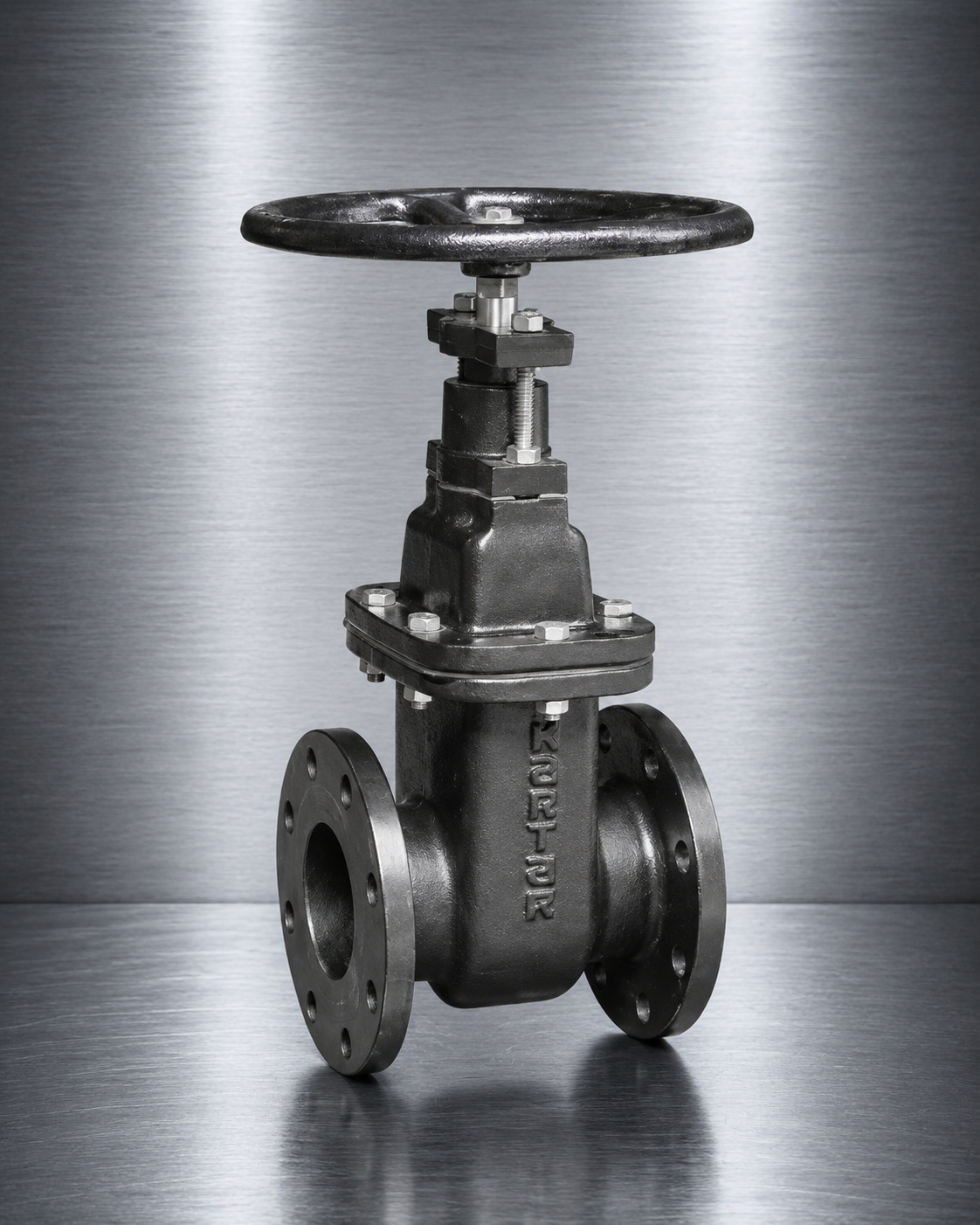

Kartar CI Sluice Valve

In stockcod not available
Phone Number

08042781800

Please keep 0 before dialling the number.

Mon-Thu: 10 AM - 2 PM • Fri: 3 PM - 7AM

Other Website Visit our other website
Address Noida, Uttar Pradesh, India

Noida, India, 0

Description

Kartar Cast Iron Sluice Valves are designed for full-flow isolation in water distribution, firefighting, irrigation, and industrial pipeline systems. These valves feature a wedge gate mechanism that provides minimal pressure loss when fully open and reliable shut-off when closed. Manufactured in accordance with Indian Standards, Kartar CI Sluice Valves are known for their robust construction, corrosion resistance, smooth operation, and long service life. Design & Construction: Body Material: Cast Iron (CI) Bonnet: Cast Iron Wedge: Cast Iron / Resilient Seated (model dependent) Stem: Stainless Steel (SS AISI 410) Seat Ring: Bronze / Gunmetal or Resilient Rubber (depending on model) Operation: Handwheel, Cap Operated or Gear Operated Stem Type: Non-Rising Stem / Outside Screw & Yoke (OS&Y) Rising Stem End Connections: Flanged Ends Standards & Specifications: Design Standard: IS 14846 Pressure Rating: PN10 / PN16 BS Standard: BS 5163 Class 125 (selected models) Testing: Hydraulic Seat & Shell Test as per IS 14846 Available Sizes: DN50 (50 mm) to DN600 (600 mm) Features: Full bore design with low pressure loss Bubble-tight shut-off Corrosion-resistant stainless steel stem Available in metal seated and resilient seated designs Easy installation and low maintenance Smooth handwheel operation Heavy-duty cast iron construction Long service life Applications: Water Supply & Distribution Fire Fighting Systems Irrigation Networks Municipal Water Projects Industrial Water Pipelines HVAC Systems Marine Applications Utility Services Advantages: Reliable isolation performance Durable construction for continuous operation ISI-marked models available Suitable for underground and above-ground installations Cost-effective solution for water and utility applications Manufactured under ISO 9001-certified quality systems.

Keywords

Other Products

view all

68179d65be22ee500d53ff54 Card 2

product image
Grease lubricant

Molykote® 1000 Anti-Seize Paste is a high-performance, metal-free lubricating and anti-seize compound designed to protect threaded fasteners, bolts, nuts, studs, flanges, and other metal components from seizure, corrosion, galling, and wear. It ensures consistent tightening torque, facilitates easy dismantling after prolonged exposure to high temperatures, and provides reliable lubrication under severe operating conditions. Composition: Mineral Oil Base Solid Lubricants White Solid Lubricating Particles Corrosion Inhibitors Metal-Free Anti-Seize Additives Technical Specifications: Appearance: White / Off-White Paste Base Oil: Mineral Oil Temperature Range: -30°C to +650°C Density (25°C): Approx. 1.3 g/cm³ Four-Ball Weld Load: High load-carrying capacity Corrosion Protection: Excellent Water Resistance: Good Pressure Resistance: Excellent Features: Prevents seizure and galling of threaded connections Ensures accurate and consistent tightening torque Excellent resistance to high temperatures Protects against corrosion and oxidation Reduces friction and wear Suitable for stainless steel and alloy fasteners Facilitates easy dismantling after long service Resistant to water, moisture, and industrial environments Metal-free formulation Applications: Bolts, Nuts & Studs Flange Connections Heat Exchangers Steam Turbines Boilers Chemical Processing Plants Oil & Gas Industries Petrochemical Plants Refineries Power Generation Plants Cement & Steel Industries Marine & Offshore Equipment Advantages: Prevents thread seizure even after prolonged high-temperature exposure Extends component service life Minimizes maintenance time and costs Provides reliable lubrication under heavy loads Reduces wear and surface damage Suitable for critical industrial maintenance applications Excellent long-term protection against corrosion and oxidation Packaging: 100 g Tube 250 g Tube 500 g Can 1 kg Can Larger industrial pack sizes available Typical Industries: Power Plants Oil & Gas Petrochemical Chemical Processing Steel Plants Cement Plants Mining Marine General Industrial Maintenance

68179d65be22ee500d53ff54 Card 2

product image
Grease lubricant

Molykote® 1000 Anti-Seize Paste is a high-performance, metal-free lubricating and anti-seize compound designed to protect threaded fasteners, bolts, nuts, studs, flanges, and other metal components from seizure, corrosion, galling, and wear. It ensures consistent tightening torque, facilitates easy dismantling after prolonged exposure to high temperatures, and provides reliable lubrication under severe operating conditions. Composition: Mineral Oil Base Solid Lubricants White Solid Lubricating Particles Corrosion Inhibitors Metal-Free Anti-Seize Additives Technical Specifications: Appearance: White / Off-White Paste Base Oil: Mineral Oil Temperature Range: -30°C to +650°C Density (25°C): Approx. 1.3 g/cm³ Four-Ball Weld Load: High load-carrying capacity Corrosion Protection: Excellent Water Resistance: Good Pressure Resistance: Excellent Features: Prevents seizure and galling of threaded connections Ensures accurate and consistent tightening torque Excellent resistance to high temperatures Protects against corrosion and oxidation Reduces friction and wear Suitable for stainless steel and alloy fasteners Facilitates easy dismantling after long service Resistant to water, moisture, and industrial environments Metal-free formulation Applications: Bolts, Nuts & Studs Flange Connections Heat Exchangers Steam Turbines Boilers Chemical Processing Plants Oil & Gas Industries Petrochemical Plants Refineries Power Generation Plants Cement & Steel Industries Marine & Offshore Equipment Advantages: Prevents thread seizure even after prolonged high-temperature exposure Extends component service life Minimizes maintenance time and costs Provides reliable lubrication under heavy loads Reduces wear and surface damage Suitable for critical industrial maintenance applications Excellent long-term protection against corrosion and oxidation Packaging: 100 g Tube 250 g Tube 500 g Can 1 kg Can Larger industrial pack sizes available Typical Industries: Power Plants Oil & Gas Petrochemical Chemical Processing Steel Plants Cement Plants Mining Marine General Industrial Maintenance

68179d65be22ee500d53ff54 Card 2

product image
Grease lubricant

Rolgard Grease is a high-performance multipurpose lubricating grease formulated to provide excellent lubrication, wear protection, and corrosion resistance for a wide range of industrial and automotive applications. It offers outstanding mechanical stability, water resistance, and oxidation stability, ensuring reliable performance under heavy loads and varying operating conditions. Rolgard Grease helps reduce friction, extend equipment life, and minimize maintenance requirements. Composition: Premium Mineral Base Oil Lithium Soap Thickener Extreme Pressure (EP) Additives Anti-Wear Additives Rust & Corrosion Inhibitors Oxidation Inhibitors Technical Specifications: Appearance: Smooth Grease Colour: Brown / Amber (Grade dependent) NLGI Grade: 2 (Standard) Base Oil Type: Mineral Oil Dropping Point: Above 180°C Operating Temperature: -20°C to +140°C Water Resistance: Excellent Mechanical Stability: High Corrosion Protection: Excellent Features: Excellent load-carrying capacity Superior protection against wear and friction High resistance to water washout Excellent oxidation and rust resistance Good adhesion to metal surfaces Long lubrication intervals Smooth and reliable equipment operation Reduces maintenance costs and downtime Applications: Electric Motors Rolling & Plain Bearings Pumps & Compressors Conveyors Industrial Gear Couplings Construction Equipment Agricultural Machinery Textile Machinery Steel & Cement Plants General Industrial Machinery Advantages: Extends bearing and equipment life Reduces friction and operating temperature Protects against rust and corrosion Suitable for heavy-duty industrial applications Excellent performance in wet and dusty environments Long-lasting lubrication with minimal maintenance Packaging: 500 g Pack 1 kg Pack 5 kg Bucket 18 kg Bucket 180 kg Drum (Industrial Bulk) Typical Industries: Manufacturing Power Generation Cement Plants Steel Plants Mining Paper & Pulp Textile Industry Automotive Workshops Construction General Industrial Maintenance
