Product Description
Need More Variants ?
Material
Forged
Valve Size
15 mm Min.
Pressure
40 Bar Max
Media
Gas, Air, Water, Etc.
Brand
Forbes Marshall
Automation Grade
Manual
Color
Blue
Packaging Type
Wooden Box
Gauge Size
25
End Connection
Screw End And Flange End
Material Grade
Forges Stell
Temperature
High
Is It Portable
Portable
Country of Origin
Made in India

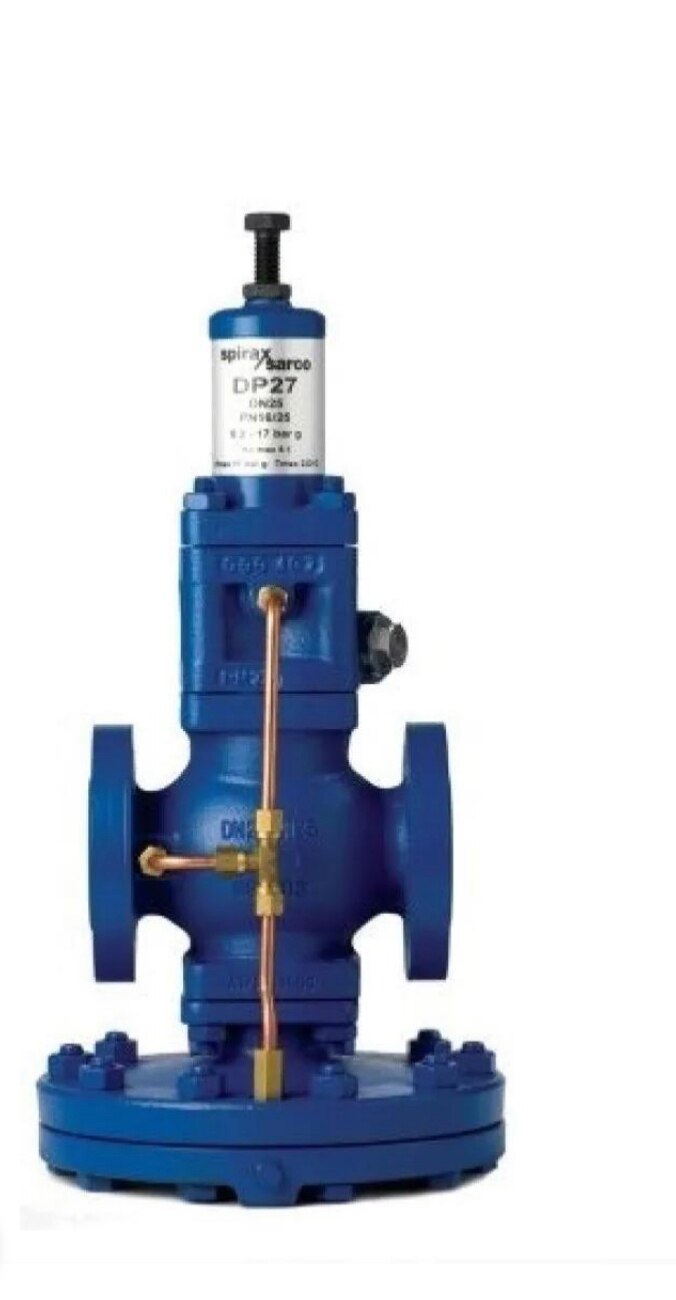

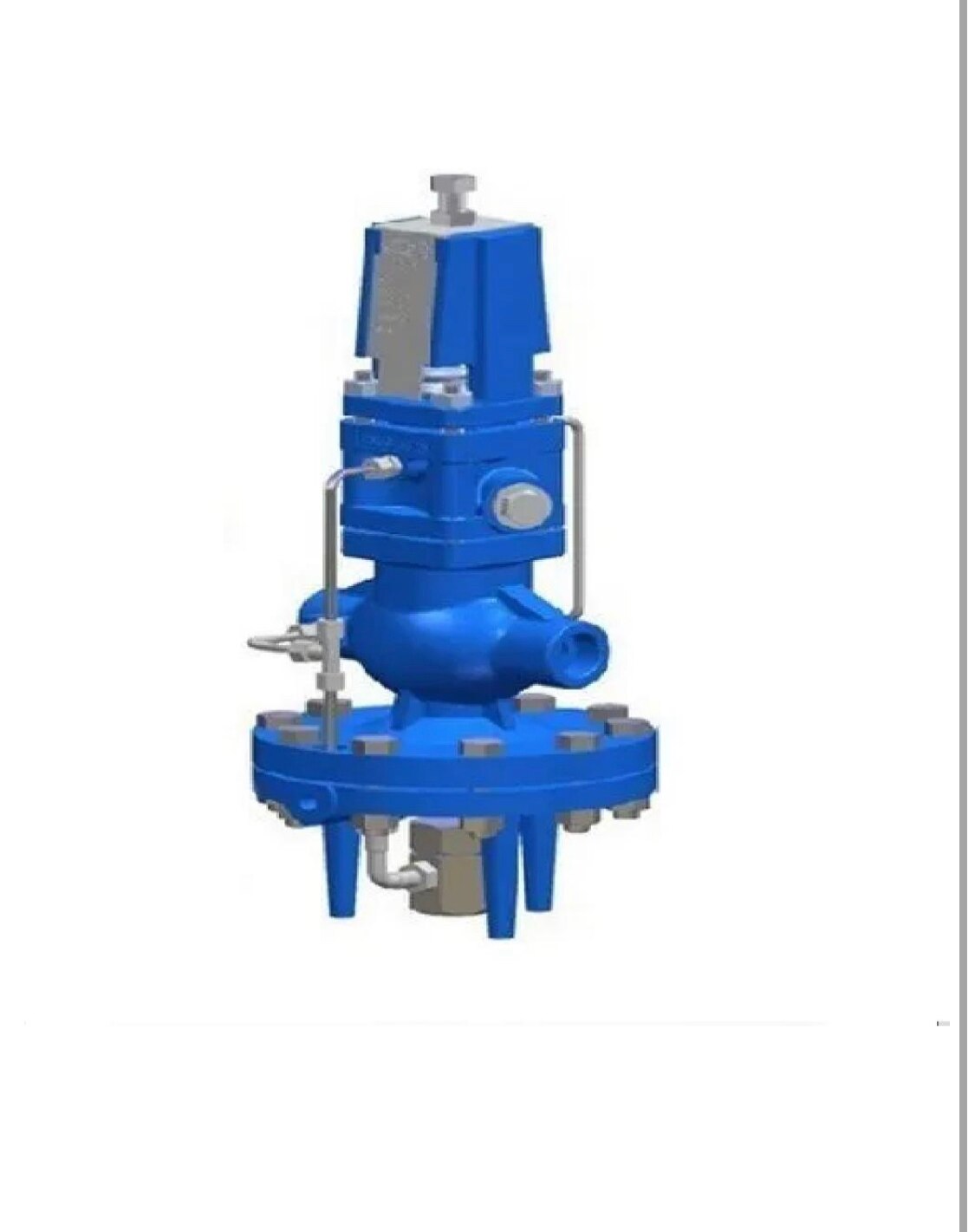

We are offering Forbes Marshall Spirax Pressure Reducing Valve to our clients.
Specification:
Sizes:
Pressure Sensing Pipe:
Installation:
How to specify:
We are looking bulk inquiries from Lucknow, Kanpur, Varanasi, Jaipur, Jodhpur, Ajmer, Bikaner, Kota, Udaipur, Bhilwara, Alwar, Agra, Meerut, Aligarh, Allahabad, Banaras, Mathura, Jhansi, Ghaziabad, Noida, Bareilly, Moradabad, Saharanpur, Uttar Pradesh, Punjab, Chandigarh, Udham Singh Nagar, Indore, Bhopal, Jabalpur, Gwalior, Ujjain, Sagar, Ratlam, Satna, Dewas, Bihar, Patna, Gaya, Bhagalpur, Muzaffarpur, Jharkhand, Jamshedpur, Dhanbad, Ranchi, Haryana, Karnal, Ambala, Panipat, Rohtak, Hisar, Faridabad, Gurgaon, Rajasthan, Jammu, Srinagar, J&K, Chhattisgarh, Raipur, Bhilai, Bilaspur and all over India. We are looking bulk inquiries from Lucknow, Kanpur, Varanasi, Jaipur, Jodhpur, Ajmer, Bikaner, Kota, Udaipur, Bhilwara, Alwar, Agra, Meerut, Aligarh, Allahabad, Banaras, Mathura, Jhansi, Ghaziabad, Noida, Bareilly, Moradabad, Saharanpur, Uttar Pradesh, Punjab, Chandigarh,
Specification:
- Maximum Working Condition 26 kg / cm2 at 300° C.
- Body design Conditions 42 kg / cm2 at 427° C.
- Cold Hydraulic test pressure without internals 52 kg/cm2
- Three colour coded pressure adjustment springs are available for the following downstream pressure ranges: Yellow :02 to 3 bar Blue :2.5 to 7 bar Red :6.0 to 17.3 bar Grey :16.0 to 24.4 bar.
Sizes:
- NB 15,20, 25,40, 50 and 80. Std. Accessories: Pr. Gauge, syphon & Gauge cock Pipe Connections: Flanged to - BS10 table - ''''J'''' * & ''''K'''' ANSI - 300'''' * & ''''600'''' DIN - ND - ''''25'''' & * ''''40'''' *Note - 80 NB has these flanges only. Available with IBR certificate Also available for air applications.
Pressure Sensing Pipe:
- The DP 143 valve controls the downstream pressure by sensing the down stream pressure through an external sensing pipe taken from down stream to the pilot valve chamber (10) Fitting of this external pressure sensing pipe is described in the User manual If the external sensing pipe is not provided then the valve controls by internal pressure sensing pipe (19). However the capacity in this case will be reduced.
Installation:
- See User manual supplied with the valve.
How to specify:
- Example 1) 20 Nb Spirax Marshall Dp -143 For Steam Flanged To Bs 10 Table ''''k'''' Ibr (Or Nibr). 2) 40 Nb Spirax Marshall Dp 143 For Air Flangedto Ansi 300 Nibr
