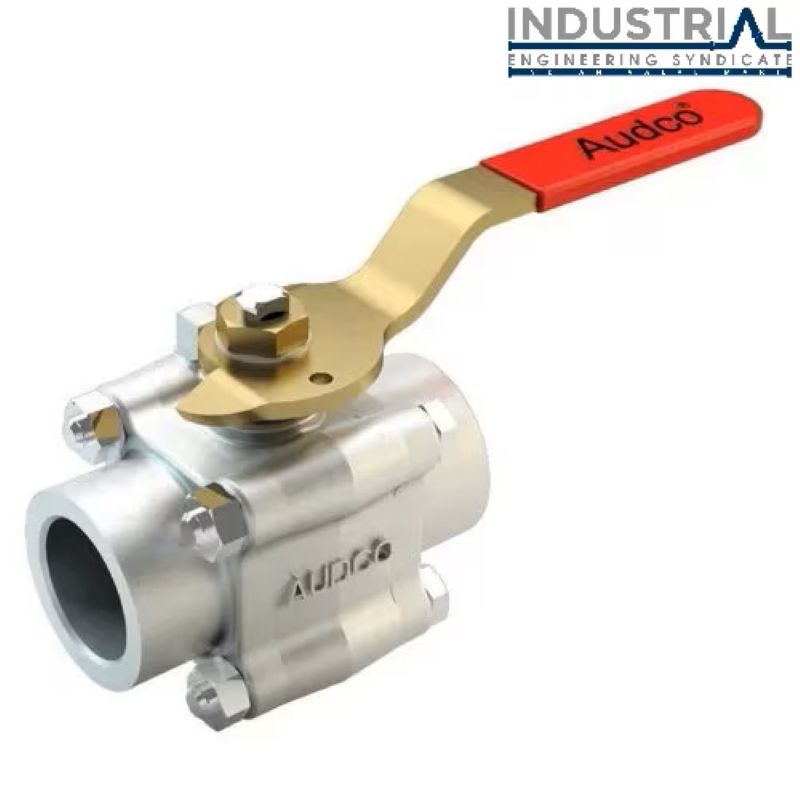

Audco Ball Valves are robust, quarter-turn valves designed for tight shut-off and smooth flow control. Featuring a precision-engineered floating or trunnion-mounted ball, they ensure zero leakage, low torque operation, and long service life. These valves are widely trusted in oil & gas, petrochemical, chemical, water treatment, and power industries for both on-off and throttling applications.
🔹 Key Features
Body Material: Cast Steel, Forged Steel, Stainless Steel, Alloy Steel, or Cast Iron
Ball Type: Floating Ball or Trunnion Mounted Ball
Seat Options: PTFE, Reinforced PTFE (RPTFE), Nylon, PEEK, or Metal Seated
Design Standards: API 6D / API 608 / BS 5351 / ASME B16.34
End Connections: Flanged (ASME/IS), Screwed, Socket Weld, or Butt Weld Ends
Operation: Lever, Gearbox, Pneumatic, or Electric Actuator Operated
Special Feature: Fire-safe design (API 607), Anti-static, and Blow-out proof stem
🔹 Technical Specifications
Size Range: 15 mm (½”) to 1200 mm (48”)
Pressure Rating: Class 150 to Class 2500 / PN 10 – PN 420
Temperature Range: –29°C to 400°C (depending on seat material)
Test Pressure:
Hydrostatic Test: 1.5 × rated pressure
Seat Test: 1.1 × rated pressure
Suitable Media: Oil, Gas, Water, Steam, Petrochemicals, and Corrosive Fluids
🔹 Applications
Oil & Gas Transmission Pipelines
Refineries & Petrochemical Units
Chemical & Fertilizer Industries
Power Generation Plants
Water Supply & Distribution Systems
⚙️ Audco Ball Valves are highly trusted for their leak-proof design, minimal maintenance, and durability, making them an ideal solution for critical flow isolation and control in industrial applications.
