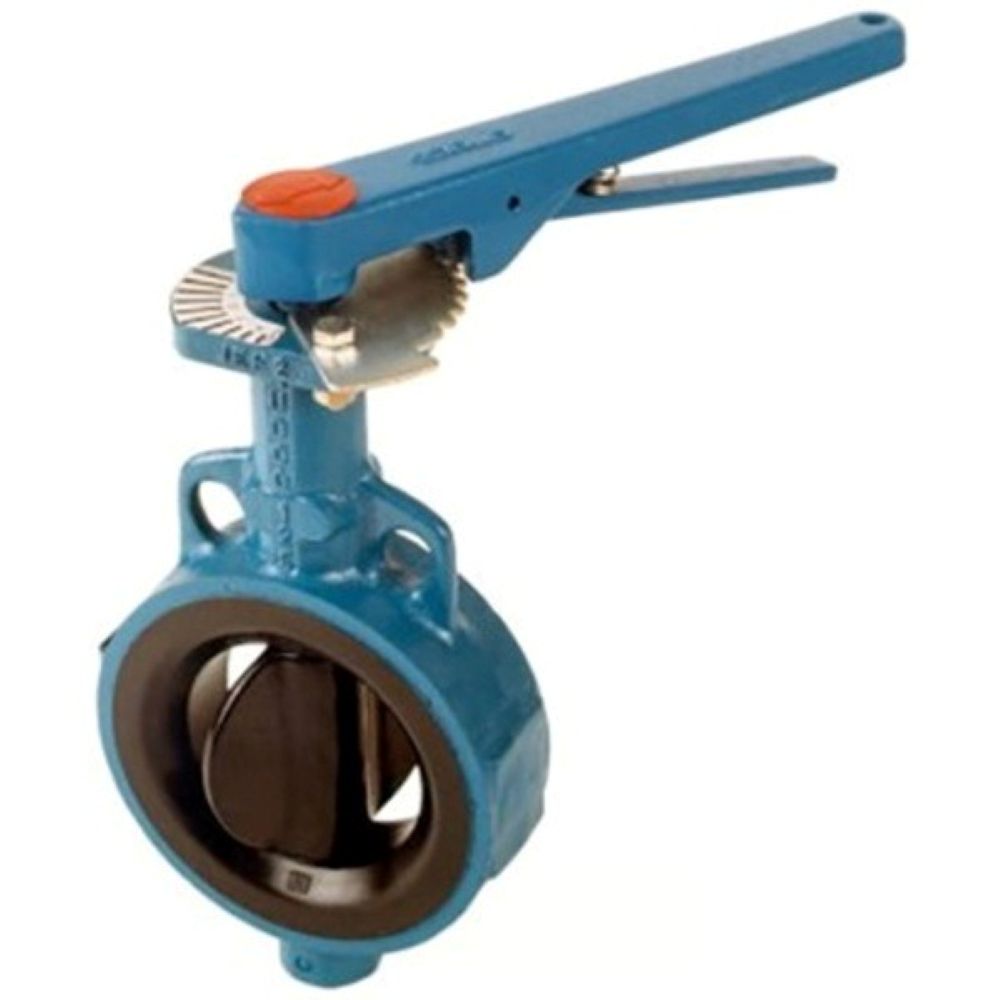

🔹 Audco Butterfly Valve – Product Overview
Audco Butterfly Valves are designed for reliable flow control, shut-off, and throttling applications. With their compact design, lightweight body, and efficient quarter-turn operation, these valves are widely used in water treatment, chemical, oil & gas, HVAC, and process industries. Built with precision, Audco Butterfly Valves deliver tight sealing, long service life, and smooth operation under various pressure and temperature conditions.
🔹 Key Features
-
Body Material: Cast Iron / Ductile Iron / Cast Steel / Stainless Steel
-
Disc Material: CI / DI / SS / Aluminum Bronze
-
Seat / Lining Options: EPDM, Nitrile, Neoprene, PTFE, Viton
-
Design Standards: API 609 / BS 5155 / IS:13095
-
End Connection: Wafer, Lugged, or Double Flanged
-
Operation: Lever, Gear Operated, or Actuator (Electric / Pneumatic)
-
Coating: Epoxy coated for corrosion resistance
🔹 Technical Specifications
-
Size Range: 50 mm (2”) to 2000 mm (80”)
-
Pressure Rating: PN 10 / PN 16 / Class 150
-
Test Pressure:
-
Body Test: 1.5 × PN
-
Seat Test: 1.1 × PN
-
-
Temperature Range: –20°C to 200°C (depending on seat material)
-
Suitable Media: Water, Air, Oil, Steam, Chemicals, Slurry, and Non-corrosive Fluids
🔹 Applications
-
Water Supply & Distribution
-
HVAC & Fire Fighting Systems
-
Oil & Gas Pipelines
-
Chemical & Petrochemical Plants
-
Power & Process Industries
⚙️ Audco Butterfly Valves are highly regarded for their economical design, easy installation, and dependable performance, making them a preferred choice for versatile industrial flow control solutions.
