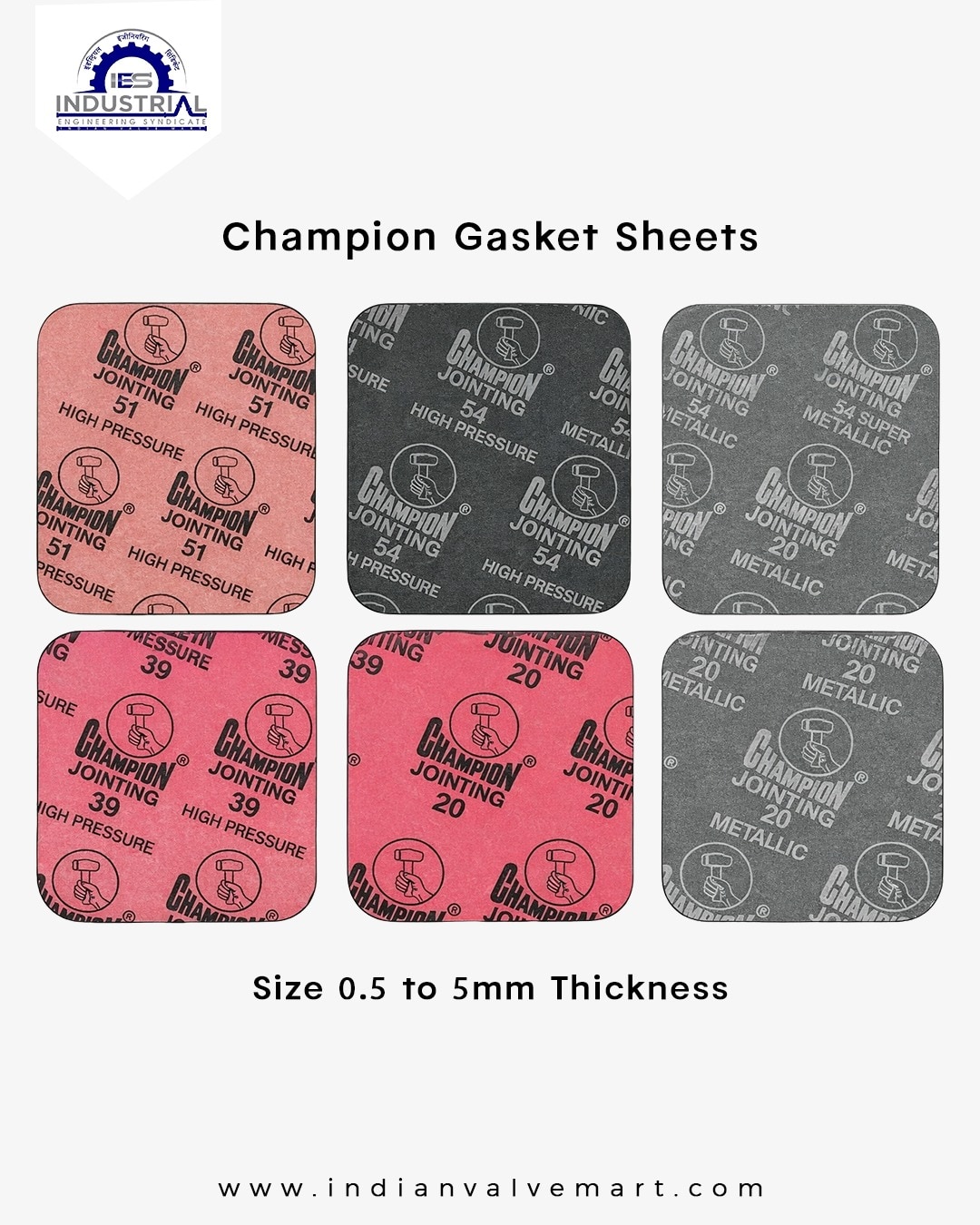

Champion Gasket Sheet is a high-performance industrial sealing material used for making gaskets that prevent leakage of steam, oil, gas, chemicals, water, and other fluids between flanged joints. It is widely used in boilers, pipelines, pumps, compressors, and industrial machinery.
🔧 Types of Champion Gasket Sheets
- CAF (Compressed Asbestos Fibre) Sheets – for steam, oil, and high-pressure applications
- AF (Asbestos Free) Sheets – eco-friendly non-asbestos jointing sheets
- Graphite Gasket Sheets – for high temperature applications
- PTFE / Teflon Sheets – for chemical resistance
- Metallic Reinforced Sheets – with steel wire mesh for higher pressure resistance
🔧 Key Features
- Excellent Sealing Performance – prevents leakage effectively
- Heat & Pressure Resistant – suitable for high-temperature applications
- Oil, Steam & Chemical Resistance
- Available in Metallic & Non-Metallic Types
- Easy to Cut and Fabricate – can be made into custom gaskets
- Long Service Life with reliable sealing performance
📏 Specifications
- Thickness Available:
0.5 mm, 0.75 mm, 1 mm, 1.5 mm, 2 mm, 3 mm, 4 mm, 5 mm - Sheet Sizes:
1500 × 2000 mm
1600 × 2000 mm
1600 × 4000 mm
2000 × 6000 mm - Temperature Range:
Up to approx. 250°C to 550°C+ depending on grade (AF / CAF / Graphite) - Pressure Handling:
Low to high pressure depending on grade and reinforcement
⚙️ Popular Grades
- Champion Style 20 Red – low service conditions
- Champion Style 51 – high pressure industrial service
- Champion Style 54 Super – superheated steam & boiler applications
- Champion Style 55 – compressors and engine applications
- Champion AF 110 / AF 120 – asbestos-free general-purpose sheets
⚙️ Applications
- Boilers and steam lines
- Oil refineries
- Pumps and compressors
- Heat exchangers
- Chemical processing plants
- Diesel generators
- Marine engines
- Petrochemical industries
✅ Advantages
- Leak-proof sealing performance
- Suitable for high pressure & temperature
- Available for different media and applications
- Cost-effective and durable
- Easy maintenance and replacement
⭐ Conclusion
Champion Gasket Sheets are one of the most trusted sealing solutions for industrial applications, offering excellent temperature resistance, pressure handling, and reliable leak prevention for critical systems.
