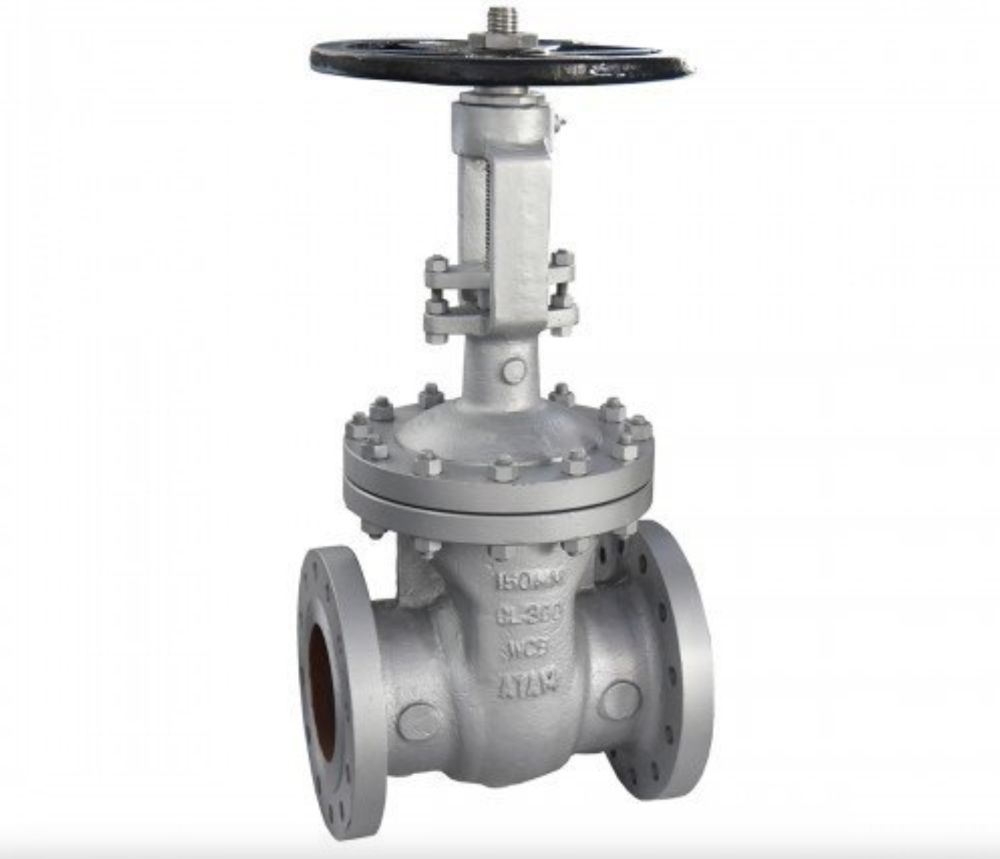

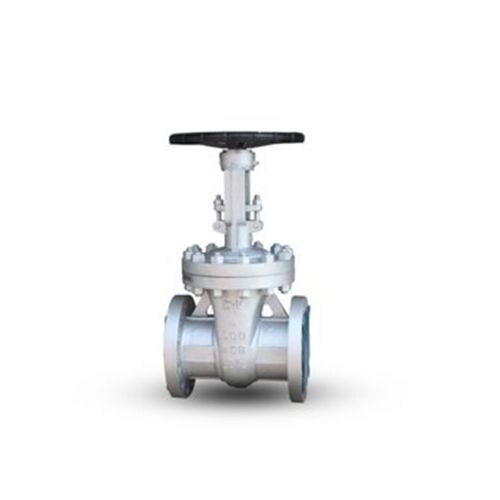

CS Gate Valve – Overview
A Carbon Steel (CS) Gate Valve is an isolation valve designed to completely stop or allow the flow of liquid or gas in pipelines. It works by lifting a gate (wedge) out of the fluid path. CS gate valves are robust, durable, and suitable for high pressure & high temperature applications.
Technical Details
Material: Carbon Steel (commonly ASTM A216 WCB, A105, A350 LF2 for low temperature)
Design Standard: API 600 / API 6D / BS 1414 / ASME B16.34
Size Range: ½” to 48” (DN 15 to DN 1200)
Pressure Ratings: Class 150 – 2500 (PN 10 – PN 420)
Temperature Range: -29°C to 425°C (depending on trim & seat)
End Connections: Flanged (RF, FF, RTJ), Butt Weld (BW), Socket Weld (SW), Threaded (NPT/BSP)
Operation: Handwheel (manual), Gear operated, Electric actuator, Pneumatic actuator, Hydraulic actuator
Construction
Body & Bonnet: Cast carbon steel (A216 WCB) or forged carbon steel
Gate/Wedge: Solid wedge, flexible wedge, or parallel slide
Stem: Rising or Non-rising stem
Seating Surface: 13% Cr, SS 304, SS 316, Stellited hardfacing
Gland Packing: Graphite or PTFE
Bonnet Type: Bolted bonnet, Pressure seal bonnet, Welded bonnet
Features
Full bore design → minimal pressure drop
Bi-directional sealing → flow in both directions
Available in OS&Y (Outside Screw & Yoke) or IS&Y (Inside Screw & Yoke)
Robust for steam, oil & gas, chemical, petrochemical, and power plants
Fire-safe & fugitive emission tested (optional)
Applications
Refineries & Petrochemicals
Oil & Gas pipelines
Power plants (steam lines)
Water treatment plants
Chemical & Fertilizer industries
General industrial fluid handling
Available Variants
Bolted Bonnet Gate Valve (most common)
Pressure Seal Gate Valve (for very high pressure)
Forged Steel Gate Valve (small sizes & high pressure)
Cryogenic Gate Valve (for LNG, low-temperature service)
