Description

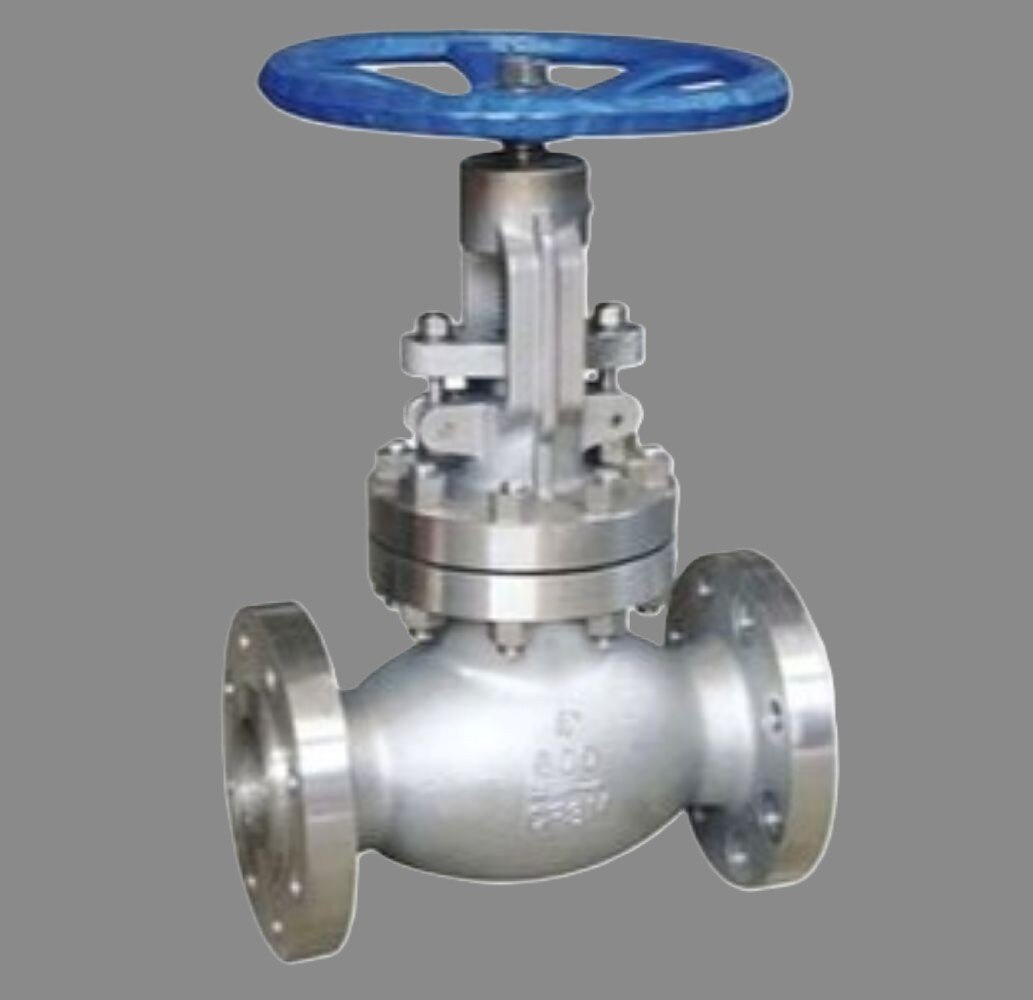

A Carbon Steel Globe Valve is a linear motion valve used to start, stop, and regulate flow in pipelines. Its globe-shaped body and internal disc-seat arrangement allow precise throttling and flow control, making it ideal for systems where flow adjustment and tight shut-off are required.
Design & Construction
Body & Bonnet: Carbon Steel (ASTM A216 WCB / ASTM A105)
Trim (Disc, Seat, Stem): Stainless Steel (SS304 / SS316) or Alloy Steel
Seat Type: Renewable, hard-faced or metal seated
Disc Types:
Plug / Parabolic / Ball type for improved flow control
Bonnet: Bolted Bonnet / Pressure Seal (high-temp applications)
Operation: Handwheel (manual), Gearbox, Pneumatic or Electric Actuator
End Connections:
Flanged (ASME B16.5)
Butt Weld (ASME B16.25)
Screwed (on smaller sizes)
Standards & Specifications
Design Standard: ASME B16.34 / API 623 / BS 1873
Pressure Class: Class 150 / 300 / 600 / higher on request
Testing: API 598
Face-to-Face Dimensions: ASME B16.10
Key Features
Precise throttling and flow regulation
Strong shut-off performance
Suitable for high pressure & temperature service
Renewable seats and trims for long service life
Smooth and stable operation
Can be manual or automated for remote control
Typical Applications
Steam & Condensate systems
Oil & Gas processing plants
Chemical & Petrochemical industries
Power Generation & utility lines
Water & wastewater systems
HVAC and industrial process piping
Why Use a CS Globe Valve?
Excellent control accuracy compared to gate valves
Suitable for frequent operation and modulation
Handles corrosive and high-temperature media when correctly trimmed
