Description

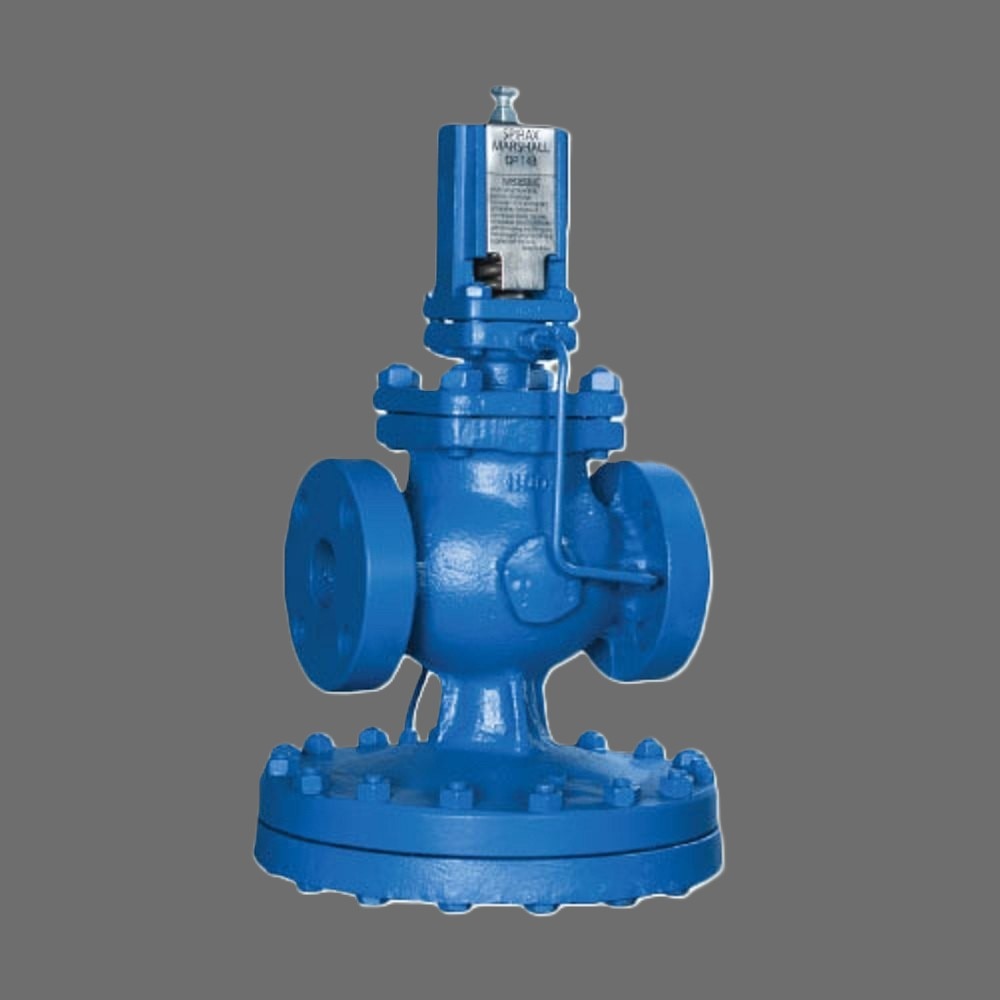

A Carbon Steel Pressure Reducing Valve (PRV) is an automatic valve designed to reduce and regulate high inlet pressure to a desired lower outlet pressure. It maintains a preset downstream pressure regardless of fluctuations on the upstream side, ensuring safe and stable operation of piping systems, equipment, and end-use appliances.
Construction & Materials
Body & Bonnet: Carbon Steel (ASTM A216 WCB / A105)
Trim (Disc, Seat, Stem): Stainless Steel / Alloy Steel
Control Spring & Diaphragm: Stainless Steel / Fabric-Reinforced Elastomer
Seals & Gaskets: Buna-N / EPDM / PTFE (service dependent)
Operating Principle
Works automatically using a diaphragm, spring, and pilot arrangement:
Upstream high pressure pushes on the diaphragm.
The internal spring tension is set to the desired outlet pressure.
The valve modulates opening or closing to maintain stable downstream pressure.
Standards & Compliance
API 526 / API 527 (where applicable)
ASME B16.34 (valve dimensions & ratings)
ANSI / BS / ISO compatible designs
Key Features
Automatic pressure regulation without external power
Smooth response to pressure fluctuations
Accurate downstream pressure control
Robust carbon steel construction for high temperature & pressure
Long service life with minimal maintenance
Optional pilot-assisted or direct-acting configurations
Typical Pressure Class & Ratings
Pressure Classes: Class 150 to Class 600 (or custom)
Pressure Range: From high inlet (e.g., 250–3000 psi) to controlled lower outlet
Temperature Range: Suitable for hot water, steam, air, gas, oil systems
Applications
Steam & Condensate Lines
Compressed Air Systems
Hydraulic & Process Control Plants
Water & Firefighting Systems
Oil & Gas Facilities
Chemical & Petrochemical Industries
Why Use a CS Pressure Reducing Valve?
Protects downstream equipment from overpressure damage
Improves energy efficiency
Ensures consistent process performance
Reduces wear and tear on valves and instruments
