Description

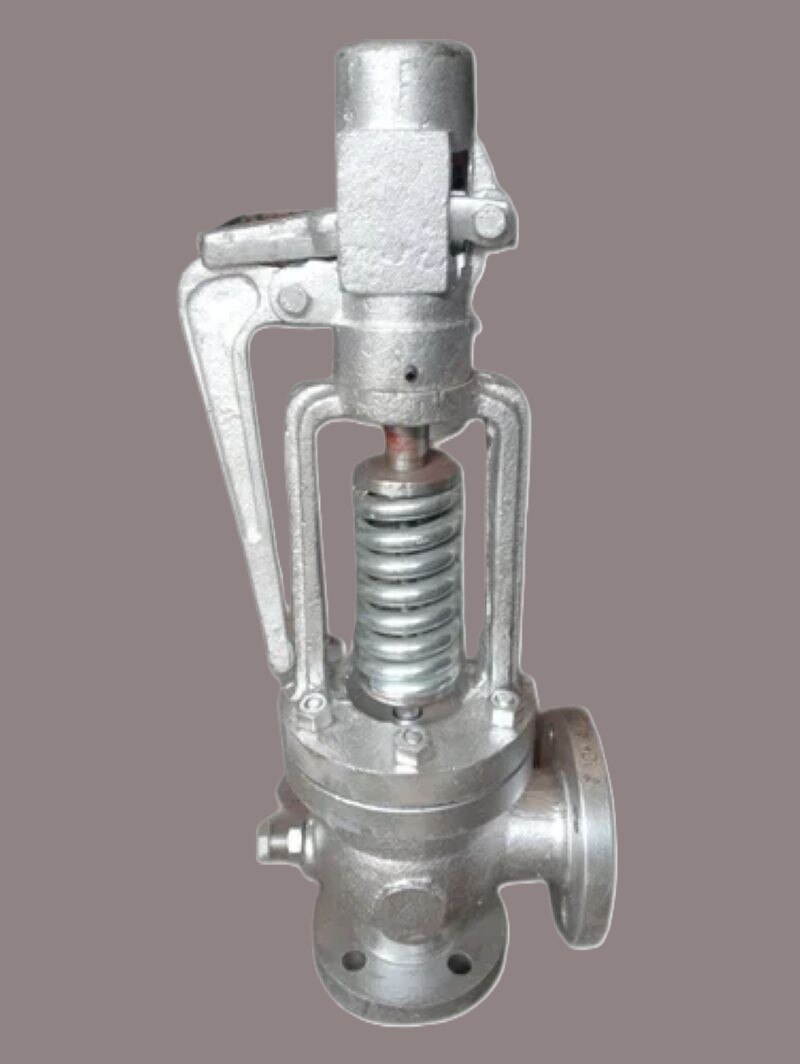

A Carbon Steel Safety Valve is a mechanical device designed to automatically release pressure from a vessel, pipeline, or equipment when the internal pressure exceeds a preset limit. It ensures protection of equipment and personnel by preventing over-pressure conditions in steam, gas, liquid, or air systems.
Construction & Materials
-
Body / Bonnet: Carbon Steel (ASTM A216 WCB)
-
Trim (Disc/Seat/Stem): Stainless Steel / Hardened Steel / Stellite (depending on service)
-
Spring Material: Alloy Steel / Stainless Steel
-
Gasket / Seal: Graphite / PTFE / Spiral Wound (as required)
Design Standards
-
ASME Section I / VIII / API 526 / API 527
-
ASME B16.34 (valve dimensions & rating conformity)
-
ANSI / BS / ISO compliant versions available
Key Features
-
Set Pressure Range: Custom-set per system design (factory pre-set as required)
-
Pressure Class: Typically Class 150 to Class 2500 (industry dependent)
-
Outlet Connection: Flanged (ASME B16.5) / Screwed / Nozzle
-
Lift Type Options:
-
Full Lift (fast opening, higher capacity)
-
Partial Lift (smoother performance for some services)
-
-
Operation: Spring-loaded with lever / weight / pilot-assisted designs
Performance & Capabilities
-
Rapid response to over-pressure
-
Accurate set pressure and reseating
-
Low leakage & reliable reseal
-
Suitable for repeated duty
-
Handles steam, gas, and liquid applications
Typical Applications
-
Steam Boilers & Steam Lines
-
Pressure Vessels & Heat Exchangers
-
Compressors & Air Receivers
-
Chemical & Petrochemical Plants
-
Refineries & Power Stations
-
Process & Utility Piping
Why Use a CS Safety Valve?
-
Protects equipment integrity by preventing over-pressure failure
-
Offers fast acting safety response
-
Built for high temperature and high pressure environments
-
Carbon steel gives excellent mechanical strength and durability
