CS Seamless Elbow Manufacturer

1. Description

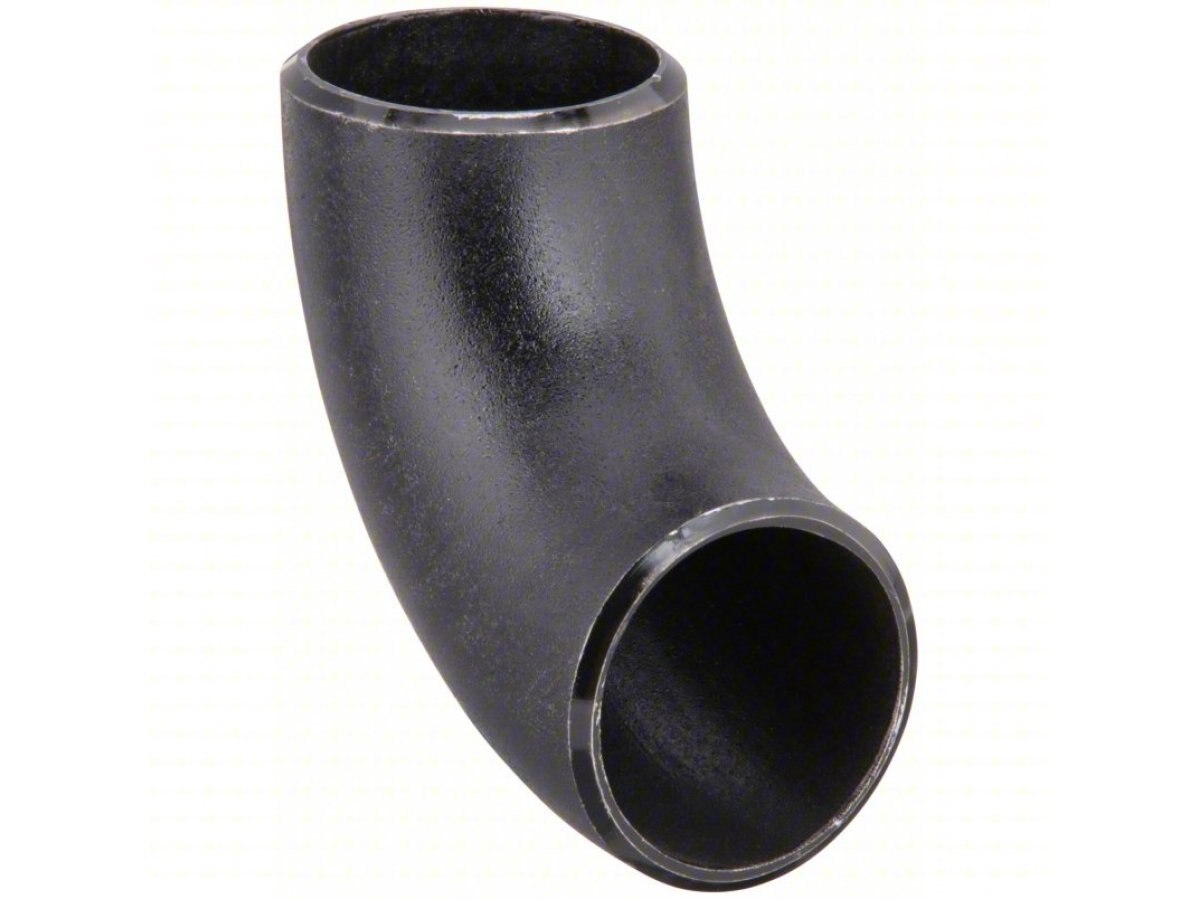

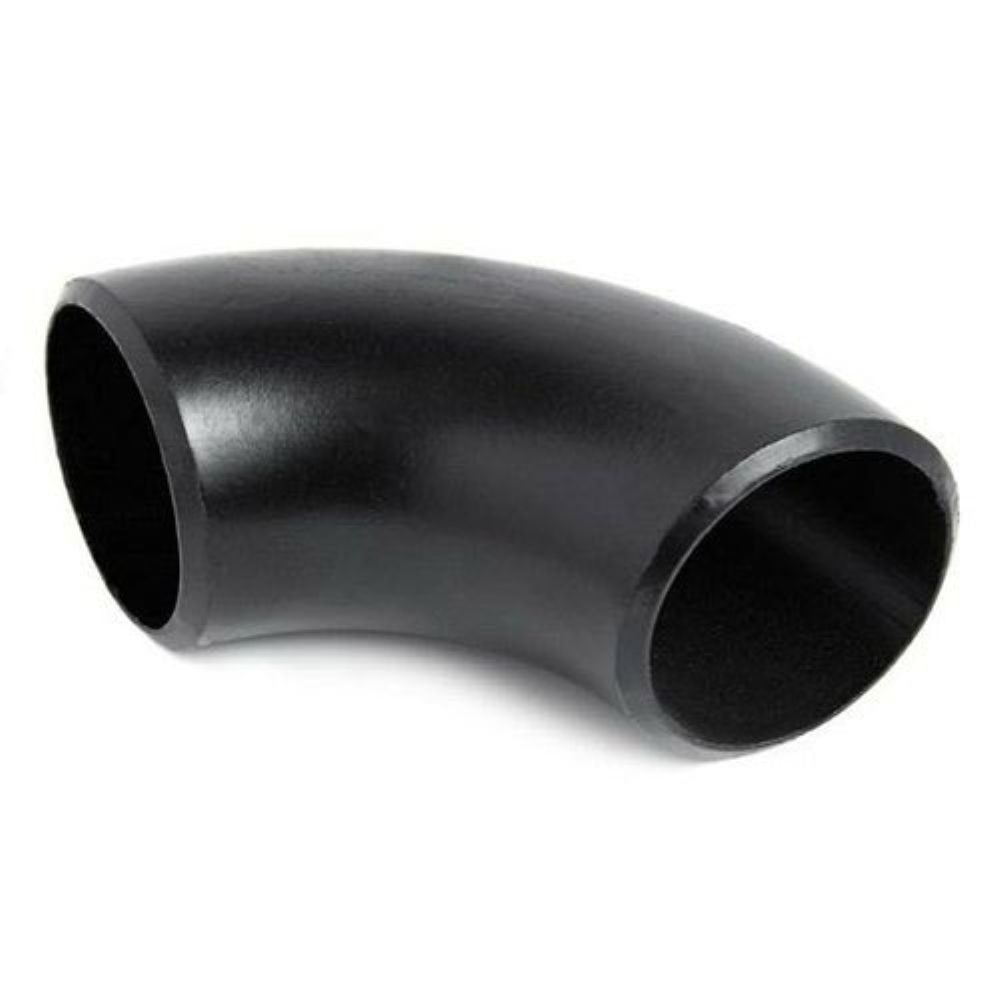

CS Seamless Elbows are pipe fittings used to change the direction of flow in pipelines, commonly at 90° or 45° angles. Being seamless, they are made from a single piece of carbon steel, providing high strength, leak resistance, and durability compared to welded elbows.

2. Material

• Carbon Steel (CS)

• Standards: ASTM A234, ASTM A105, IS 1239

• Features: High tensile strength, good wear resistance, suitable for high-temperature and high-pressure applications.

3. Types

1. By Angle:

   • 90° Elbow

   • 45° Elbow

   • 180° Return Elbow

2. By End Connection:

   • Butt Weld End (BWE)

   • Socket Weld End (SWE)

4. Sizes & Dimensions

• Outer diameter: 15 mm to 600 mm (½” to 24”)

• Wall thickness: Schedule 10, 20, 40, 80 or per requirement

• Standard: ASME B16.9

5. Pressure Rating

• Suitable for medium to high-pressure applications

• Depends on pipe schedule, diameter, and temperature

6. Applications

• Oil and gas pipelines

• Steam and water pipelines

• Chemical and petrochemical industries

• Power plants and refineries

7. Features

• Seamless construction ensures leak-proof performance

• High strength and durability

• Corrosion-resistant when coated or painted

• Easy installation in piping systems
