GI Long Bend Manufacturer In Narela Industrial Area

Description

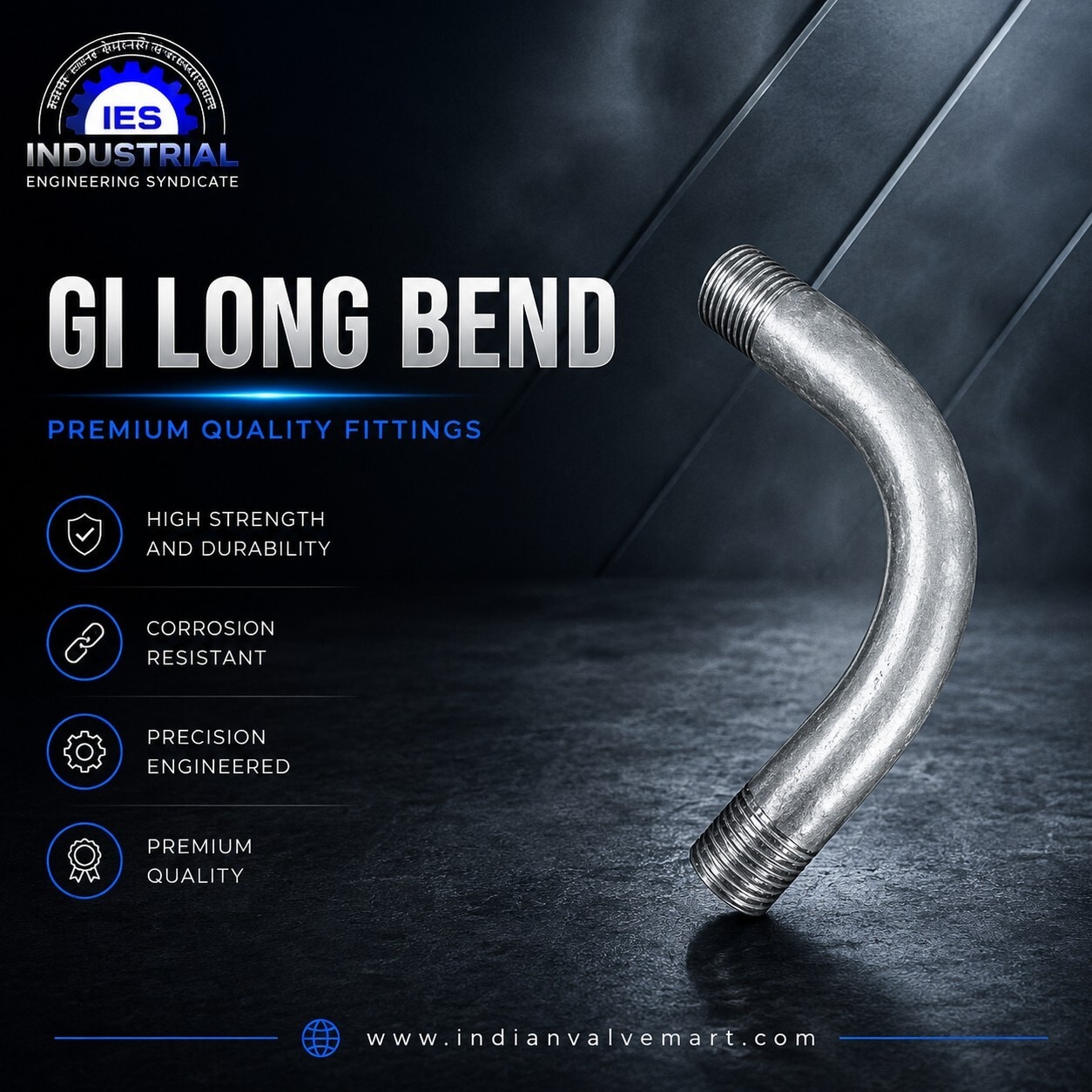

A GI Long Bend is a galvanized pipe fitting used to change the direction of flow in a piping system with a long radius curvature. The long radius design ensures smooth fluid flow with minimum pressure loss and reduced turbulence. GI long bends are widely used in water supply systems, plumbing, irrigation, fire fighting, and industrial utility pipelines where efficient flow is important.

Material & Construction

• Material: Galvanized Iron / Mild Steel with Zinc Coating
• Coating Type: Hot-Dip Galvanized Finish
• Manufacturing Type: Cast / Fabricated / Forged
• Surface Finish: Corrosion-resistant galvanized coating

Types Available

• 90° GI Long Bend
• 45° GI Long Bend
• 180° Return Bend

Design & Radius

• Long Radius (LR) Bend:
  Radius is approximately 1.5D (1.5 times the pipe diameter), allowing smoother flow and lower friction loss.

End Connections

• Screwed / Threaded BSPT
• Socket Type
• Welded Type (industrial applications)

Standards & Specifications

• IS 1879 – Malleable Iron Pipe Fittings
• BS / DIN / ASTM Standards available

Pressure Rating

• Medium Duty
• Heavy Duty

Size Range

• From ½” (15 NB) to 4” (100 NB) commonly available

Key Features

✔ Smooth flow with reduced pressure drop
✔ Excellent corrosion and rust resistance
✔ Strong and durable construction
✔ Easy installation and maintenance
✔ Long service life
✔ Suitable for indoor and outdoor applications

Applications

• Domestic Water Supply Systems
• Plumbing & Sanitary Pipelines
• Irrigation & Agriculture Lines
• Fire Fighting Systems
• Utility & Industrial Water Lines
• HVAC & Air Piping Systems

Advantages

• Better flow efficiency compared to short bends
• Reduced turbulence and vibration
• Rust-resistant galvanized finish
• Cost-effective and durable solution
• Easy replacement and maintenance
