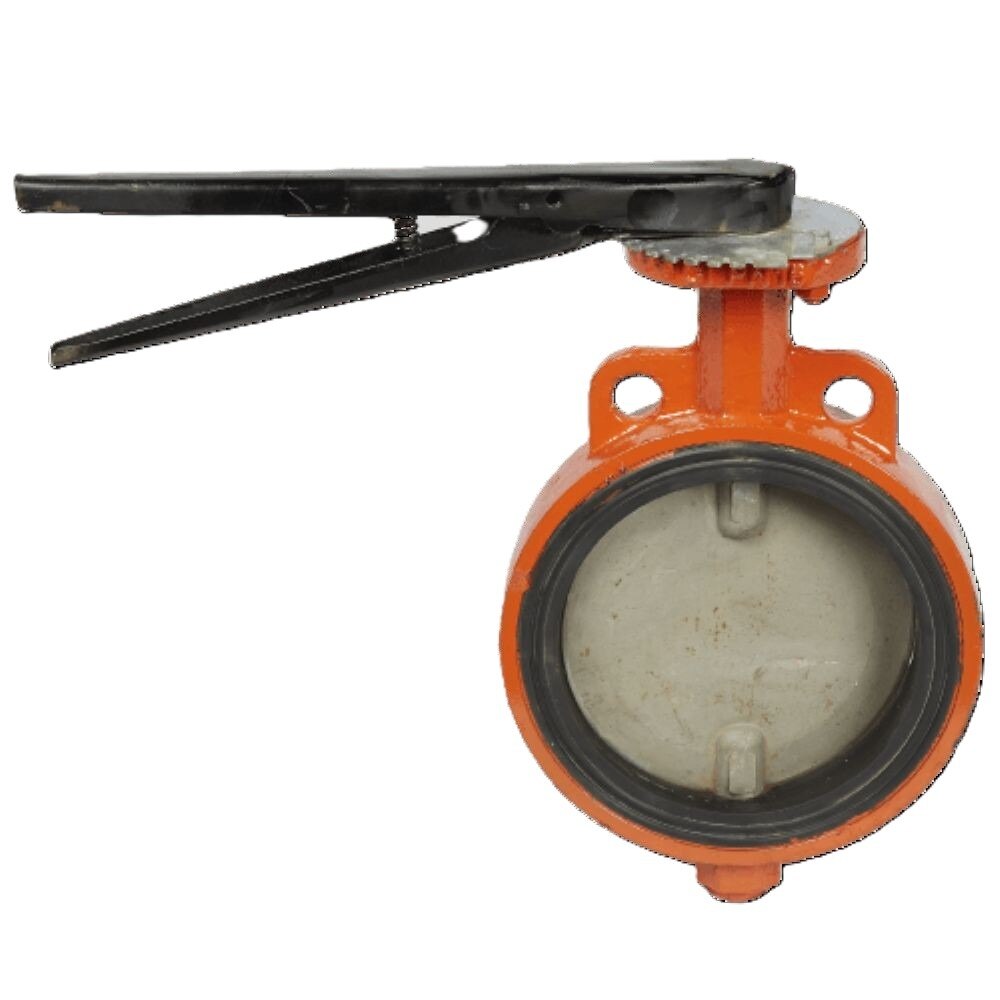

🔹 Kirloskar Butterfly Valve – Product Overview
Kirloskar Butterfly Valves are designed for efficient flow regulation and shut-off in pipelines, offering a compact, lightweight, and cost-effective solution. With their quarter-turn operation, they provide smooth control and ease of use, making them suitable for water supply, HVAC, irrigation, sewage, chemical, and industrial applications.
🔹 Key Features
-
Body Material: Cast Iron (CI) / Ductile Iron (DI) / Cast Steel (CS)
-
Disc Material: CI / DI / Stainless Steel / Bronze (as per application)
-
Seat: Nitrile / EPDM / Neoprene / PTFE
-
Design Standard: IS:13095 / API 609
-
End Connection: Wafer / Lug Type / Double Flanged
-
Operation: Lever, Gear Operated, Pneumatic or Electric Actuator
-
Coating: Fusion Bonded Epoxy Coated for corrosion resistance
🔹 Technical Specifications
-
Size Range: 50 mm to 2000 mm
-
Pressure Rating: PN 1.0 / PN 1.6 / Class 150
-
Test Pressure:
-
Body Test: 1.5 × PN
-
Seat Test: 1.1 × PN
-
-
Suitable Media: Water, Air, Oil, Sewage, Slurry, Chemical fluids
-
Temperature Range: Up to 120°C (rubber seat) / 200°C (PTFE seat)
🔹 Applications
-
Water Distribution & Treatment Plants
-
HVAC & Fire Fighting Systems
-
Irrigation & Sewage Systems
-
Oil & Gas Pipelines
-
Chemical & Process Industries
⚙️ Kirloskar Butterfly Valves are trusted for their easy operation, long service life, and reliable performance, making them a preferred choice in multiple industries.
