Description

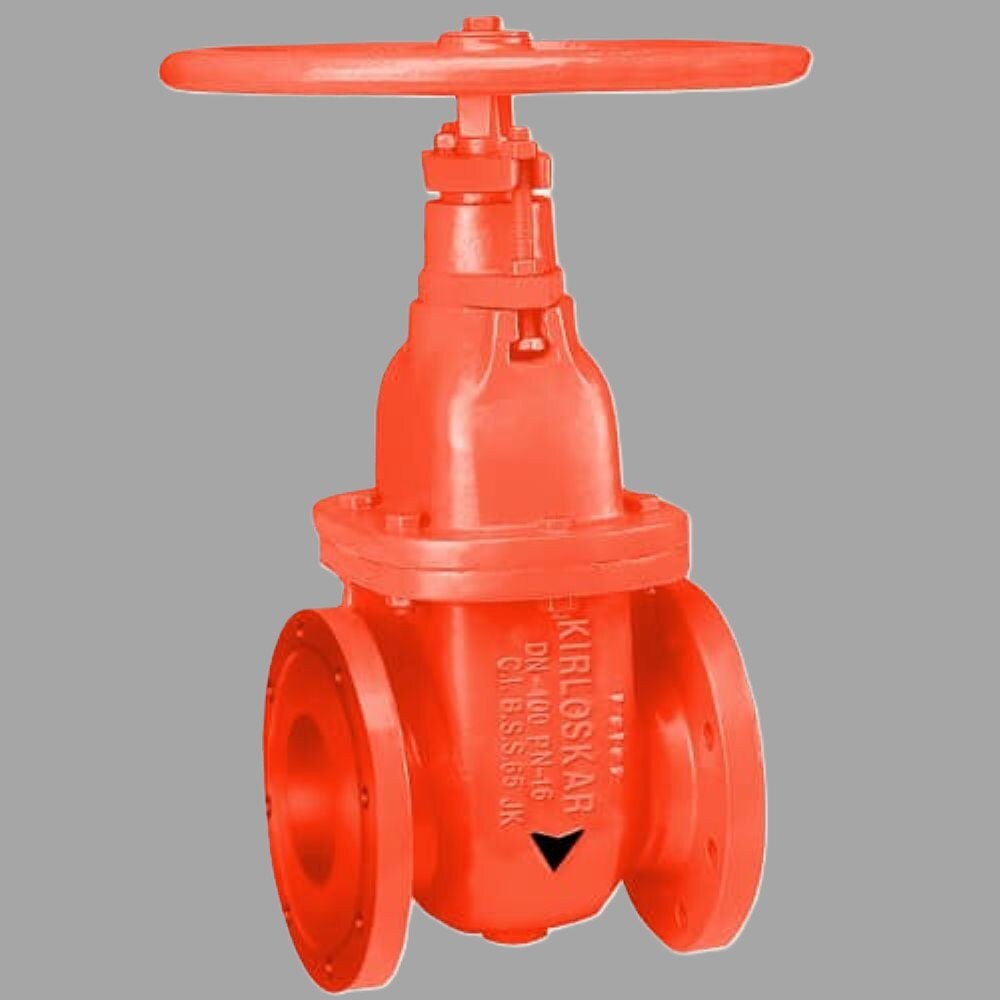

A CI sluice valve (also known as a gate valve) is a linear motion, full-bore isolation valve used to start or stop flow in pipelines. It provides tight shut-off with minimal pressure drop when fully open, making it ideal for water, effluent, and industrial services where isolation of flow is required.
A CI sluice valve (also known as a gate valve) is a linear motion, full-bore isolation valve used to start or stop flow in pipelines. It provides tight shut-off with minimal pressure drop when fully open, making it ideal for water, effluent, and industrial services where isolation of flow is required.
Key Specifications
Body & Materials
Body / Wedge / Dome: Cast Iron with Leaded Tin Bronze rings (IS:318 Gr. LTB-2)
Spindle/Stem: Stainless Steel (IS:6603 Gr. 12Cr12)
Stem Nut: Leaded Tin Bronze (IS:318 Gr. LTB-2)
Sizes typically range from 40 mm up to 1800 mm.
Body / Wedge / Dome: Cast Iron with Leaded Tin Bronze rings (IS:318 Gr. LTB-2)
Spindle/Stem: Stainless Steel (IS:6603 Gr. 12Cr12)
Stem Nut: Leaded Tin Bronze (IS:318 Gr. LTB-2)
Sizes typically range from 40 mm up to 1800 mm.
Pressure & Temperature
Pressure Rating: PN 1.0 & PN 1.6 as per IS:14846
Can be designed for higher temperature services up to ~180 °C at limited pressure conditions.
Pressure Rating: PN 1.0 & PN 1.6 as per IS:14846
Can be designed for higher temperature services up to ~180 °C at limited pressure conditions.
Operation Types
Rising Stem (RS) – visual indication of valve position
Non-Rising Stem (NRS) – compact for confined spaces
Operated manually via handwheel, or with gearbox / electric actuator / pneumatic actuator for larger sizes.
Rising Stem (RS) – visual indication of valve position
Non-Rising Stem (NRS) – compact for confined spaces
Operated manually via handwheel, or with gearbox / electric actuator / pneumatic actuator for larger sizes.
Features
Rigid and sturdy construction for durability
Interchangeable components for easy maintenance
Low friction stem threads ensure smooth opening/closing
Leak-tight sealing for long service life
Low pressure loss across the valve when open
Accessories available: position indicator, gear/actuator arrangements, locking/chain padlock, bypass, limit switches.
Rigid and sturdy construction for durability
Interchangeable components for easy maintenance
Low friction stem threads ensure smooth opening/closing
Leak-tight sealing for long service life
Low pressure loss across the valve when open
Accessories available: position indicator, gear/actuator arrangements, locking/chain padlock, bypass, limit switches.
Applications
Kirloskar CI sluice valves are widely used for isolation duty (full open / full close) in:
Municipal waterworks & distribution lines
Irrigation authorities & farm supply systems
Effluent / sewage treatment plants
Firefighting systems
Power plants & industrial utilities
Clear water with turbidity up to 5000 ppm (up to ~45 °C) and services within IS:14846 conditions.
Kirloskar CI sluice valves are widely used for isolation duty (full open / full close) in:
Municipal waterworks & distribution lines
Irrigation authorities & farm supply systems
Effluent / sewage treatment plants
Firefighting systems
Power plants & industrial utilities
Clear water with turbidity up to 5000 ppm (up to ~45 °C) and services within IS:14846 conditions.
Why Use Kirloskar CI Sluice Valves?
✔ Reliable on/off isolation with minimal pressure drop
✔ Durable cast iron construction for long life
✔ Suitable for manual or automated operation
✔ Strong performance in water and utility lines
✔ Reliable on/off isolation with minimal pressure drop
✔ Durable cast iron construction for long life
✔ Suitable for manual or automated operation
✔ Strong performance in water and utility lines
