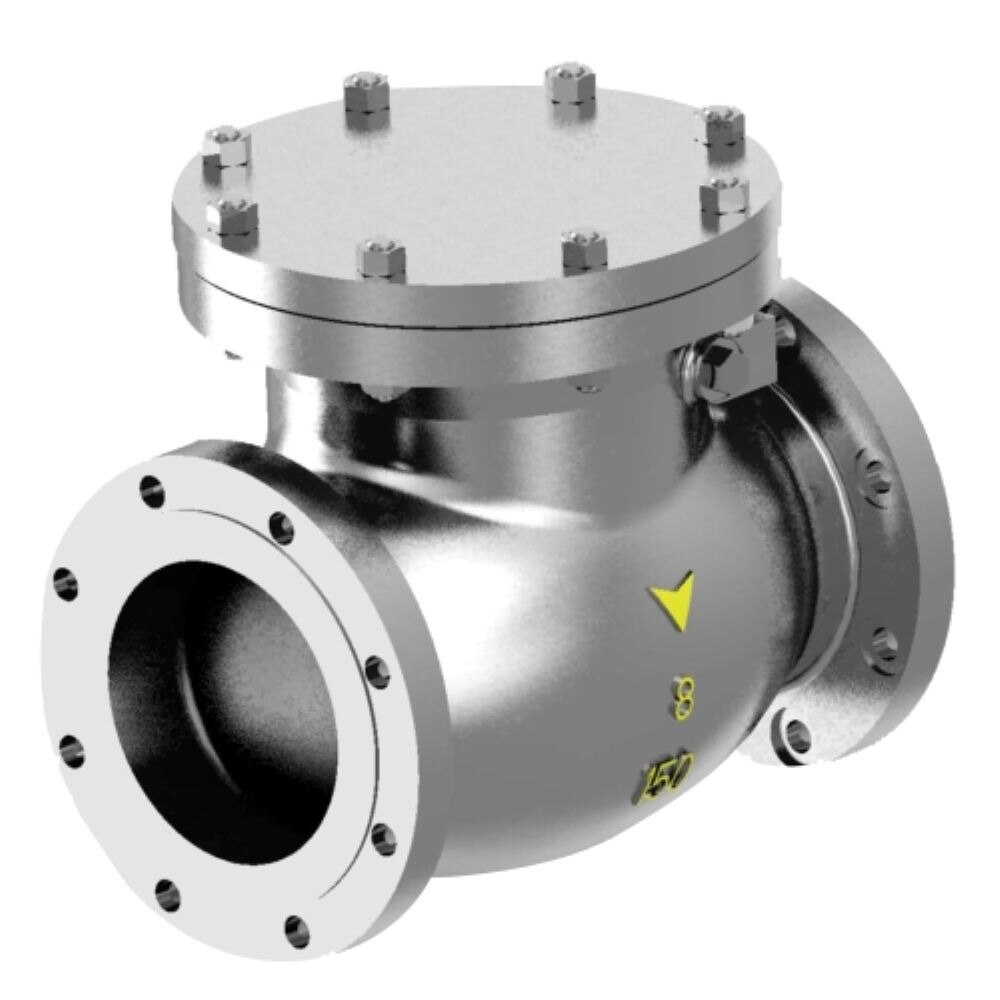

🔹 Kirloskar CI Swing Check Valve – Product Overview
Kirloskar CI Swing Check Valves are designed to allow unidirectional flow and automatically prevent backflow in pipelines. They are widely used in water supply, sewage, irrigation, and industrial applications, offering reliable sealing and smooth operation with minimal maintenance.
🔹 Key Features
-
Body Material: Cast Iron (CI) – IS: 210 Gr. FG 200
-
Design Standard: IS:5312 (Part I)
-
Type: Swing Type, Single Disc
-
End Connection: Flanged Ends as per IS:1538
-
Coating: Fusion Bonded Epoxy Coated for corrosion resistance
-
Seating: Renewable / Rubber Lined Seat for tight sealing
-
Disc: Hinged, ensuring automatic closure against reverse flow
🔹 Technical Specifications
-
Size Range: 50 mm to 1200 mm
-
Pressure Rating: PN 1.0 / PN 1.6
-
Test Pressure:
-
Body Test: 1.5 × PN
-
Seat Test: 1.1 × PN
-
-
Suitable Media: Water, Sewage, Non-corrosive Liquids
-
Temperature Range: Up to 45°C (suitable for cold water service)
🔹 Applications
-
Water Supply Pipelines
-
Irrigation Networks
-
Sewage & Drainage Systems
-
Industrial Utilities
-
Fire Fighting Systems
⚙️ Kirloskar CI Swing Check Valves are highly preferred for their rugged design, leak-proof sealing, and long service life, ensuring smooth and safe pipeline operations.
