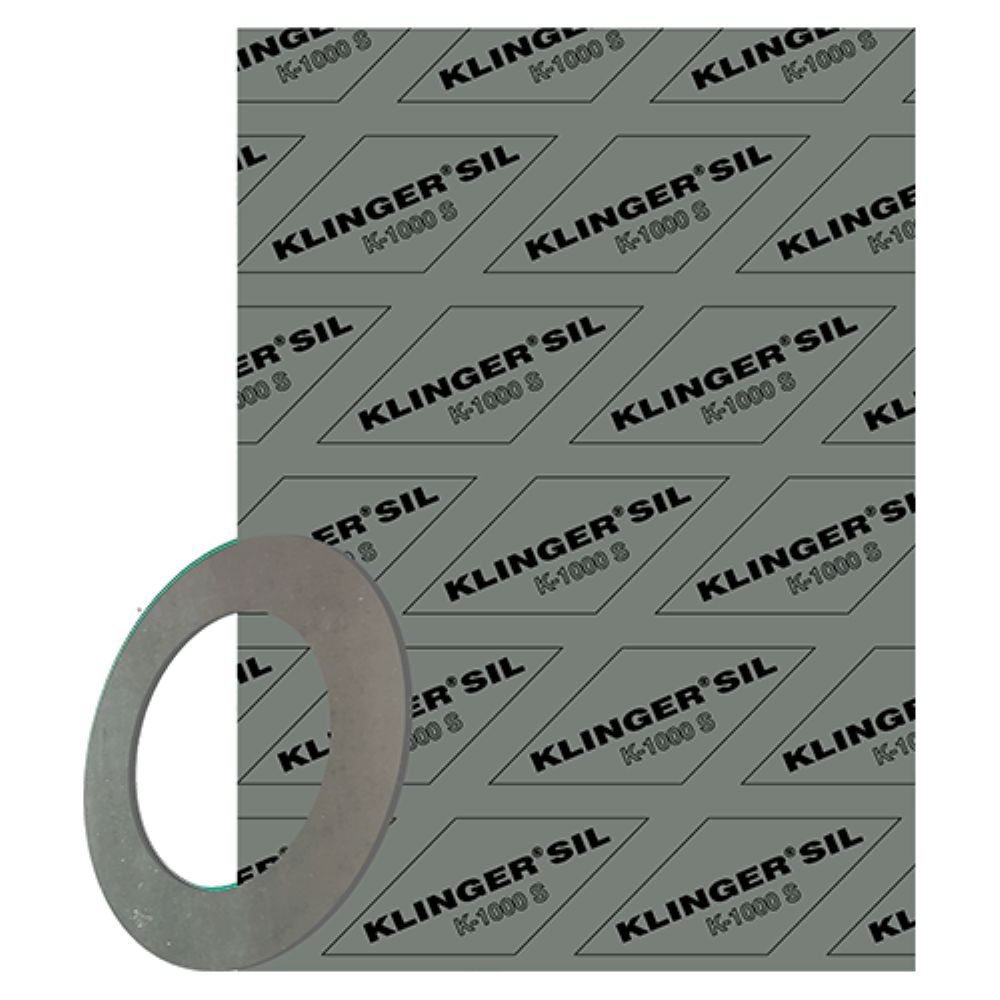

KLINGER K1000, also known as KLINGERSIL K-1000, is a high-performance gasket sheet material designed for demanding industrial applications. It is a non-asbestos, compressed fibre gasket sheet reinforced with metallic inserts, offering excellent sealing capabilities under high pressure and temperature conditions.
🔧 Key Specifications
-
Material Composition: Aramid and mineral fibres bonded with nitrile rubber (NBR), reinforced with stainless steel wire mesh.
-
Temperature Range: Suitable for continuous service temperatures up to +550°C and short-term peaks up to +650°C.
-
Pressure Range: Effective in sealing applications up to 100 bar, depending on thickness and application specifics.
-
Sheet Dimensions: Standard sheets are available in sizes such as 2000 mm x 1500 mm, with thicknesses ranging from 0.8 mm to 6.4 mm.
-
Coating: Typically features KLINGER’s 3xA anti-stick coating, enhancing ease of installation and removal.
🛠️ Applications
KLINGER K1000 is ideal for sealing:
-
Flanges and joints in high-temperature systems.
-
Steam lines, boilers, and heat exchangers.
-
Chemical processing equipment.
-
Hydraulic systems and pumps.
-
Automotive and industrial engines.
📦 Packaging Options
KLINGER K1000 gasket sheets are available in various thicknesses and sizes to suit different application needs. For instance, a 2 mm thick sheet measuring 1.5 m x 2 m is commonly available.
🏭 Manufacturers & Suppliers
-
KLINGER India: Offers a range of gasket materials, including KLINGER K1000.
-
Dynaflex Asia: Provides KLINGERSIL K-1000 gasket materials in various sizes and thicknesses.
-
Alibaba: Features multiple suppliers offering KLINGERSIL K-1000 gasket materials with customizable sizes.
