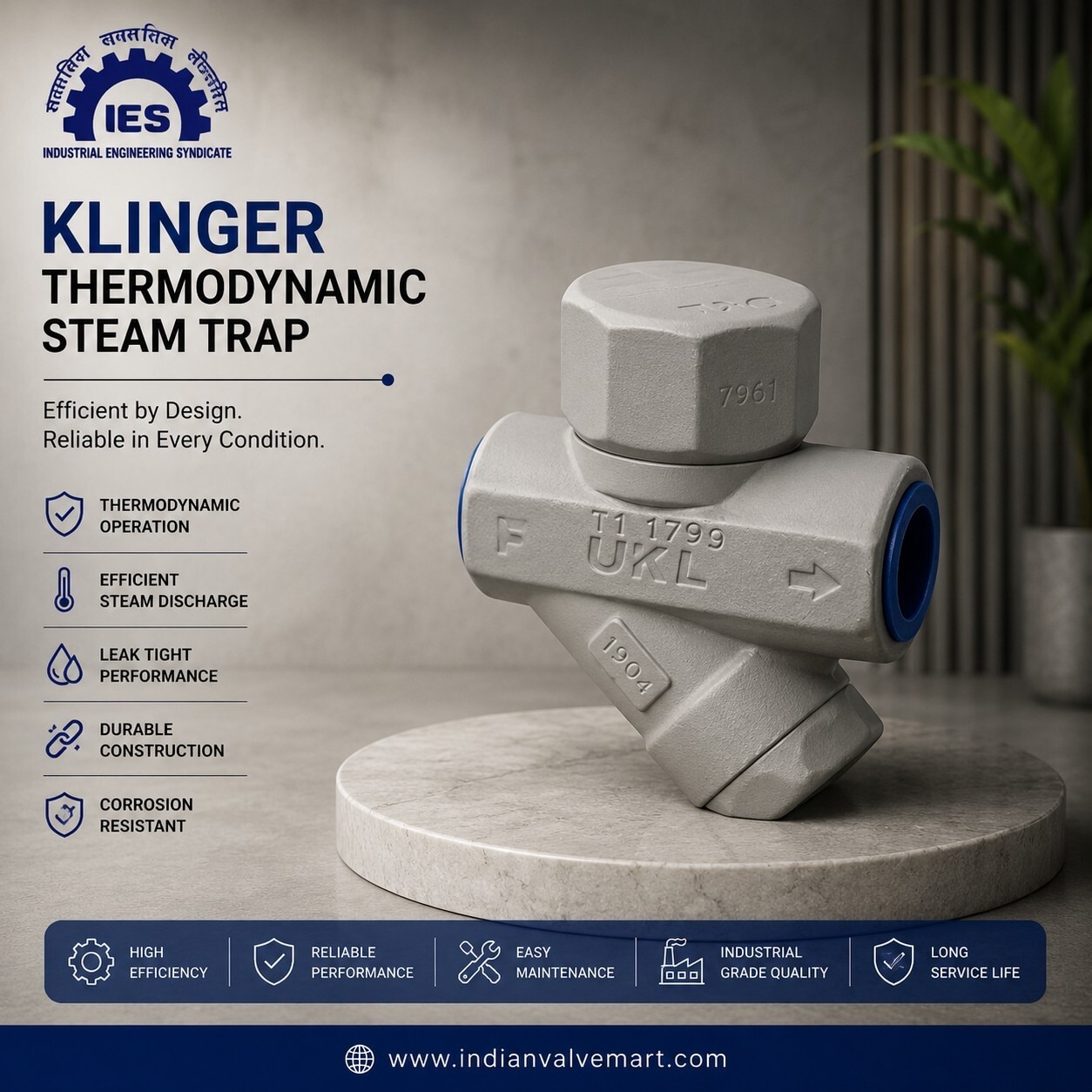

Klinger Thermodynamic Steam Trap Stockiest In Mayapuri Industrial Area

Description

A Klinger Thermodynamic Steam Trap is an automatic device designed to discharge condensate, air, and non-condensable gases from steam systems without allowing live steam to escape. It operates on the thermodynamic principle using pressure and velocity differences between steam and condensate. These traps are compact, durable, and highly efficient for high-pressure steam applications.

Construction & Materials

• Body Material: Stainless Steel / Forged Steel / Carbon Steel
• Disc: Hardened Stainless Steel
• Seat: Precision-machined hardened seat
• Strainer: Built-in stainless steel strainer for dirt protection
• Cap: Heat-resistant forged cap design

Working Principle

• Condensate enters the trap and lifts the disc, allowing discharge.
• When steam reaches the trap, high velocity and flash steam pressure force the disc downward to close the valve.
• As pressure drops, the disc opens again, repeating the cycle automatically.

Standards & Specifications

• Design Standard: ASME / DIN / BS Standards
• End Connections:
  • Screwed / Threaded BSPT or NPT
  • Socket Weld
  • Flanged End

Pressure Rating

• Suitable for low to very high-pressure steam systems
• Available up to Class 600 / PN40 and above

Temperature Range

• Suitable for temperatures up to approximately 425°C

Size Range

• Commonly available from 15 mm to 25 mm

Key Features

✔ Compact and lightweight design
✔ Excellent performance in high-pressure steam lines
✔ Automatic condensate discharge
✔ Low steam loss and high energy efficiency
✔ Durable hardened stainless steel internals
✔ Easy maintenance and long service life
✔ Built-in strainer prevents dirt damage

Applications

• Steam Main Drip Lines
• Boiler Steam Distribution Systems
• Process Industries
• Chemical & Petrochemical Plants
• Textile & Food Industries
• Power Plants
• Steam Tracing Systems

Advantages

• High efficiency with minimum steam loss
• Suitable for superheated steam applications
• Operates under wide pressure range
• Resistant to water hammer and vibration
• Simple construction with only one moving part
