Description:

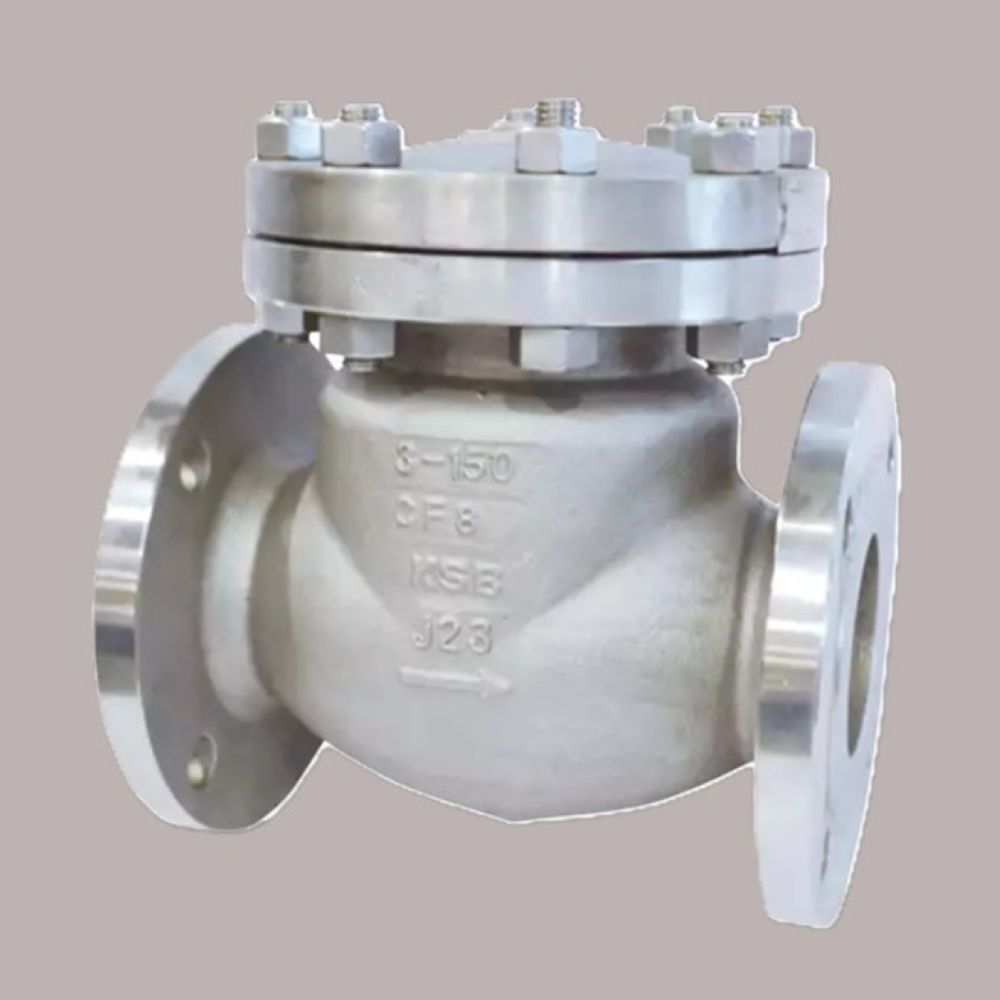

KSB Cast Steel Swing Check Valves are designed to prevent backflow in pipelines by allowing flow in one direction and automatically closing when flow reverses. Built from high-quality cast steel, these valves ensure durability, reliability, and tight sealing even under high pressure and temperature. The swing-type disc provides low pressure drop and smooth operation, making them ideal for a wide range of industrial applications.
Design & Construction:
-
Body Material: ASTM A216 Gr. WCB (Carbon Steel)
-
Disc Material: 13% Cr / SS 304 / SS 316 / Hard-faced
-
Seat: Renewable / Integral / Hard-faced
-
Bonnet Type: Bolted Cover / Pressure Seal Type
-
Hinge Pin: Stainless Steel / Alloy Steel
-
End Connections: Flanged (ASME B16.5) / Butt Weld (ASME B16.25)
Standards & Specifications:
-
Design: BS 1868 / API 6D / ASME B16.34
-
Pressure Rating: Class 150 / 300 / 600
-
Testing: API 598
Features:
-
Automatic non-return operation
-
Low pressure drop with full flow passage
-
Leak-tight sealing and corrosion resistance
-
Heavy-duty construction for long life
-
Easy maintenance and reliable performance
Applications:
-
Oil & Gas Pipelines
-
Refineries & Petrochemical Plants
-
Power & Process Industries
-
Steam, Water & Air Lines
-
Chemical & Fertilizer Industries
