Description

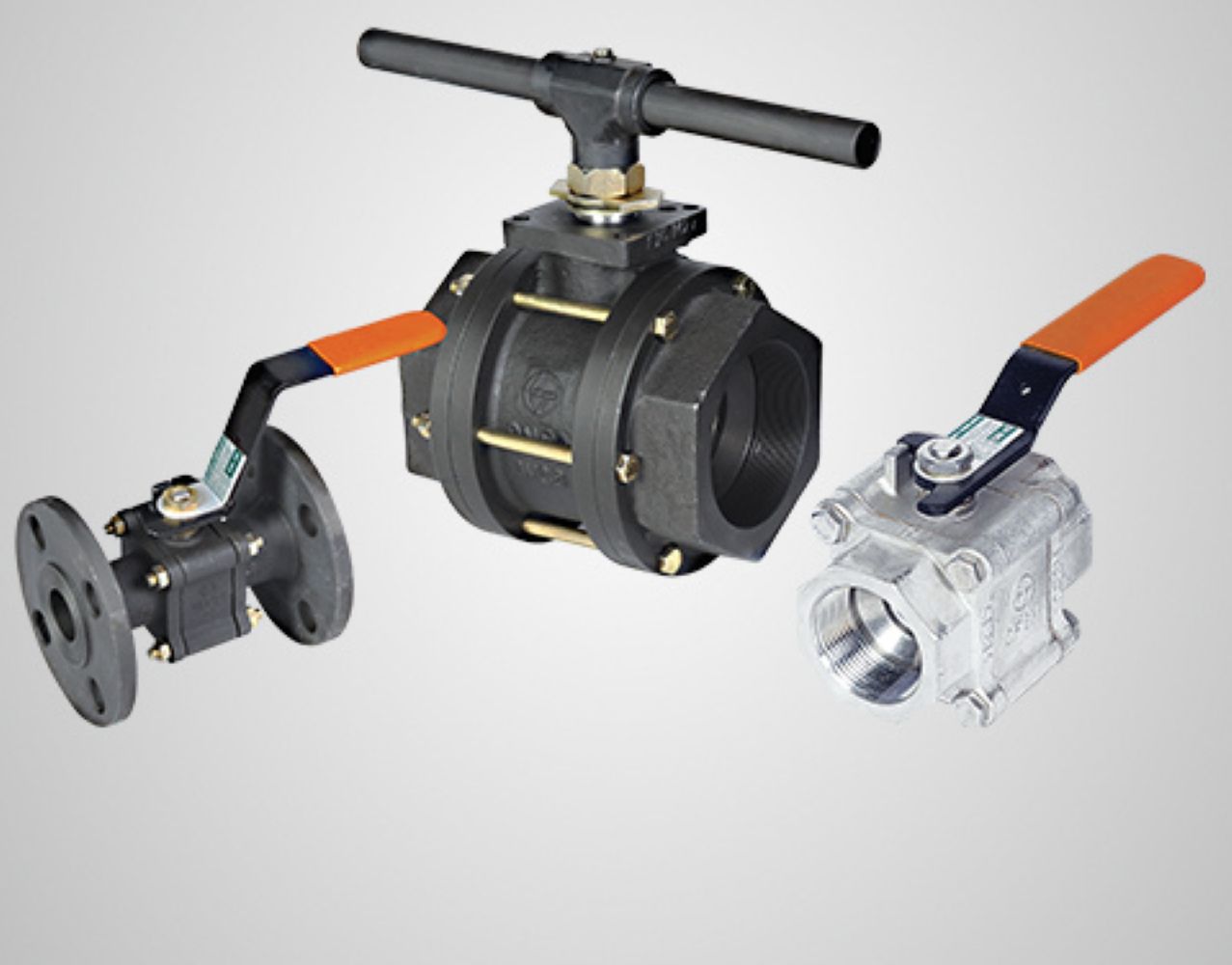

L&T Ball Valves are designed for tight shut-off and quick quarter-turn operation. They provide bubble-tight sealing and are ideal for handling oil, gas, steam, water, and corrosive fluids. Available in floating and trunnion-mounted designs, these valves ensure long life and low torque operation, even in high-pressure and high-temperature applications.
Design Standards
-
Design & Manufacture: API 6D / ISO 17292 / ASME B16.34
-
Face-to-Face: ASME B16.10
-
End Flanges: ASME B16.5
-
Butt Weld Ends: ASME B16.25
-
Inspection & Testing: API 598 / API 6D
Material of Construction (MOC)
-
Body & Bonnet: Cast Carbon Steel (ASTM A216 Gr. WCB) / Stainless Steel / Alloy Steel
-
Ball: Stainless Steel (AISI 304/316), Chrome Plated / Hard-faced
-
Stem: Stainless Steel (AISI 410/316)
-
Seats: PTFE / RPTFE / Metal-Seated (optional)
-
Seals & Packing: PTFE / Graphite (fire-safe option)
Pressure Ratings
-
Class 150 / 300 / 600 / 900 / 1500
-
PN 10 / 16 / 25 (as per DIN on request)
Size Range
-
15 mm (½”) to 600 mm (24”) for flanged type
-
Up to 56” in trunnion-mounted design (on request)
Temperature Range
-
-29°C to +425°C (with CS body & suitable trims)
-
Cryogenic & high-temperature service options available
End Connections
-
Flanged (RF/RTJ)
-
Butt Weld Ends (BWE)
-
Screwed / Socket Weld (for small sizes)
Types
-
Floating Ball Valve
-
Trunnion Mounted Ball Valve
-
Fire-Safe Design Ball Valve
-
Cryogenic Ball Valve
Special Features
-
Quarter-turn operation for quick shut-off
-
Antistatic design
-
Fire-safe & Blowout-proof stem construction
-
Low torque operation with high sealing efficiency
-
Bi-directional tight shut-off
-
Long service life with corrosion/erosion-resistant trims
-
Compliance with API 607 Fire-Safe standards (optional)
⚙️ Application Industries: Oil & Gas, Refinery, Petrochemical, Power, Fertilizer, Water Supply, Chemical, and Process Industries.
