Description

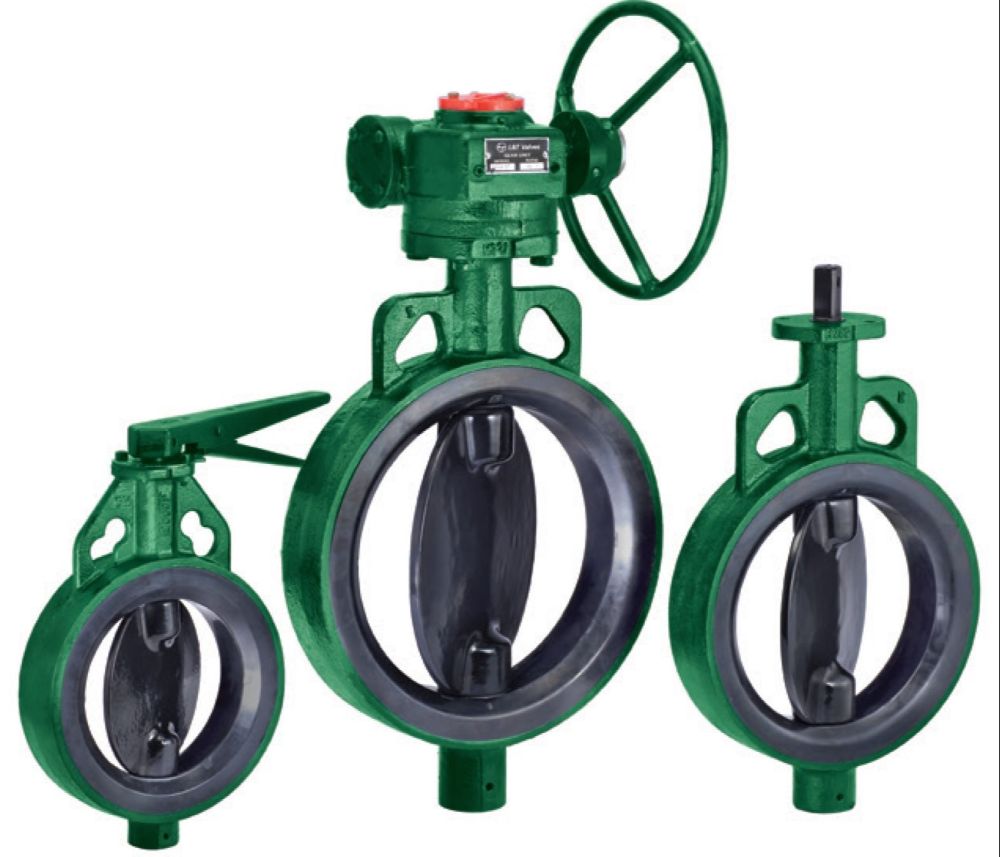

L&T (Larsen & Toubro) butterfly valves are quarter-turn valves used for regulating, isolating, or throttling fluid flow. Designed for compactness, low-pressure drop, and reliable performance, they are widely used in water, oil, gas, chemical, and power applications.
Types Available
-
Wafer Type Butterfly Valve
-
Lug Type Butterfly Valve
-
Double Flanged Type Butterfly Valve
-
High-Performance Butterfly Valve
Key Features
-
Compact and lightweight design.
-
90° rotation for quick operation.
-
Bi-directional sealing.
-
Bubble-tight shut-off.
-
Suitable for both on-off and throttling services.
-
Fire-safe and anti-blowout stem design (in certain models).
-
Manual, pneumatic, or electric actuator options.
Specifications
-
Size Range: 40 mm to 2000 mm (varies by type).
-
Body Material: Cast Iron, Ductile Iron, Carbon Steel, Stainless Steel.
-
Disc Material: Stainless Steel, Cast Iron, Aluminum Bronze, Duplex Steel.
-
Seat Material: EPDM, Nitrile, PTFE, Viton, Metal-seated (for high-temp).
-
End Connections: Wafer / Lugged / Double Flanged.
-
Pressure Rating: PN 6 / PN 10 / PN 16 / ANSI Class 150.
-
Temperature Range: -20°C to +200°C (depending on seat material).
-
Operation: Hand Lever / Gear Operator / Pneumatic Actuator / Electric Actuator.
Standards & Approvals
-
Design Standard: API 609 / BS 5155 / IS 13095
-
Face to Face: ISO 5752 / EN 558
-
Testing Standard: API 598 / EN 12266
-
Flange Drilling: IS 6418 / IS 1538 / ASME B16.5
Applications
-
Water supply & distribution
-
HVAC systems
-
Power plants
-
Chemical & petrochemical industries
-
Oil & gas
-
Food & beverage
-
Firefighting & irrigation systems
