Description:

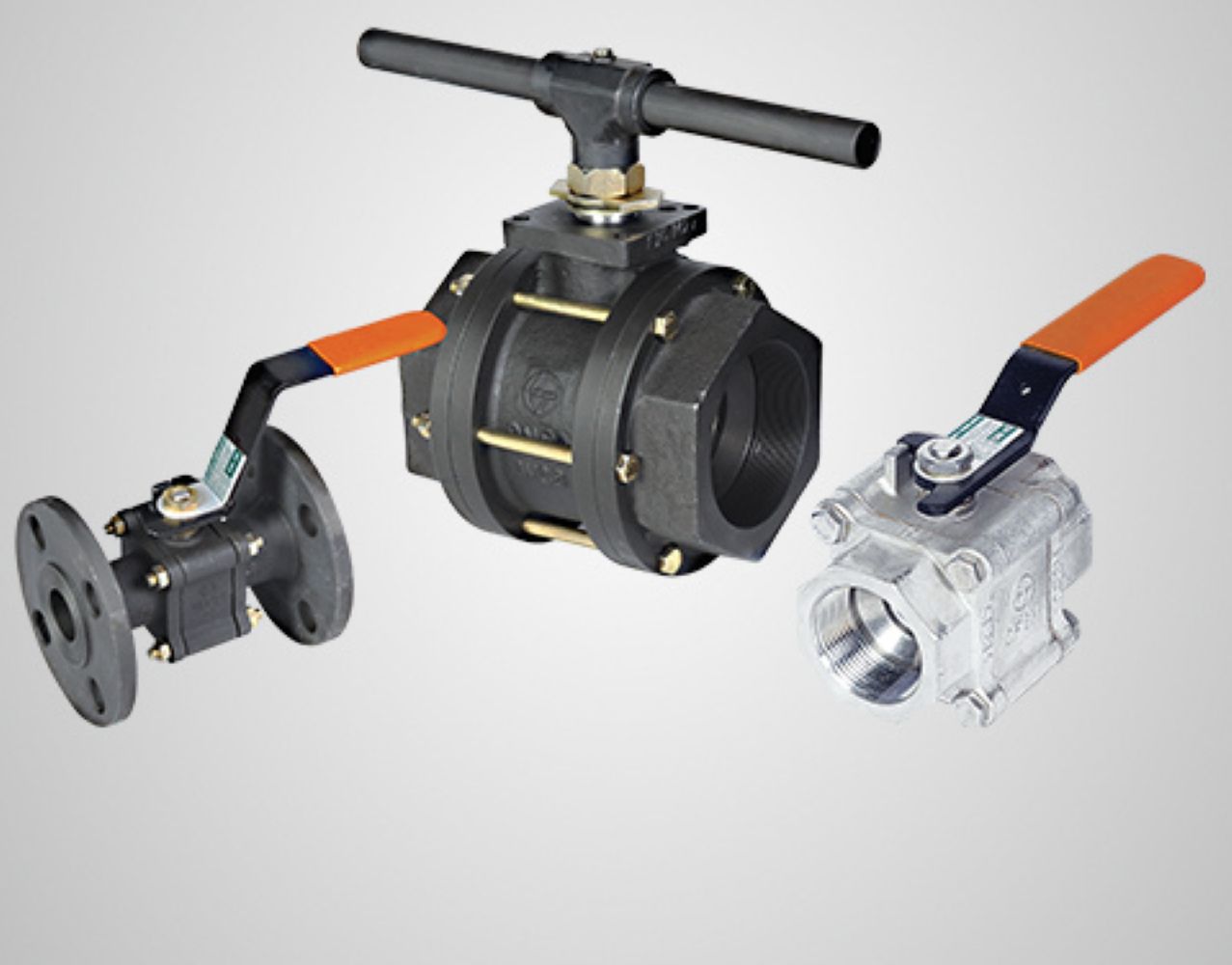

L&T Cast Steel Ball Valves are designed for reliable shut-off and smooth operation in demanding industrial environments. The valve features a precision-engineered ball with a floating or trunnion-mounted design, ensuring tight sealing, minimal torque, and long service life. Built for durability and efficiency, these valves are ideal for handling a wide range of fluids — including steam, oil, gas, water, and chemicals — under high pressure and temperature.
Design & Construction:
-
Body Material: ASTM A216 Gr. WCB (Carbon Steel)
-
Ball & Stem: Stainless Steel (SS 304 / SS 316)
-
Seat: PTFE / RPTFE / Metal Seated (as per service)
-
Type: Two-Piece / Three-Piece / Full Bore / Reduced Bore
-
Operation: Lever / Gear / Pneumatic / Electric Actuator
-
End Connections: Flanged (ASME B16.5) / Screwed / Butt Weld
Standards & Specifications:
-
Design: API 6D / BS 5351 / ASME B16.34
-
Pressure Rating: Class 150 / 300 / 600
-
Testing: API 598
Features:
-
Tight shut-off with zero leakage
-
Low torque and easy operation
-
Fire-safe and anti-static design (optional)
-
Blow-out proof stem
-
Maintenance-friendly and long-lasting
Applications:
-
Oil & Gas Refineries
-
Petrochemical & Fertilizer Plants
-
Power Plants
-
Steam, Water, and Process Lines
-
Chemical & Pharmaceutical Industries
