Description:

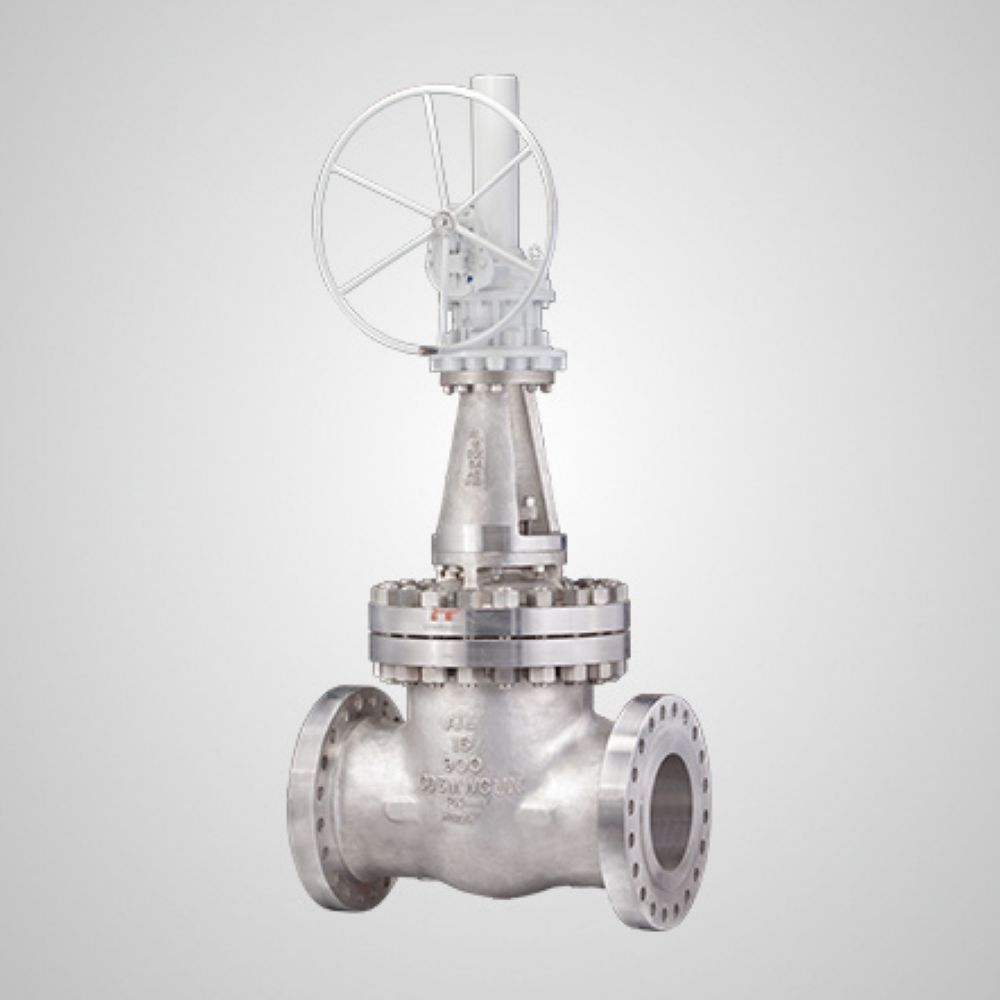

L&T Cast Steel Gate Valves are designed for tight shut-off and unrestricted flow in various industrial applications. They operate by lifting a solid gate out of the fluid path, ensuring minimal pressure drop. Built for reliability, durability, and superior sealing performance, these valves are ideal for on/off applications under high pressure and temperature conditions.
Design & Construction:
-
Body Material: ASTM A216 Gr. WCB (Carbon Steel)
-
Trim Material: 13% Cr / SS 304 / SS 316
-
Bonnet: Bolted or Pressure-Seal Type
-
Seat: Renewable / Welded
-
Ends: Flanged (ASME B16.5) / Butt Weld (ASME B16.25)
-
Operation: Handwheel / Gear Operated / Actuated
Standards & Specifications:
-
Design: API 600 / BS 1414 / ASME B16.34
-
Pressure Class: 150 / 300 / 600
-
Testing: API 598
Features:
-
Full bore for minimum pressure drop
-
Rising stem with outside screw and yoke (OS&Y)
-
Excellent sealing and zero leakage
-
High strength, durability, and corrosion resistance
-
Low maintenance and long service life
Applications:
-
Oil & Gas Refineries
-
Power Plants
-
Petrochemical & Fertilizer Industries
-
Water & Steam Lines
-
Process and Utility Systems
