Description:

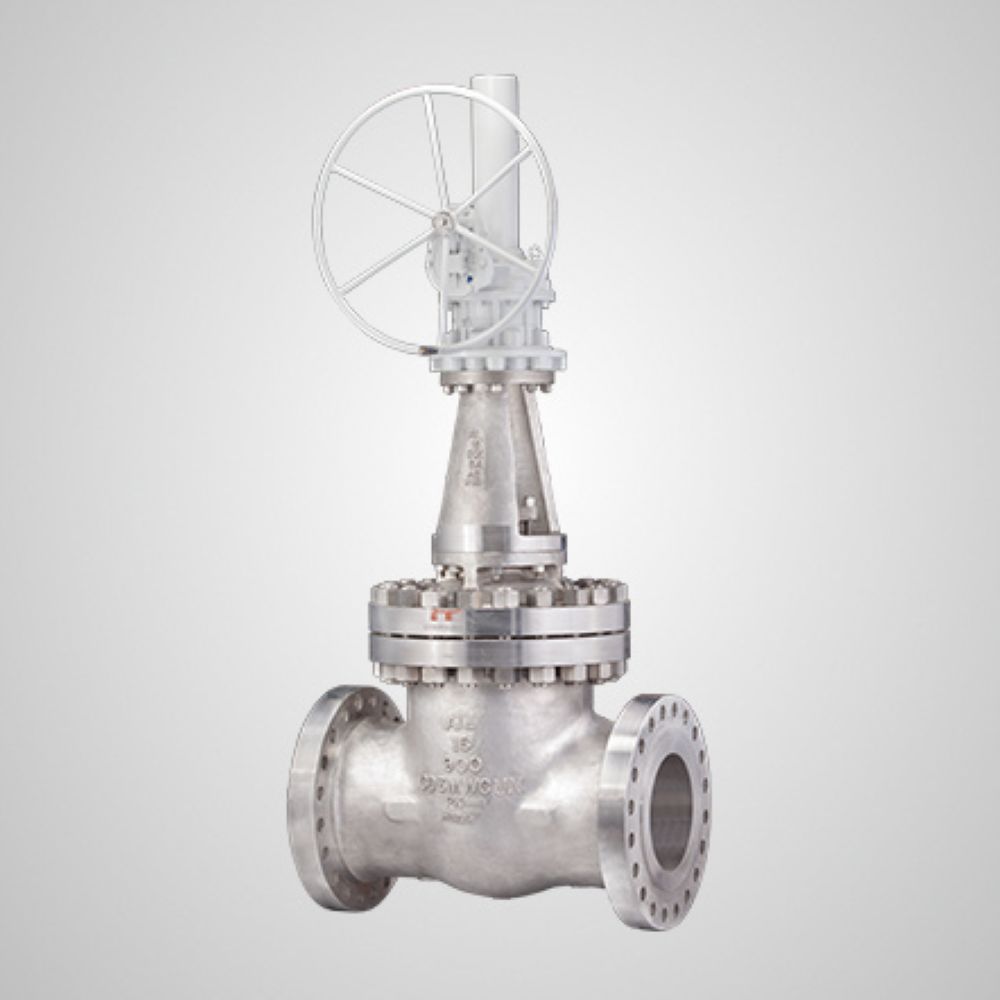

L&T Cast Steel Gate Valves are designed for tight shut-off and unrestricted flow in various industrial applications. They operate by lifting a solid gate out of the fluid path, ensuring minimal pressure drop. Built for reliability, durability, and superior sealing performance, these valves are ideal for on/off applications under high pressure and temperature conditions.
L&T Cast Steel Gate Valves are designed for tight shut-off and unrestricted flow in various industrial applications. They operate by lifting a solid gate out of the fluid path, ensuring minimal pressure drop. Built for reliability, durability, and superior sealing performance, these valves are ideal for on/off applications under high pressure and temperature conditions.
Design & Construction:
Body Material: ASTM A216 Gr. WCB (Carbon Steel)
Trim Material: 13% Cr / SS 304 / SS 316
Bonnet: Bolted or Pressure-Seal Type
Seat: Renewable / Welded
Ends: Flanged (ASME B16.5) / Butt Weld (ASME B16.25)
Operation: Handwheel / Gear Operated / Actuated
Body Material: ASTM A216 Gr. WCB (Carbon Steel)
Trim Material: 13% Cr / SS 304 / SS 316
Bonnet: Bolted or Pressure-Seal Type
Seat: Renewable / Welded
Ends: Flanged (ASME B16.5) / Butt Weld (ASME B16.25)
Operation: Handwheel / Gear Operated / Actuated
Standards & Specifications:
Design: API 600 / BS 1414 / ASME B16.34
Pressure Class: 150 / 300 / 600
Testing: API 598
Design: API 600 / BS 1414 / ASME B16.34
Pressure Class: 150 / 300 / 600
Testing: API 598
Features:
Full bore for minimum pressure drop
Rising stem with outside screw and yoke (OS&Y)
Excellent sealing and zero leakage
High strength, durability, and corrosion resistance
Low maintenance and long service life
Full bore for minimum pressure drop
Rising stem with outside screw and yoke (OS&Y)
Excellent sealing and zero leakage
High strength, durability, and corrosion resistance
Low maintenance and long service life
Applications:
Oil & Gas Refineries
Power Plants
Petrochemical & Fertilizer Industries
Water & Steam Lines
Process and Utility Systems
Oil & Gas Refineries
Power Plants
Petrochemical & Fertilizer Industries
Water & Steam Lines
Process and Utility Systems
