Description

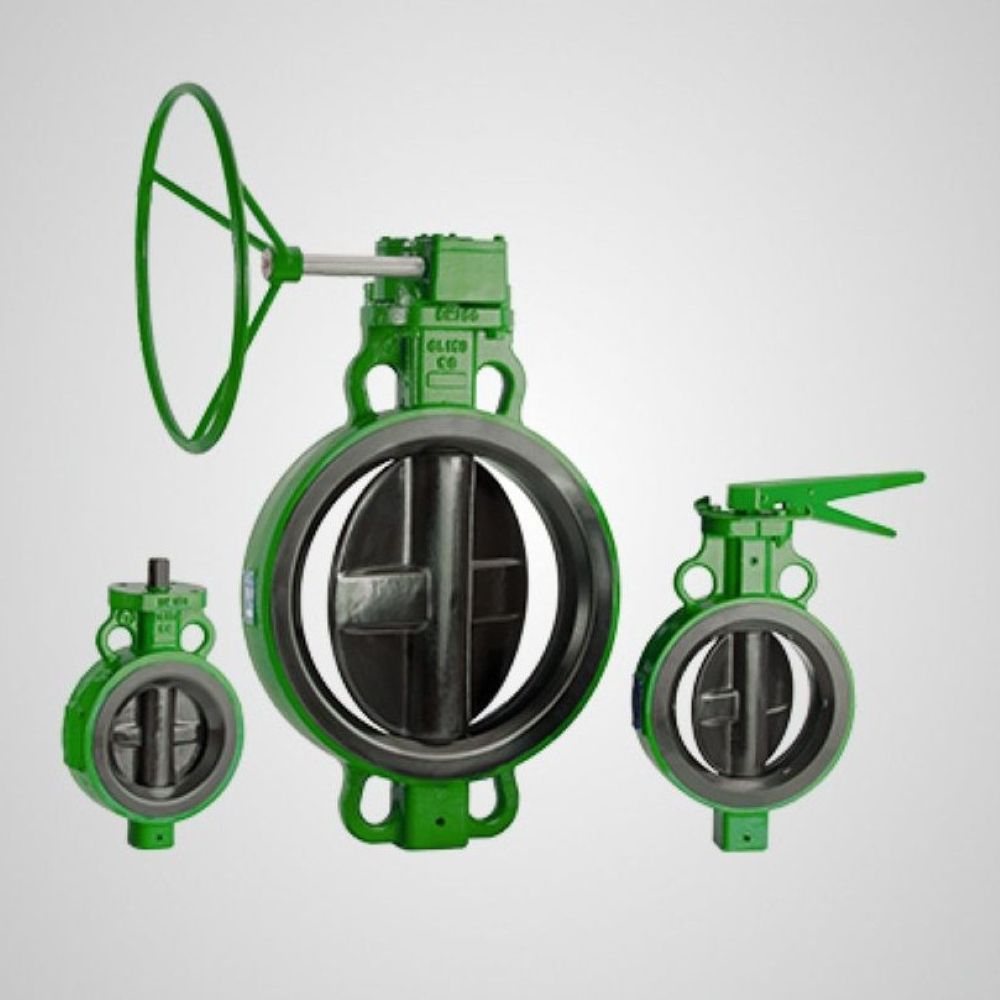

L&T Butterfly Valves are reliable quarter-turn valves designed for shut-off and throttling applications. Available in wafer, lug, and double-flanged designs, they offer compact construction, lightweight operation, low torque, and long service life. Suitable for water, air, HVAC, chemical, process, and industrial applications.
Design Standards
-
Design & Manufacture: API 609 / BS 5155 / EN 593
-
Face-to-Face: ISO 5752 / API 609
-
Flange Standards: ASME B16.5 / EN 1092 / IS 6392
-
Inspection & Testing: API 598 / ISO 5208
Types Available
-
Wafer Type
-
Lug Type
-
Double Flanged Type
-
High-Performance (Double Offset)
-
Triple Offset (for high temperature & critical service)
Material of Construction (MOC)
Body
-
Cast Iron / Ductile Iron
-
Carbon Steel (WCB)
-
Stainless Steel (CF8 / CF8M)
Disc
-
SS 304 / SS 316
-
DI Epoxy Coated
-
Nickel-Plated / ENP Coated
-
Aluminum Bronze
Seat Options
-
EPDM / NBR / Viton
-
PTFE
-
Metal Seat (for high temperature)
Stem
-
SS 410 / SS 304 / SS 316
Pressure Ratings
-
PN 10 / PN 16
-
Class 150 (High-performance models)
Size Range
-
50 mm (2”) to 2000 mm (80”)
-
Larger diameters available for special applications
Temperature Range
-
–10°C to +120°C (EPDM/NBR)
-
Up to +200°C (PTFE seat)
-
Up to +425°C (Metal seat – triple offset type)
End Connections
-
Wafer — fits between flanges
-
Lug — for isolation in pipelines
-
Double Flanged — for heavy-duty applications
Operation Types
-
Lever Operated
-
Gear Operated
-
Pneumatic Actuator
-
Electric Actuator
Special Features
-
Low torque and smooth operation
-
Bubble-tight shutoff (soft seated)
-
Corrosion-resistant options
-
Fire-safe design (high-performance type)
-
Suitable for throttling & on/off service
-
Lightweight compared to gate/globe valves
Application Industries
Water Supply • HVAC • Chemical • Food & Beverage • Pharma • Power • Oil & Gas • Marine • General Industries
