Description

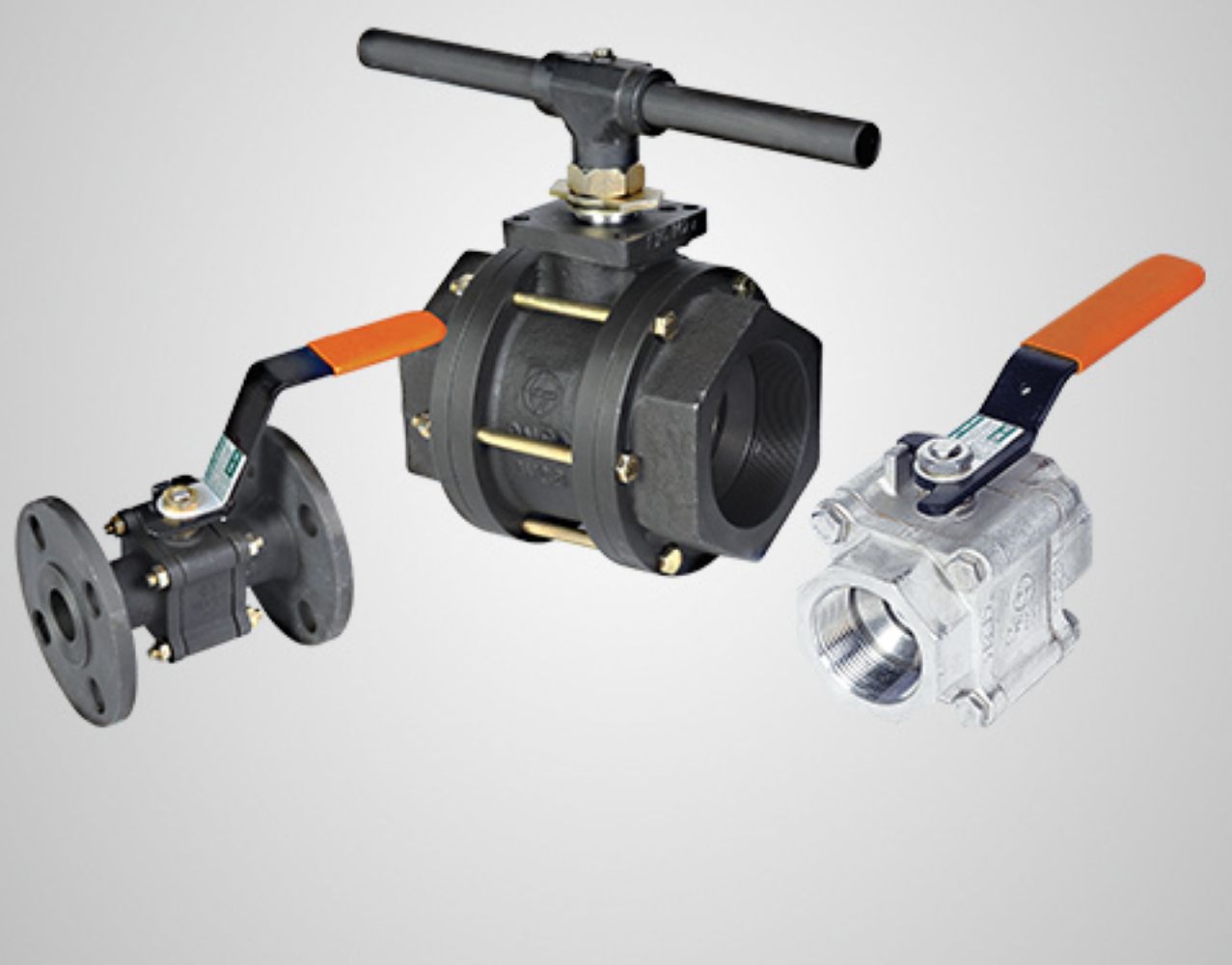

L&T CS Ball Valves are robust, quarter-turn valves designed for on/off and moderate throttling service. Built with precision-engineered components, they offer bubble-tight sealing, low operating torque, and long service life. These valves are ideal for oil, gas, chemical, power, and general industrial applications where durability and reliability are essential.
Design Standards
Design & Manufacture: API 608 / API 6D / ASME B16.34
Face-to-Face: ASME B16.10
End Flanges: ASME B16.5
Butt Weld Ends: ASME B16.25
Inspection & Testing: API 598 / API 6D
Material of Construction (MOC)
Body & End Caps: Cast Carbon Steel (ASTM A216 Gr. WCB)
Ball: Stainless Steel / ENP Coated / Hard-Faced
Stem: Stainless Steel (AISI 410 / 304 / 316)
Seats: PTFE / Reinforced PTFE / Metal-Seated (optional)
Sealing: Graphite / PTFE-based seals
Fasteners: Alloy Steel / Stainless Steel
Pressure Ratings
ASME Class: 150 / 300 / 600
Higher classes on request
Size Range
15 mm (½”) to 300 mm (12”)
Larger sizes available for special orders
Temperature Range
–29°C to +200°C (Soft Seated)
Up to +400°C (Metal-Seated options)
End Connections
Flanged (RF / RTJ)
Butt Weld Ends (BWE)
Screwed / Socket Weld (for smaller sizes, on request)
Type of Operation
Lever Operated
Gear Operated
Pneumatic / Electric Actuated versions available
Special Features
Fire-Safe Design – API 607 / ISO 10497
Blow-Out Proof Stem
Full Bore or Reduced Bore Options
Anti-Static Feature for safe operation
Low Torque Operation due to precision ball & seat design
Double Block & Bleed (DBB) configuration (optional)
High Cv – minimal pressure drop
Industries Served
Oil & Gas • Petrochemical • Power • Chemical • Fertilizer • Water & Process Industries
