Description

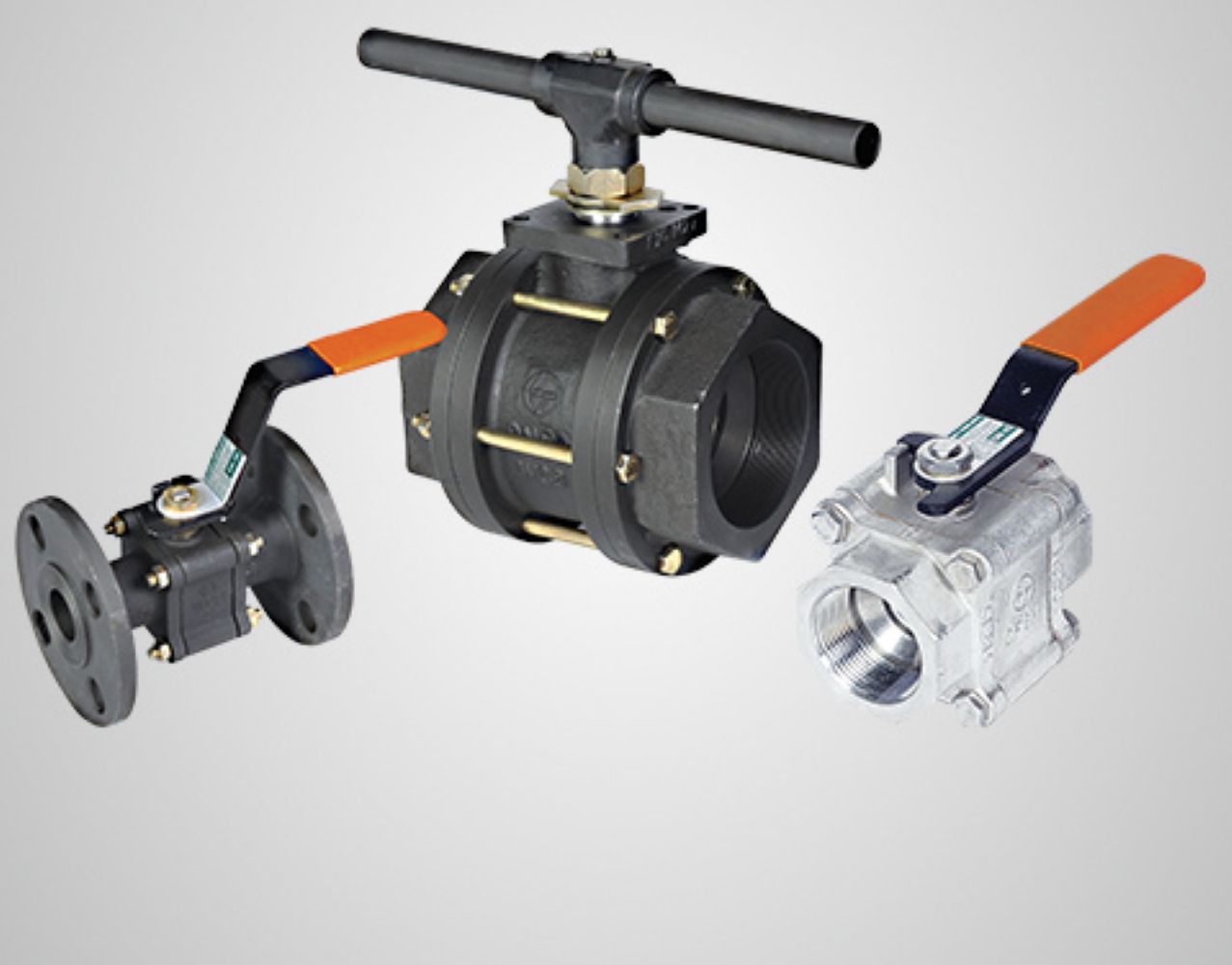

L&T CS Ball Valves are robust, quarter-turn valves designed for on/off and moderate throttling service. Built with precision-engineered components, they offer bubble-tight sealing, low operating torque, and long service life. These valves are ideal for oil, gas, chemical, power, and general industrial applications where durability and reliability are essential.
Design Standards
-
Design & Manufacture: API 608 / API 6D / ASME B16.34
-
Face-to-Face: ASME B16.10
-
End Flanges: ASME B16.5
-
Butt Weld Ends: ASME B16.25
-
Inspection & Testing: API 598 / API 6D
Material of Construction (MOC)
-
Body & End Caps: Cast Carbon Steel (ASTM A216 Gr. WCB)
-
Ball: Stainless Steel / ENP Coated / Hard-Faced
-
Stem: Stainless Steel (AISI 410 / 304 / 316)
-
Seats: PTFE / Reinforced PTFE / Metal-Seated (optional)
-
Sealing: Graphite / PTFE-based seals
-
Fasteners: Alloy Steel / Stainless Steel
Pressure Ratings
-
ASME Class: 150 / 300 / 600
-
Higher classes on request
Size Range
-
15 mm (½”) to 300 mm (12”)
-
Larger sizes available for special orders
Temperature Range
-
–29°C to +200°C (Soft Seated)
-
Up to +400°C (Metal-Seated options)
End Connections
-
Flanged (RF / RTJ)
-
Butt Weld Ends (BWE)
-
Screwed / Socket Weld (for smaller sizes, on request)
Type of Operation
-
Lever Operated
-
Gear Operated
-
Pneumatic / Electric Actuated versions available
Special Features
-
Fire-Safe Design – API 607 / ISO 10497
-
Blow-Out Proof Stem
-
Full Bore or Reduced Bore Options
-
Anti-Static Feature for safe operation
-
Low Torque Operation due to precision ball & seat design
-
Double Block & Bleed (DBB) configuration (optional)
-
High Cv – minimal pressure drop
Industries Served
Oil & Gas • Petrochemical • Power • Chemical • Fertilizer • Water & Process Industries
