Description

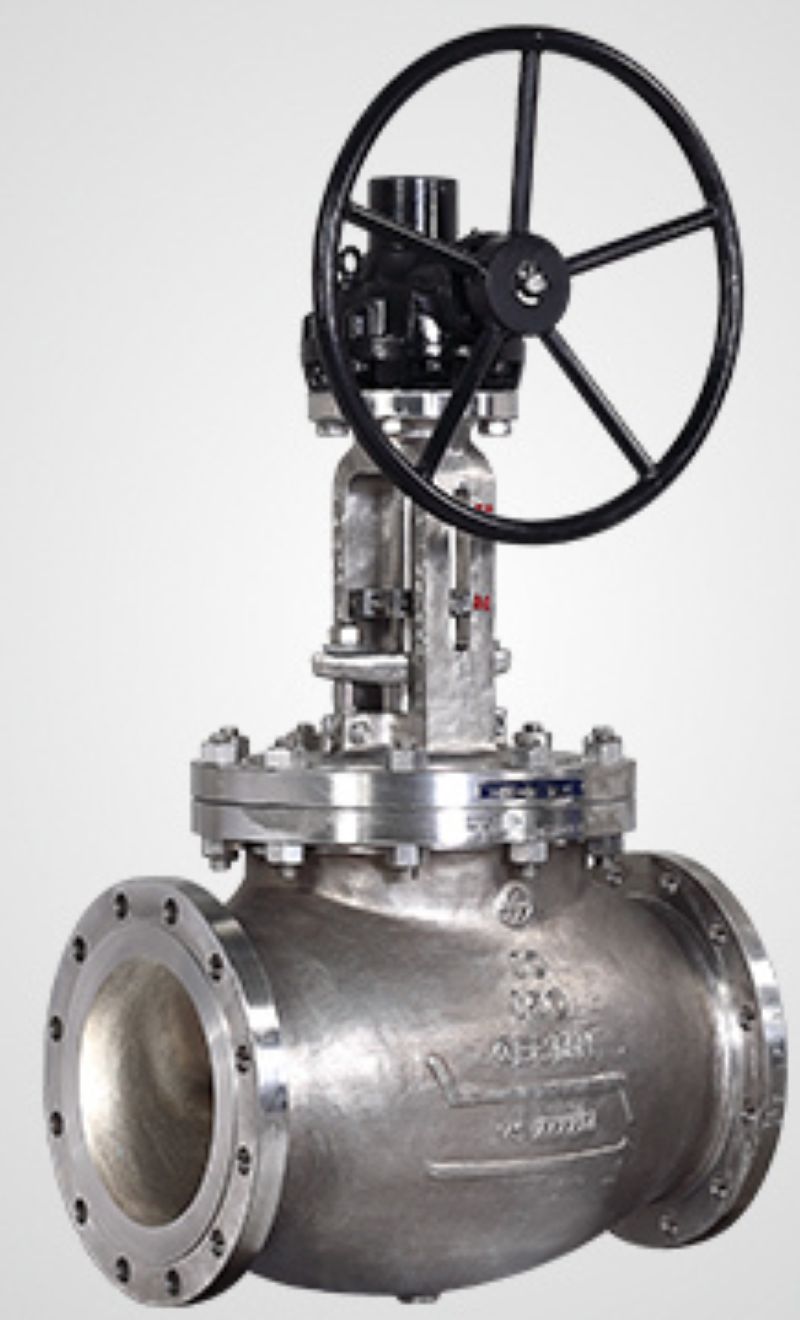

L&T CS Globe Valves are designed for throttling and shut-off service. They regulate flow effectively with precise control and are suitable for steam, oil, gas, and other process applications. The valves feature a rising stem with outside screw & yoke (OS&Y) construction, ensuring reliability in high-pressure and high-temperature conditions.
Design Standards
Design & Manufacture: BS 1873 / API 623 / ASME B16.34 / IS 14846
Face-to-Face: ASME B16.10
End Flanges: ASME B16.5
Butt Weld Ends: ASME B16.25
Inspection & Testing: API 598
Material of Construction (MOC)
Body & Bonnet: Cast Carbon Steel (ASTM A216 Gr. WCB)
Trim: 13% Cr / Stellited Disc (for wear & corrosion resistance)
Stem: Stainless Steel (AISI 410/420)
Seat Rings: Renewable, hard-faced
Packing: Graphite
Pressure Ratings
ASME Class: 150 / 300 / 600 / 900 / 1500
PN 10 / 16 / 25 (on request)
Size Range
50 mm (2”) to 400 mm (16”) in flanged ends
Larger sizes available on request
Temperature Range
Standard CS body: up to +425°C
Special trims available for higher temperature & aggressive media
End Connections
Flanged (RF / RTJ)
Butt Weld Ends (BWE)
Special Features
Outside Screw & Yoke (OS&Y)
Bolted Bonnet Construction
Renewable seat & disc
Rising stem for easy operation & position indication
Superior throttling capability compared to gate valves
Fire-safe design & fugitive emission compliance (optional)
⚙️ Application Industries: Refinery, Petrochemical, Power, Fertilizer, Oil & Gas, Chemical, and General Industry.
