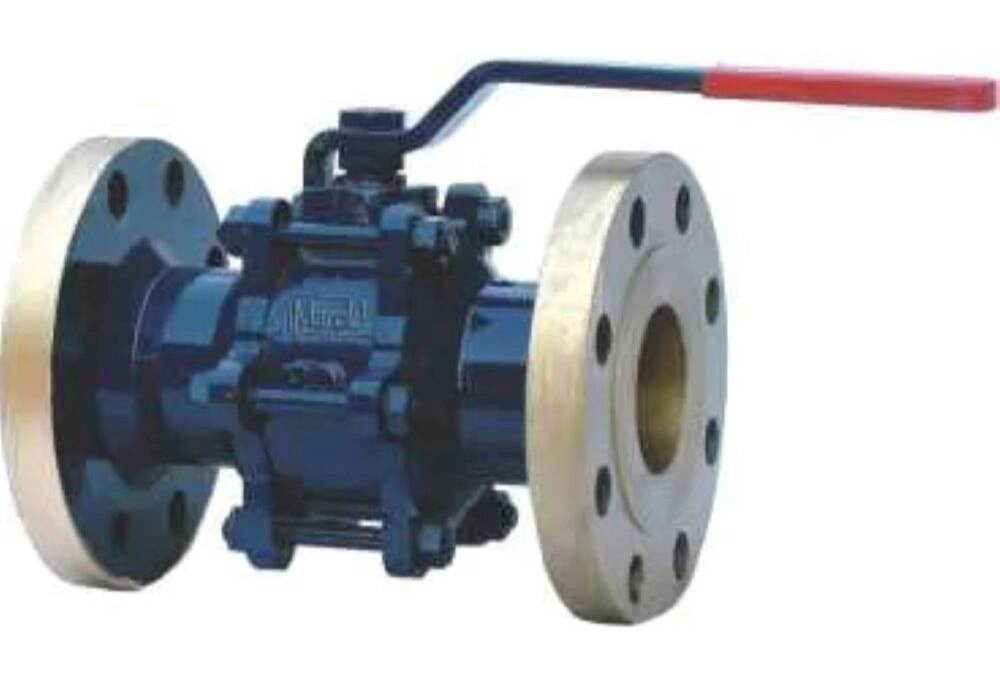

🔹 Marck Ball Valve – Product Overview
Marck Ball Valves are high-performance, quarter-turn valves designed for tight shut-off and reliable flow control. Featuring a precision-engineered floating or trunnion-mounted ball, they provide zero leakage, low operating torque, and long service life. These valves are widely used in water, oil, gas, chemical, and industrial applications for both on-off and throttling purposes.
🔹 Key Features
-
Body Material: Cast Steel, Stainless Steel, Brass, or Alloy Steel
-
Ball Type: Floating Ball or Trunnion Mounted Ball
-
Seat Material: PTFE, RPTFE, PEEK, or Metal Seated
-
Design Standards: API 6D / API 608 / BS 5351 / ASME B16.34
-
End Connections: Flanged, Screwed, Socket Weld, or Butt Weld Ends
-
Operation: Lever, Gear, Pneumatic, or Electric Actuator
-
Special Features: Fire-safe design, Anti-static, Blow-out proof stem
🔹 Technical Specifications
-
Size Range: 15 mm (½”) to 1200 mm (48”)
-
Pressure Rating: Class 150 to Class 2500 / PN 10 – PN 420
-
Temperature Range: –29°C to 400°C (depending on seat material)
-
Suitable Media: Oil, Gas, Water, Steam, Petrochemicals, Non-corrosive Fluids
🔹 Applications
-
Oil & Gas Transmission Pipelines
-
Refineries & Petrochemical Plants
-
Chemical Processing Units
-
Power Generation Plants
-
Water Supply & Industrial Pipelines
⚙️ Marck Ball Valves are highly regarded for their leak-proof design, durability, and low maintenance, making them an ideal solution for industrial flow isolation and control.
