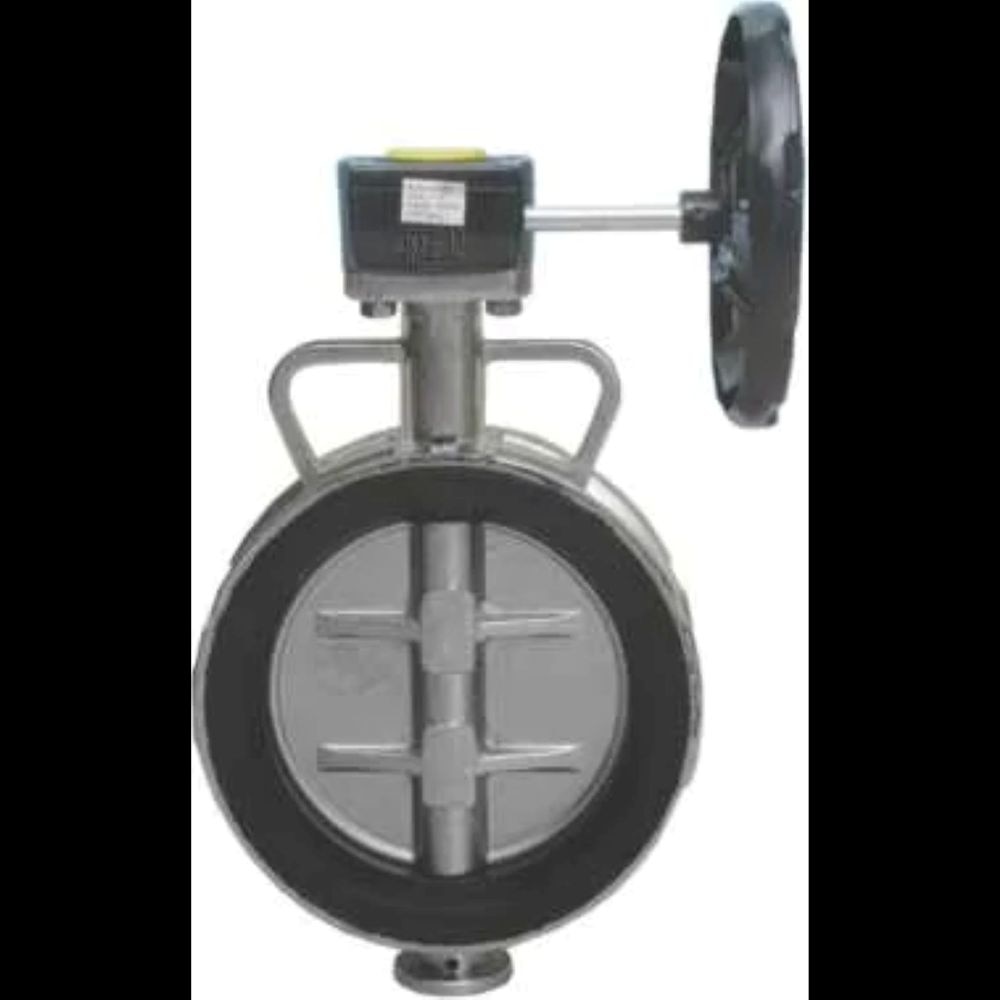

🔹 Marck Butterfly Valve – Product Overview
Marck Butterfly Valves are quarter-turn valves designed for flow regulation and isolation in pipelines. With a lightweight body, compact design, and smooth operation, these valves provide reliable sealing, long service life, and easy maintenance. They are widely used in water supply, chemical, oil & gas, HVAC, and industrial applications.
🔹 Key Features
-
Body Material: Cast Iron, Ductile Iron, Cast Steel, Stainless Steel
-
Disc Material: Cast Iron, Stainless Steel, Aluminum Bronze
-
Seat / Lining: EPDM, Nitrile, Neoprene, PTFE, Viton
-
Design Standards: API 609 / BS 5155 / IS:13095
-
End Connection: Wafer, Lugged, or Double Flanged
-
Operation: Lever, Gear Operated, or Actuator (Electric / Pneumatic)
-
Coating: Epoxy coated or fusion-bonded for corrosion resistance
🔹 Technical Specifications
-
Size Range: 50 mm (2”) to 2000 mm (80”)
-
Pressure Rating: PN 10 / PN 16 / Class 150
-
Test Pressure:
-
Body Test: 1.5 × PN
-
Seat Test: 1.1 × PN
-
-
Temperature Range: –20°C to 200°C (depending on seat material)
-
Suitable Media: Water, Air, Oil, Steam, Chemicals, Non-corrosive Fluids
🔹 Applications
-
Water Supply & Distribution Networks
-
HVAC & Fire Fighting Systems
-
Oil & Gas Pipelines
-
Chemical & Petrochemical Plants
-
Power & Process Industries
⚙️ Marck Butterfly Valves are valued for their economical design, reliable sealing, and low maintenance, making them an ideal solution for flow control in industrial and utility pipelines.
