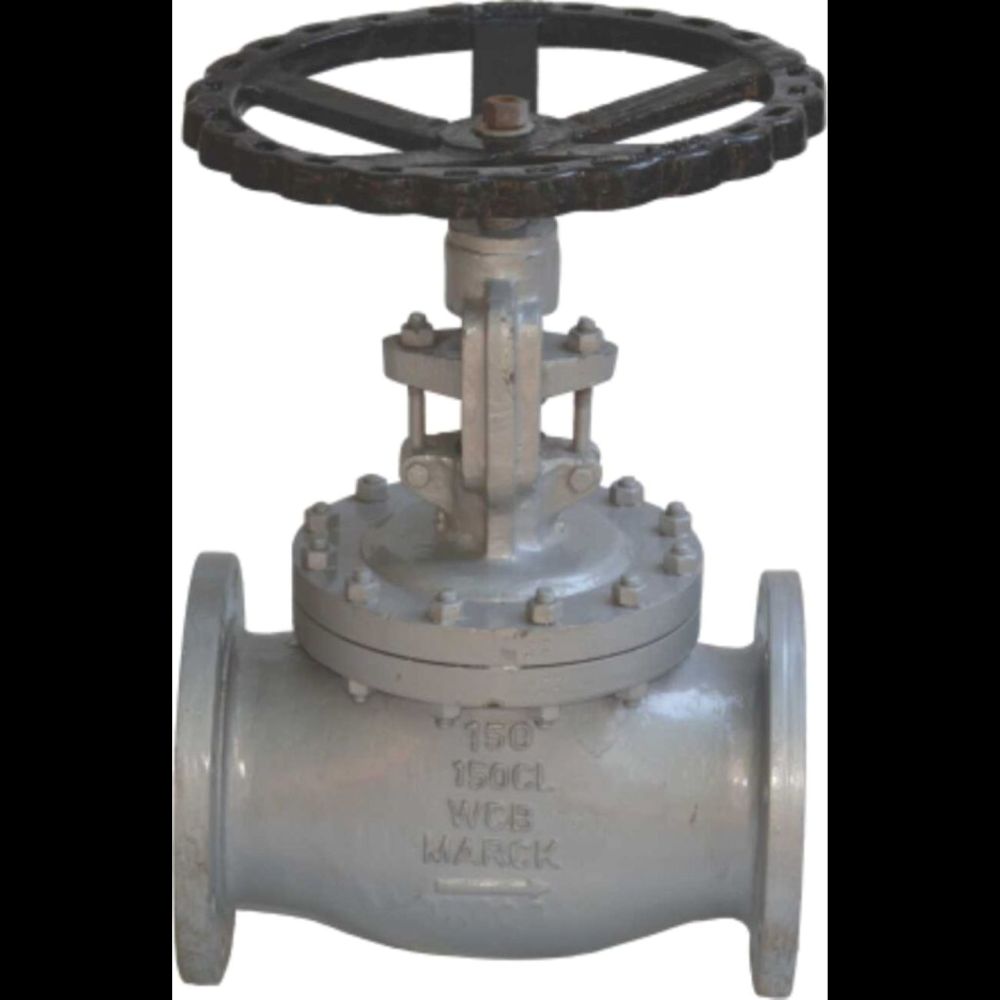

🔹 Marck Globe Valve – Product Overview
Marck Globe Valves are designed for precise flow control and throttling in pipelines. With a robust body, precision-engineered disc and seat, and reliable sealing, these valves provide tight shut-off, long service life, and smooth operation. They are widely used in water, steam, oil, chemical, and industrial process systems where accurate flow regulation is required.
🔹 Key Features
-
Body Material: Cast Steel, Stainless Steel, Alloy Steel
-
Disc Type: Plug / Needle / Parabolic Disc
-
Seat: Renewable / Integral with optional hard-facing (Stellite)
-
Stem Type: Rising Stem with Outside Screw & Yoke (OS&Y)
-
Bonnet Type: Bolted Bonnet / Pressure Seal Bonnet
-
Design Standards: API 602 / ASME B16.34 / BS 1873 / IS:14846
-
End Connections: Flanged, Butt-Weld, or Screwed Ends
-
Operation: Handwheel, Gearbox, or Actuator Operated
🔹 Technical Specifications
-
Size Range: 50 mm (2”) to 600 mm (24”)
-
Pressure Rating: Class 150 to Class 2500 / PN 10 – PN 420
-
Temperature Range: –29°C to 425°C (higher with special trims)
-
Test Pressure:
-
Shell Test: 1.5 × rated pressure
-
Seat Test: 1.1 × rated pressure
-
-
Suitable Media: Steam, Oil, Gas, Water, Chemicals, and Non-corrosive fluids
🔹 Applications
-
Power Plants (Steam & Cooling Systems)
-
Oil & Gas Pipelines
-
Refineries & Petrochemical Plants
-
Chemical Processing Units
-
Water Treatment & Distribution Systems
⚙️ Marck Globe Valves are trusted for their accurate flow control, durability, and reliable performance, making them an ideal choice for critical process pipelines.
