1. Definition:

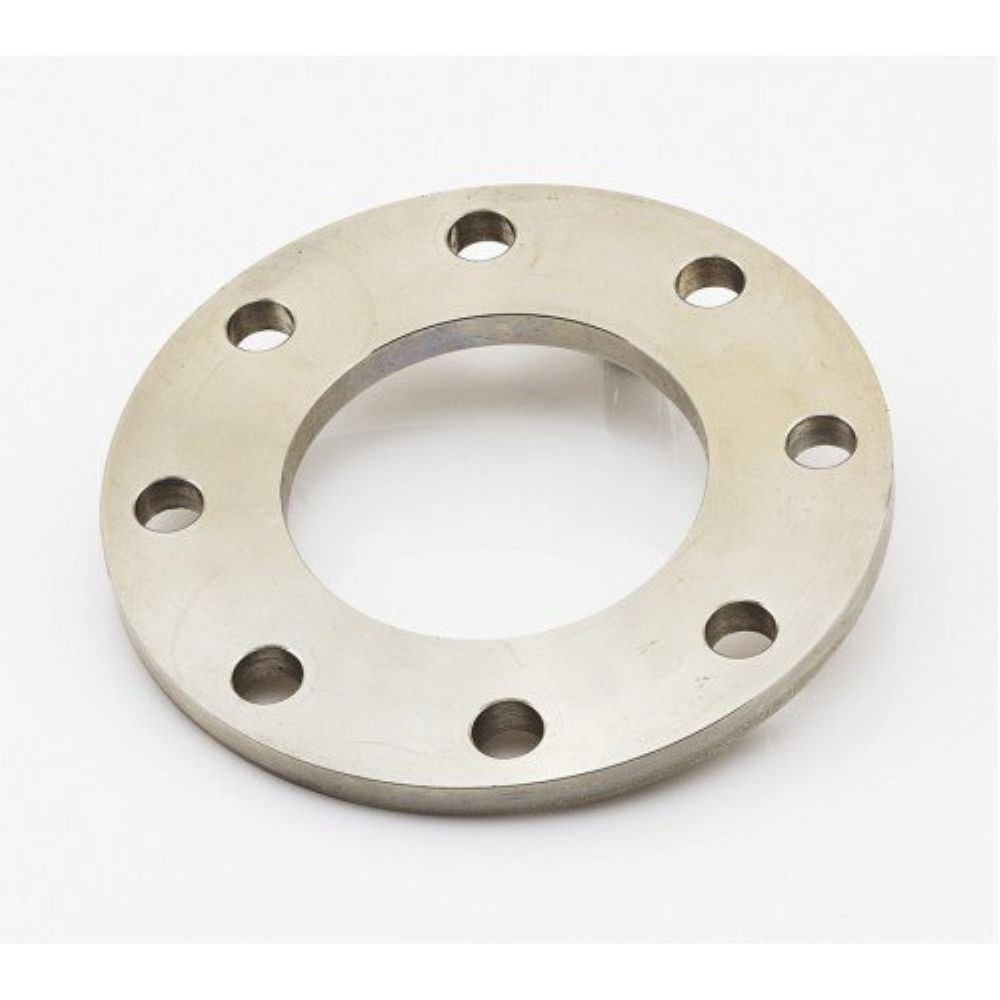

A Slip-On Flange is a type of flange that slips over the pipe and is then welded both on the inside and outside (usually a fillet weld). It is commonly used for low-pressure applications where quick installation and alignment are required.
2. Material:
-
Mild Steel (MS): Offers good strength, durability, and cost-effectiveness. Suitable for water, gas, and general industrial applications.
3. Key Features:
-
Easy to install and align.
-
Requires both inside and outside welding for a secure fit.
-
Lower cost compared to Weld Neck flanges.
-
Ideal for low-pressure and low-temperature systems.
4. Applications:
-
Water and wastewater pipelines
-
Oil and gas distribution
-
Chemical industries
-
Power plants and construction piping
5. Standards & Sizes:
-
Typically available in ANSI/ASME B16.5 standard dimensions.
-
Sizes range from 1/2” to 48”, depending on requirement.
