1. Definition:

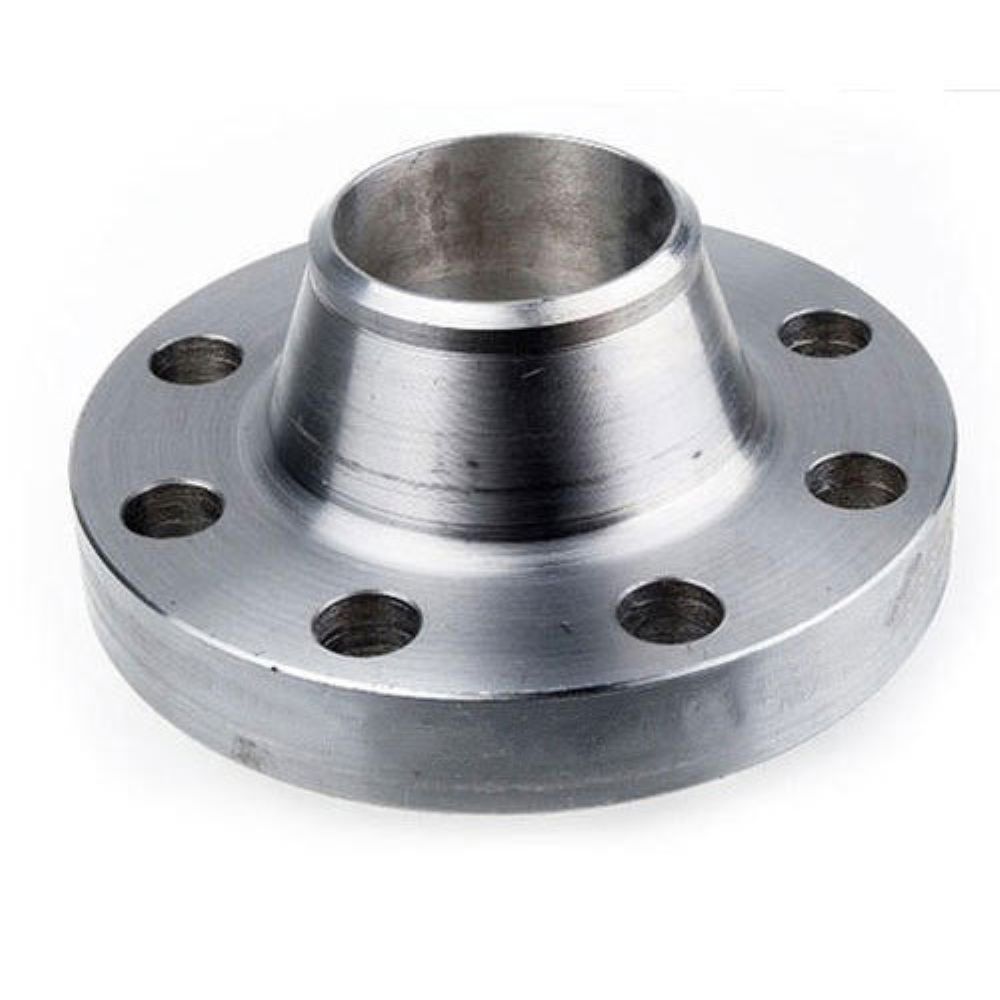

A Weld Neck Flange is a type of flange that has a long tapered hub, which is welded to the pipe. This design provides excellent stress distribution from the flange to the pipe, making it ideal for high-pressure and high-temperature applications.
2. Material:
-
Mild Steel (MS): Offers durability, strength, and cost-effectiveness for a wide range of industrial applications.
3. Key Features:
-
Designed for high-pressure and high-temperature systems.
-
Provides superior mechanical strength and leak-proof connections.
-
Requires butt welding to the pipe for permanent, strong connections.
-
Minimizes stress concentration at the base of the flange.
4. Applications:
-
Oil & gas pipelines
-
Petrochemical and chemical industries
-
Power plants and refineries
-
Water treatment plants and critical piping systems
5. Standards & Sizes:
-
Typically available in ANSI/ASME B16.5 dimensions.
-
Sizes range from 1/2” to 48”, depending on the requirement.
