1. Definition:

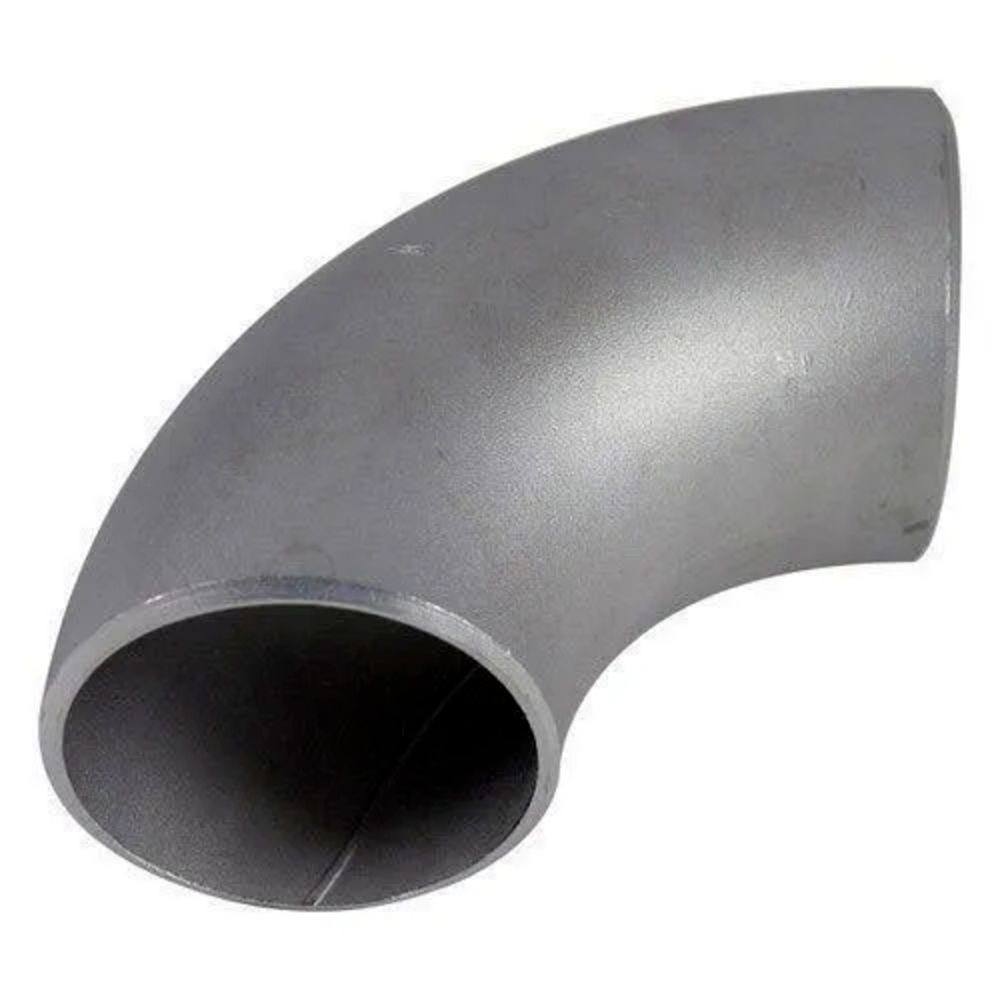

A Short Bend 90° is a pipe fitting used to change the direction of flow in a pipeline by 90 degrees. Its compact design allows installation in tight spaces while maintaining smooth flow.
2. Material:
-
Mild Steel (MS): Provides strength, durability, and moderate resistance to pressure and temperature, making it suitable for industrial piping applications.
3. Key Features:
-
Allows sharp directional change in pipelines.
-
Compact design ideal for space-restricted areas.
-
Ensures minimal pressure loss while redirecting flow.
-
Durable, reliable, and corrosion-resistant with proper care.
4. Applications:
-
Oil & gas pipelines
-
Petrochemical and chemical industries
-
Power plants
-
Water supply and wastewater systems
-
General industrial piping
5. Standards & Sizes:
-
Manufactured as per ANSI/ASME B16.9 or equivalent standards.
-
Sizes typically range from 1/2” to 48” depending on requirement.
