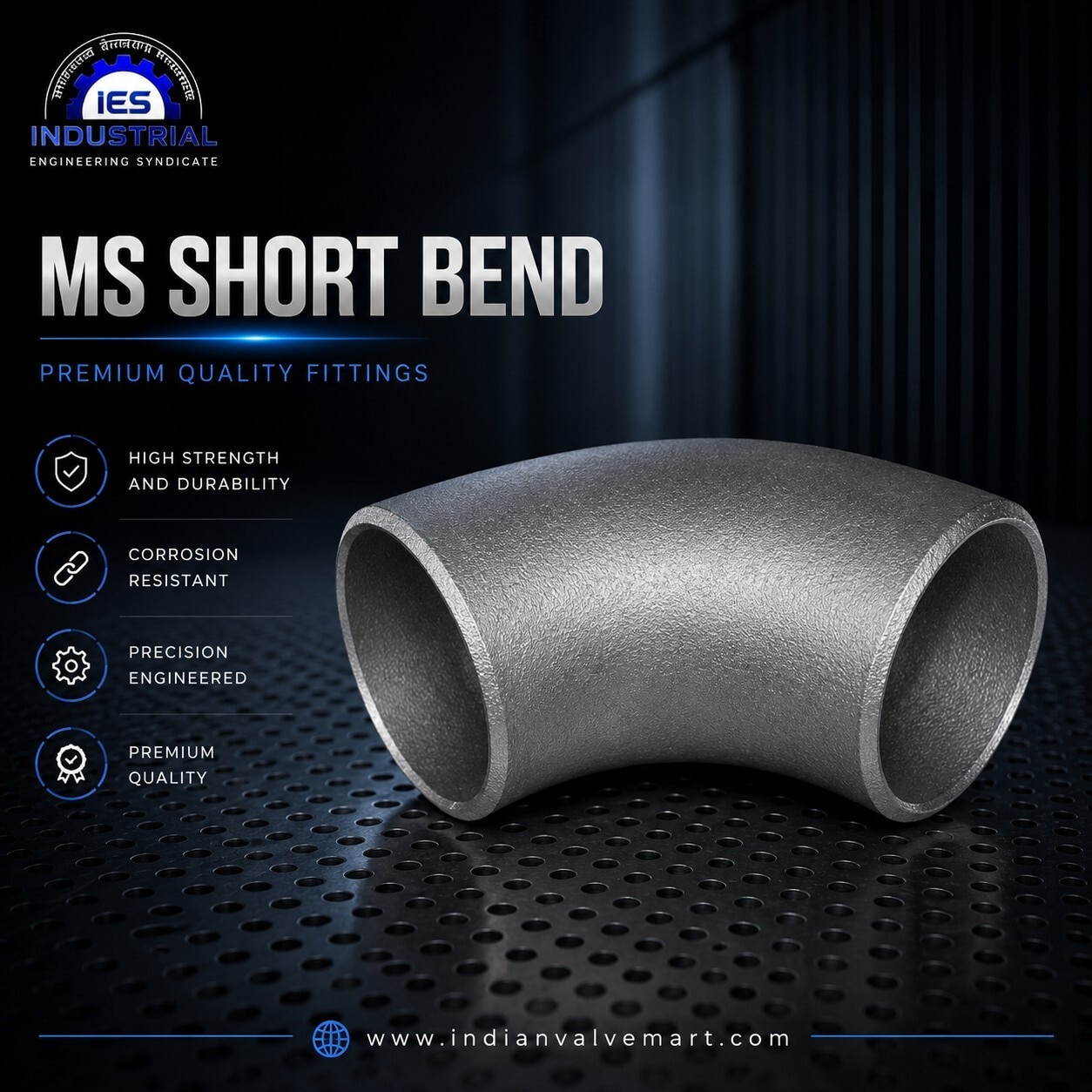

MS Short Bend Manufacturer In Naraina Industrial Area

Description

An MS Short Bend is a pipe fitting used to change the direction of flow in a piping system with a short radius curvature. It is commonly used where installation space is limited and a compact pipeline layout is required. MS short bends are widely used in steam lines, water supply systems, fire fighting pipelines, HVAC systems, and industrial process piping.

Material & Construction

• Material: Mild Steel / Carbon Steel
• Common Grades: IS 2062 / ASTM A234 WPB
• Manufacturing Type: Seamless / Welded
• Surface Finish: Black, Painted, Galvanized, Epoxy Coated

Types Available

• 90° Short Bend
• 45° Short Bend
• 180° Return Bend

Design & Radius

• Short Radius (SR) Bend:
  Radius is approximately 1D (one times the pipe diameter), making it compact and suitable for tight spaces.

End Connections

• Butt Weld (BW)
• Socket Weld (SW)
• Threaded / Screwed End

Standards & Specifications

• ASME B16.9 – Butt Weld Fittings
• ASME B16.11 – Socket Weld / Threaded Fittings
• DIN / IS Standards available

Pressure Ratings

• SCH 20
• SCH 40
• SCH 80
• SCH 160

Size Range

• From ½” (15 NB) to 24” (600 NB)

Key Features

✔ Compact design for limited installation space
✔ Strong and durable construction
✔ High mechanical strength
✔ Easy welding and installation
✔ Suitable for high-pressure applications
✔ Corrosion-resistant coating options available

Applications

• Steam & Boiler Lines
• Water Distribution Systems
• Oil & Gas Pipelines
• Fire Fighting Systems
• HVAC & Utility Piping
• Industrial Process Plants
• Structural & Fabrication Work

Advantages

• Saves installation space
• Provides quick directional change
• Durable and cost-effective
• Easy maintenance and replacement
• Suitable for industrial and commercial piping systems
