Sant Butterfly Valve Dealer In Delhi

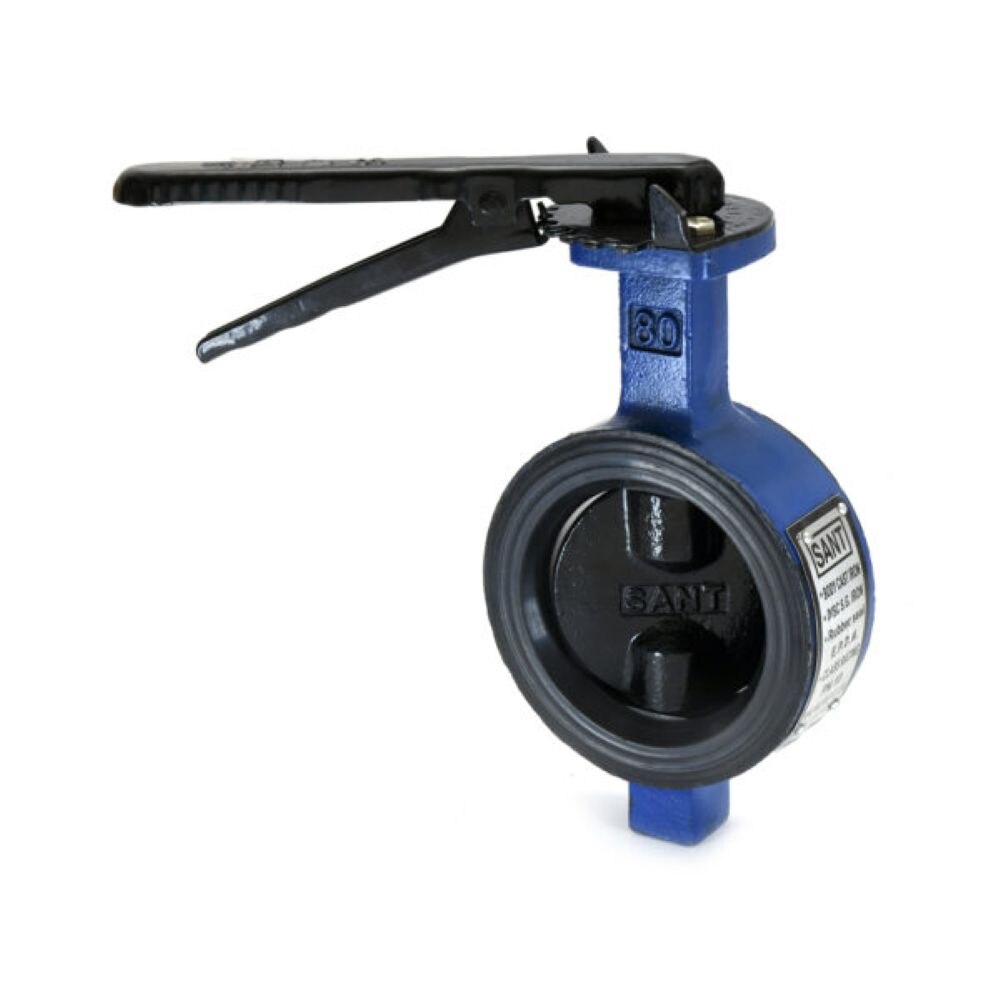

🔧 SANT Cast Iron Butterfly Valves

1. CR-22A – 100mm (4") Wafer Type Butterfly Valve

• Pattern: Short Pattern

• Pressure Rating: PN 16

• Body Material: Cast Iron IS:210 Gr.FG200

• Seat Lining: Nitrile / EPDM

• Disc Material: Stainless Steel CF8

• Stem: Stainless Steel AISI-410

• End Connections: Suitable insertion between flanges as per BS 10 Table D/E or ANSI B 16.1 Class 125

• Applications: Water, Oil

• Testing:

  • Body Test Pressure: 2.4 MPa (348 Psig) Hydraulic

  • Seat Test Pressure: 1.6 MPa (232 Psig) Hydraulic

• Note: Gear system provided for sizes above 150mm


2. CR-21A – 125mm (5") Wafer Type Butterfly Valve

• Pattern: Short Pattern

• Pressure Rating: PN 16

• Body Material: Cast Iron IS:210 Gr.FG200

• Seat Lining: Nitrile / EPDM

• Disc Material: SG Iron

• Stem: Stainless Steel AISI-410

• End Connections: Suitable insertion between flanges as per BS 10 Table D/E or ANSI B 16.1 Class 125

• Applications: Water, Oil

• Testing:

  • Body Test Pressure: 2.4 MPa (348 Psig) Hydraulic

  • Seat Test Pressure: 1.6 MPa (232 Psig) Hydraulic

• Note: Gear system provided for sizes above 150mm


3. CR-28C – 350mm (14") Wafer Type Butterfly Valve

• Pattern: Short Pattern

• Pressure Rating: PN 16

• Body Material: Cast Iron IS:210 Gr.FG200

• Seat Lining: EPDM

• Disc Material: Stainless Steel CF8M

• Stem: Stainless Steel AISI-304

• End Connections: Suitable insertion between flanges as per BS 10 Table D/E or ANSI B 16.1 Class 125

• Applications: Water, Oil

• Testing:

  • Body Test Pressure: 2.4 MPa (348 Psig) Hydraulic

  • Seat Test Pressure: 1.6 MPa (232 Psig) Hydraulic

• Note: Gear system provided for sizes above 150mm
