🔧 SANT CI Check Valve Models
1. CI-3C Cast Iron Swing Check Valve
-
Standard: BS:5153
-
Pattern: Straight Type
-
Pressure Rating: Class 125
-
Body Material: Cast Iron IBR 86 to 93 Gr.A
-
Trim: Stainless Steel AISI-410
-
Seat & Disc: Renewable
-
End Details: Flanges as per BS 10 Table F (undrilled)
-
Testing:
-
Body Test Pressure: 300 Psig (Hyd.)
-
Seat Test Pressure: 200 Psig (Hyd.)
-
Working Pressure: Max. BOP 150 Psig (10.54 kg/cm²)
-

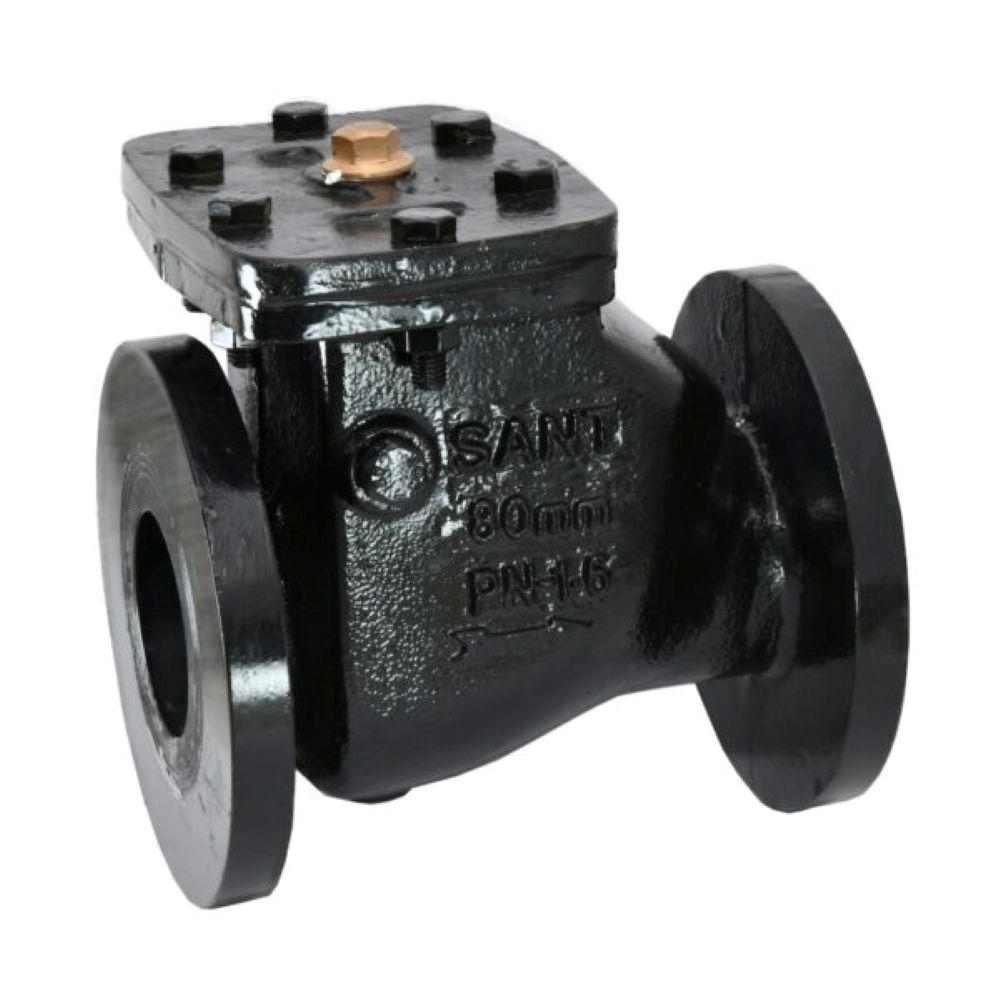

2. CI-3A Cast Iron Horizontal Check Valve
-
Standard: BS:5153
-
Pattern: Straight Type
-
Pressure Rating: PN 16
-
Body Material: Cast Iron IBR 86 to 93 Gr.A
-
Trim: Stainless Steel AISI-410
-
Seat & Disc: Renewable
-
End Details: Flanges as per DIN 2533 RF (PN 16) Undrilled
-
Testing:
-
Body Test Pressure: 26 kg/cm²g (Hyd.)
-
Seat Test Pressure: 16 kg/cm²g (Hyd.)
-
Working Pressure: Max. BOP 13 kg/cm²g at 220°C Steam
-
3. CI-5B Cast Iron Accessible Feed Check Valve
-
Pattern: Right Angle
-
Body Material: Cast Iron IBR 86 to 93 Gr.A
-
Trim: Stainless Steel AISI-410
-
Gland Packing: Expanded Pure Flexible Graphite
-
End Details: Flanges as per BS 10 Table F & H F.F. (undrilled)
-
Testing:
-
Body Test Pressure: 21.09 kg/cm²g
-
Seat & Backseat Test Pressure: 10.54 kg/cm²g
-
Working Pressure: Max. BOP 10.54 kg/cm²g (150 Psig) at 220°C Steam
4. CI-5D Cast Iron Accessible Feed Check Valve
-
Pattern: Right Angle
-
Body Material: Cast Iron IBR 86 to 93 Gr.A
-
Trim: Stainless Steel AISI-410
-
Gland Packing: Expanded Pure Flexible Graphite
-
End Details: Flanges as per BS 10 Table F & H F.F. (undrilled)
-
Testing:
Key Features Across All Models:
-
Durable Construction: Made from high-quality Cast Iron (IBR 86 to 93 Gr.A)
-
Reliable Performance: Renewable seat and disc for extended service life
-
Corrosion Resistance: Stainless Steel AISI-410 trim components
-
Versatile Applications: Suitable for water, oil, and steam systems
-
Compliance: IBR-approved with test certificates provided
