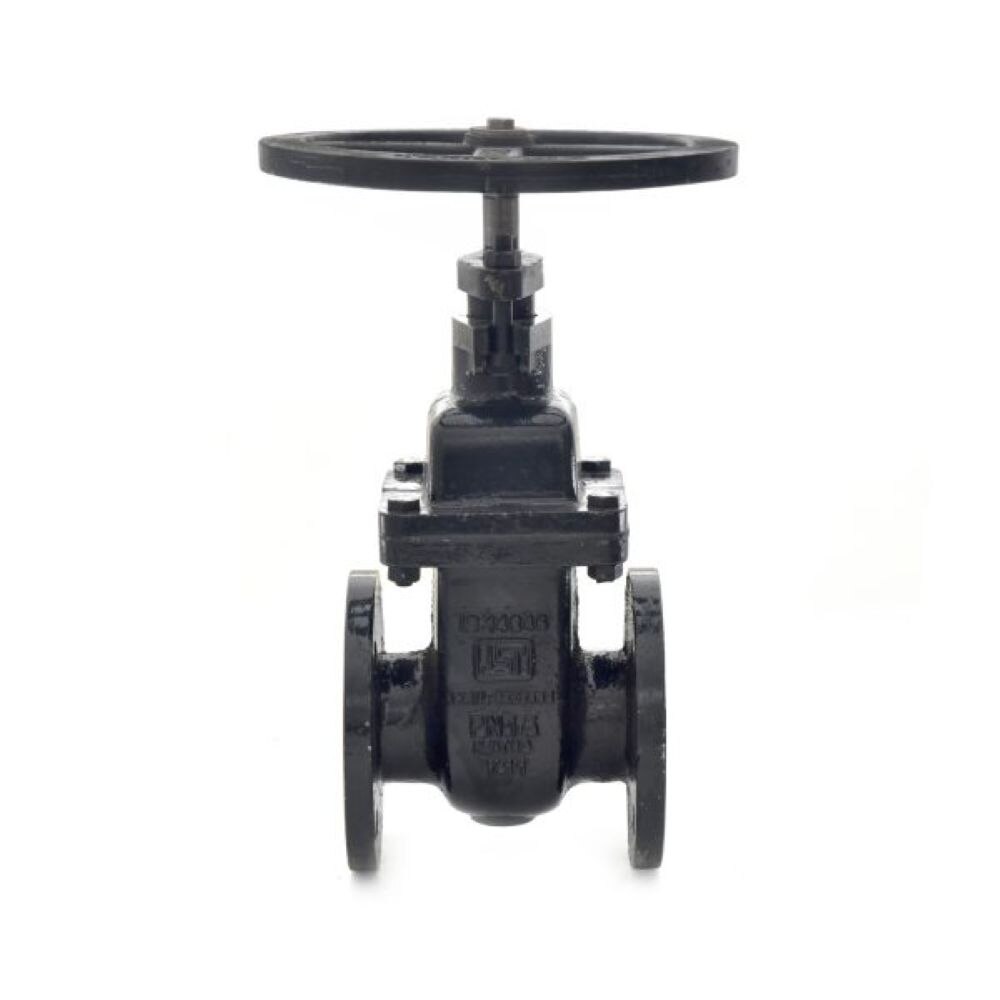

Sant CI Sluice Valve Supplier In Delhi NCR

Product Standard: IS:14846
Pressure Rating: PN 10 PD Type
Body Material: Cast Iron IS:210 Gr.FG200
Design Features:
- Bolted Bonnet
- Inside Screw & Non-Rising Stem
- Renewable Seat
- Solid Wedge Disc
Trim Materials:
- Cu-Alloy Rings
- Stem: SS (12 Cr.12)
Gland Packing: Rubber ‘O’ Ring
End Details: Flanges as per IS:1538 FF drilled
Testing:
- Body Test Pressure: 1.5 MPa (Hyd.)
- Seat Test Pressure: 1.0 MPa (Hyd.)
Certification: Works’ Test Certificate furnished with every supply

Component	Material Specification
Body, Cap, Gland, Bonnet, Wedge, Handwheel, Stuffing Box	Cast Iron IS:210 Gr.FG200
Screw, Bolts, Nuts	Carbon Steel IS:1363
Stem	S.S. IS:6603-12Cr12
Gland Packing	Rubber ‘O’ Ring IS:638 Type B
Body, Seat, Wedge Ring, Wedge Nut	Leaded Tin Bronze IS:318 Gr.LTB2
Gasket	Rubber IS:638 Type B
