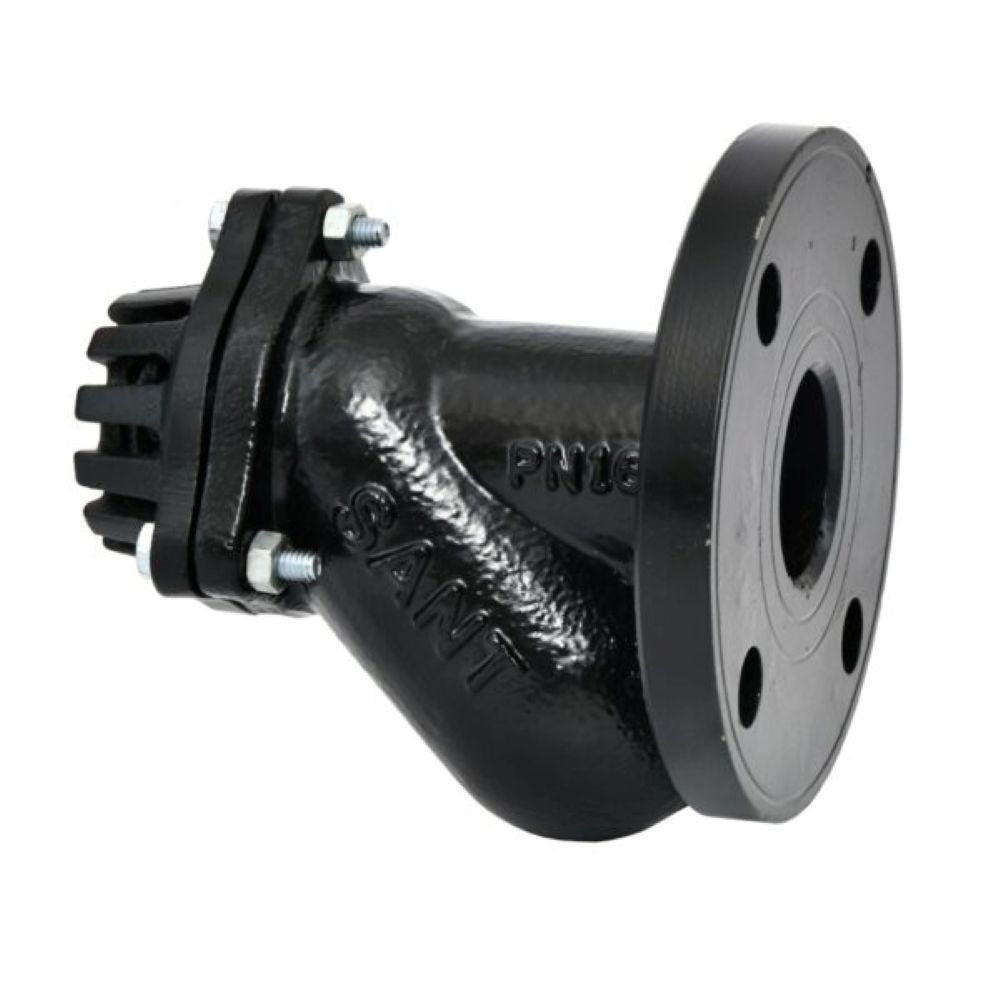

🔹 Sant C.I. Ball Foot Valve (Model: BFV)
-
Design: Y-type pattern
-
Pressure Rating: PN16
-
Body Material: Cast Iron (IS:210 Gr.FG200)
-
Ball: Mild Steel, rubber-coated
-
Seat Ring: Nitrile Rubber
-
Strainer: Cast Iron (IS:210 Gr.FG260)
-
End Connections: Flanged (IS:1538)
-
Applications: Suitable for water and oil systems
-
Testing:
-
Body Test Pressure: 2.4 MPa (348 Psig) Hydraulic
-
Seat Test Pressure: 1.6 MPa (232 Psig) Hydraulic
🔹 Sant Bronze Foot Valve (Model: IS-21)
-
Design: 2-piece construction with synthetic rubber O-ring
-
Seat Type: Integral seat
-
Body Material: Gun Metal (IS:318 Gr.LTB2)
-
End Connections: Screwed female threads (IS-554 Parallel)
-
Applications: Ideal for water systems
-
Testing:
-
Hydraulic Test Pressure: 300 Psig
-
🔹 Sant Bronze Foot Valve – 80mm (3")
-
Design: 2-piece construction with synthetic rubber O-ring
-
Seat Type: Integral seat
-
Body Material: Gun Metal (IS:318 Gr.LTB2)
-
End Connections: Screwed female threads (IS-554 Parallel)
-
Applications: Suitable for water systems
-
Testing:
-
Hydraulic Test Pressure: 300 Psig
🔹 Sant Bronze Foot Valve – 100mm (4")
-
Design: 2-piece construction with synthetic rubber O-ring
-
Seat Type: Integral seat
-
Body Material: Gun Metal (IS:318 Gr.LTB2)
-
End Connections: Screwed female threads (IS-554 Parallel)
-
Applications: Suitable for water systems
-
Testing:
-
Hydraulic Test Pressure: 300 Psig
-
