Description:

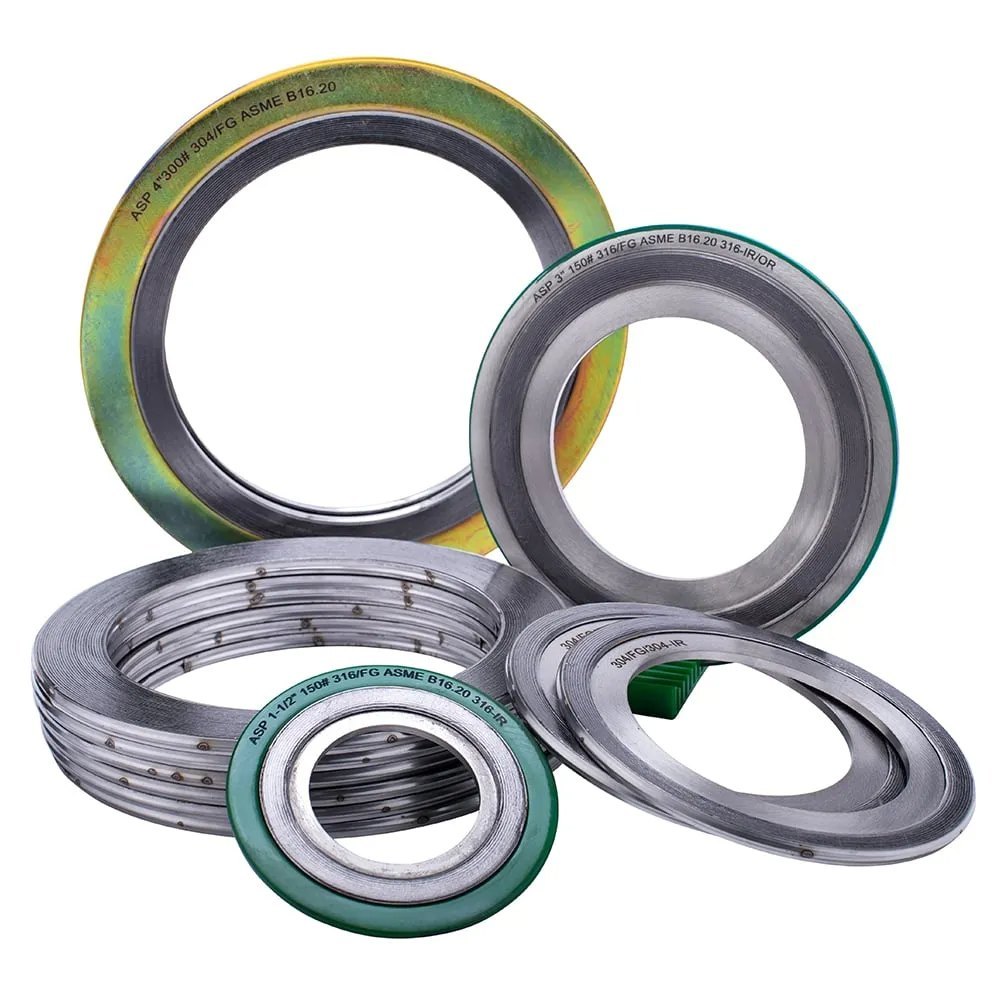

Spiral Wound Gaskets are precision-engineered sealing elements made by winding alternate layers of V-shaped metal strip and soft filler material (such as graphite, PTFE, or mica). They are designed to provide a strong, leak-proof seal under extreme temperature and pressure conditions. The combination of metal and filler material ensures resilience, flexibility, and durability, making them ideal for high-performance sealing in flanged joints.
Construction:
-
Winding Material: SS 304 / SS 316 / SS 321 / Monel / Inconel
-
Filler Material: Graphite / PTFE / Mica / Ceramic
-
Centering Ring: Carbon Steel / SS 304 / SS 316
-
Inner Ring: SS 304 / SS 316 / CS (optional)
Manufacturing Standards:
-
ASME B16.20
-
API 601 / DIN EN 1514-2
Temperature Range:
-
Up to 1000°C (depending on material combination)
Pressure Rating:
-
Class 150 to Class 2500
Features:
-
Excellent recovery and resilience
-
Withstands high temperature, pressure, and vibration
-
Easy to install and reusable in some cases
-
Provides reliable sealing even with flange imperfections
Applications:
-
Oil & Gas Industries
-
Petrochemical & Refinery Plants
-
Power Generation Units
-
Steam & Boiler Systems
-
Chemical & Process Industries
