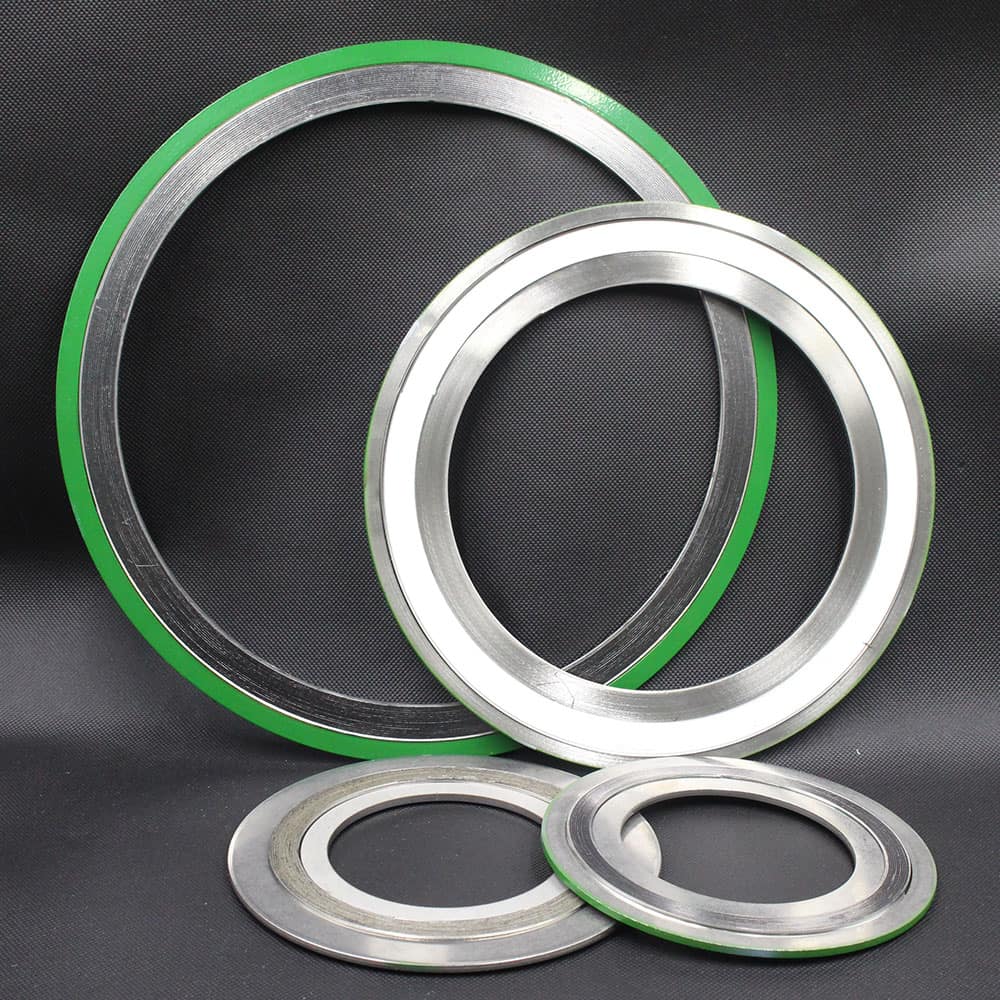

KLINGER Style 139 Spiral Wound Gaskets are engineered for high-performance sealing in demanding industrial applications, such as pipelines, pressure vessels, and turbines. These gaskets combine the strength of metallic windings with the sealing properties of flexible fillers, ensuring a reliable seal under extreme conditions.
🔧 Construction & Design
KLINGER Style 139 gaskets consist of alternating layers of pre-formed metallic windings and compressible filler materials, spirally wound to create a resilient sealing element. The metallic windings provide mechanical strength and resilience, while the filler materials, such as graphite or PTFE, enhance sealing performance by accommodating flange surface irregularities and thermal expansion.
📐 Dimensions & Variants
-
Nominal Pipe Sizes (NPS): Available from ½ inch (DN 15) to 48 inches (DN 1200), accommodating a wide range of flange sizes.
-
Thickness Options: Common thicknesses include 3.2 mm (0.125 inch), 4.5 mm (0.175 inch), and 6.4 mm (0.25 inch), allowing for selection based on pressure and temperature requirements.
-
Inner and Outer Rings: Gaskets are available with or without inner and outer rings, depending on the flange design and sealing requirements.
🌡️ Temperature & Pressure Ratings
-
Maximum Short-Term Temperature: Up to 450°C (842°F), suitable for high-temperature applications.
-
Maximum Continuous Temperature: Up to 300°C (572°F), ensuring durability under sustained heat.
-
Pressure Ratings: Designed to withstand pressures up to 150 bar (2175 psi), making them suitable for high-pressure environments.
🛠️ Applications
KLINGER Style 139 Spiral Wound Gaskets are ideal for sealing flanges in various industries, including:
-
Oil & Gas: Sealing pipelines and processing equipment.
-
Power Generation: Ensuring leak-proof seals in turbines and reactors.
-
Chemical Processing: Maintaining integrity in reactors and heat exchangers.
-
Marine: Sealing systems in ships and offshore platforms.
✅ Key Benefits
-
High-Performance Sealing: Effective in sealing under extreme temperature and pressure conditions.
-
Versatility: Suitable for a wide range of industrial applications.
-
Durability: Resistant to thermal cycling, vibration, and corrosive media.
-
Compliance: Certified for emission control applications, ensuring environmental safety.
