Description:

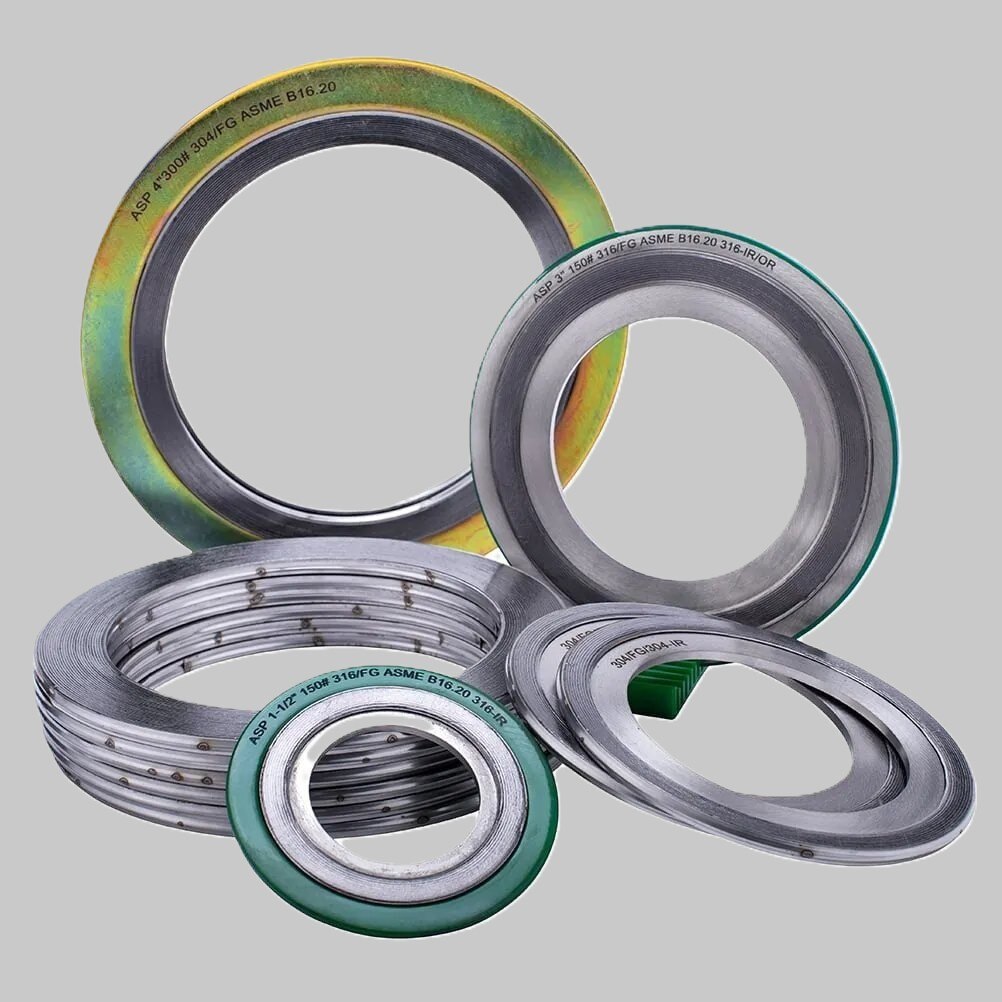

A Spiral Wound Gasket (SWG) is a high-performance sealing solution made by spirally winding a V-shaped metal strip with a soft filler material. This construction provides excellent elastic recovery, strength, and tight sealing, making it suitable for high pressure, high temperature, and fluctuating service conditions. Spiral wound gaskets are widely used in critical flange joints across process industries.
Construction & Materials:
Metal Winding Material:
SS 304 / SS 316 / SS 321
Carbon Steel / Monel / Inconel (as required)
Filler Material:
Flexible Graphite
PTFE
Mica / Ceramic (high temperature)
Outer Centering Ring: Carbon Steel / SS
Inner Ring: SS 304 / SS 316 / CS (optional)
Standards & Specifications:
ASME B16.20
DIN EN 1514-2
API 601
Pressure & Temperature Range:
Pressure Class: Class 150 to Class 2500
Temperature:
Graphite: up to ~1000°C
PTFE: up to ~260°C
Types Available:
Type CG (with outer ring)
Type CGI (with inner & outer ring)
Type R (ring only)
Key Features:
Excellent sealing under fluctuating pressure & temperature
High resilience and recovery
Resistant to vibration and thermal cycling
Easy installation and reliable performance
Suitable for critical services
Applications:
Oil & Gas Refineries
Chemical & Petrochemical Plants
Power Plants & Boilers
Steam, Hydrocarbon & Process Lines
Heat Exchangers & Pressure Vessels
