Description

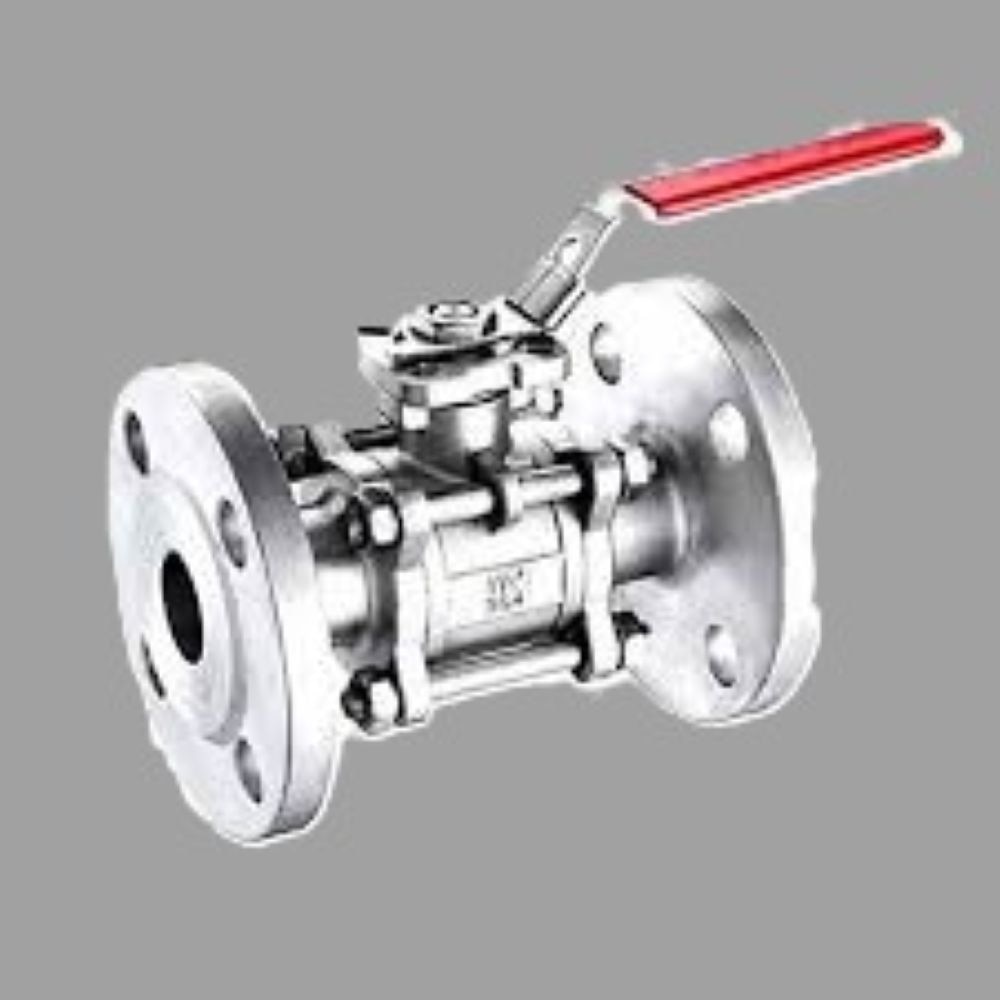

A Stainless Steel 304 Ball Valve with Flanged Ends is a quarter-turn shut-off valve that uses a precision machined SS 304 ball to control flow. When the handle is turned 90°, the ball bore rotates to open or close the valve, providing quick operation and tight shut-off. Flanged ends allow easy installation into piping systems, reliable sealing against gaskets, and are ideal for medium to heavy-duty industrial services including liquids, gases, and steam.
Construction & Materials
| Component | Material |
|---|---|
| Body & Bonnet | SS 304 (AISI 304 / ASTM A351 CF8) |
| Ball | SS 304, polished for tight sealing |
| Seats | PTFE / RPTFE (standard), optional Reinforced PTFE |
| Stem | SS 304 |
| Seals & Packing | PTFE / Graphite |
| Flanges | SS 304 flanged ends drilled to standards |
| Handle | Lever with locking device |
Standards & Specifications
Design Standards: API 6D / ISO 17292 / BS 5351
Flange Standards:
ASME B16.5 (Class 150 / Class 300 / PN16 / PN25 / PN40)
DIN / EN / ISO versions available
IS / JIS on request
Pressure Rating:
Common: Class 150 / Class 300
PN16 / PN25 / PN40 depending on flange spec
Size Range: Typically ½″ to 12″ (larger sizes on request)
Testing: Shell & Seat Test per API 598 / ISO 5208
Key Features
✔ Corrosion-resistant SS 304 construction for long life
✔ Tight shut-off with bubble-tite seats
✔ Easy installation with flanged connection
✔ Offers manual, gear, or automated actuation
✔ Low operating torque and smooth operation
✔ Optional locking device on lever for safety
Performance & Service Capabilities
Media: Water, oil, gas, steam (low-medium pressure), chemicals
Temperature Range:
PTFE seats: approx. -20°C to 220°C
RPTFE / special seals: extended range
Suitable for:
On/Off service
Low to moderate throttling (where applicable)
Applications
Process & Utility Piping
Water & Wastewater Treatment
Oil & Gas Facilities
Chemical & Petrochemical Plants
**Power Generation
Food, Pharmaceutical & Beverage Lines
HVAC & Fire Systems
Benefits
Reliable shut-off with minimal leakage
Flanged ends for robust, secure connection
High corrosion resistance for diverse media
Maintenance-friendly design
Modular and upgradable actuation
