🔹 Product Name:

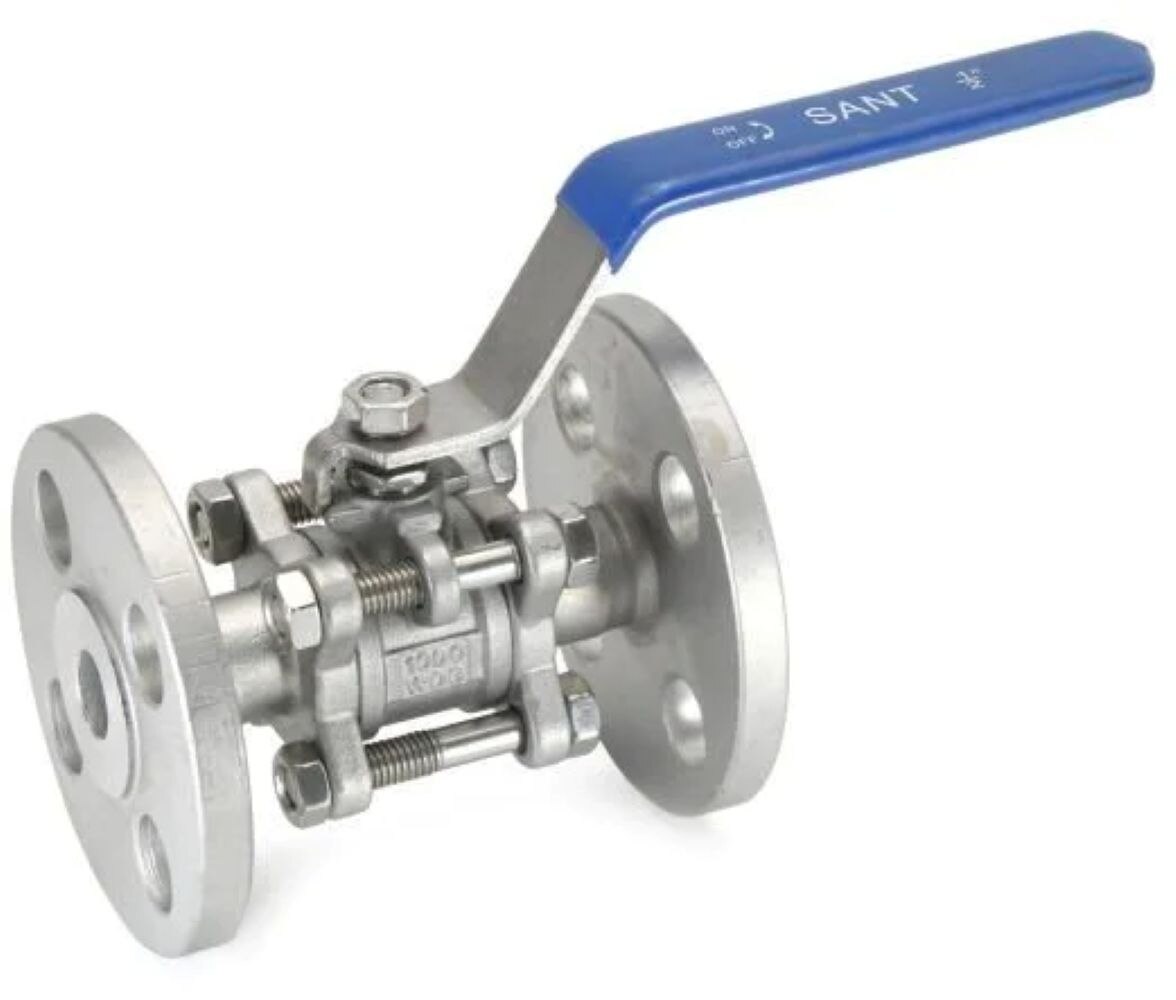

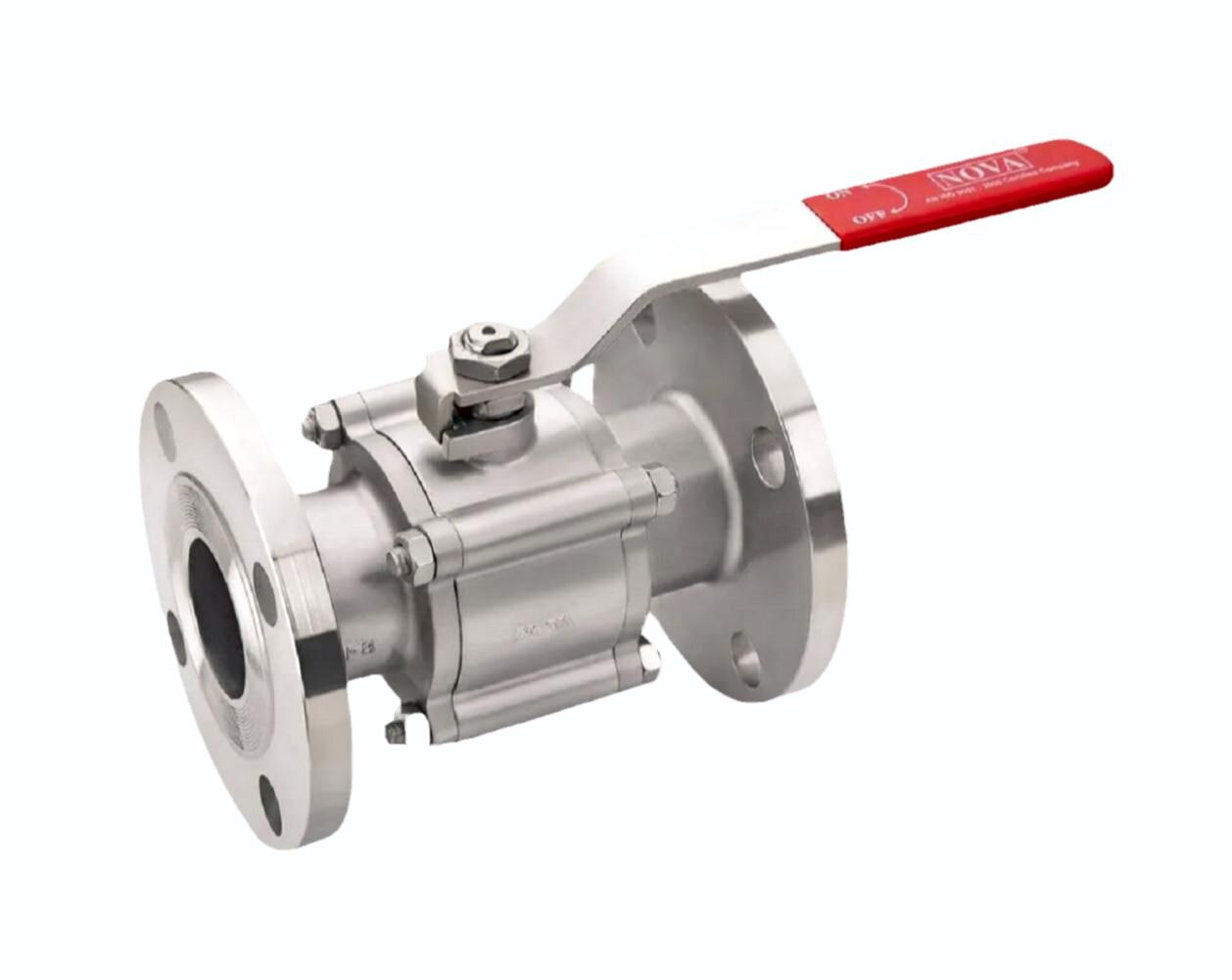

Stainless Steel 304 Ball Valve – Flange End
🔹 Material of Construction:
-
Body: SS 304 (CF8)
-
Ball: SS 304 (Precision Machined & Polished)
-
Stem: SS 304
-
Seat & Seals: PTFE / RPTFE
🔹 End Connection:
-
Flanged: ASME B16.5 / ANSI Class 150 / 300
-
Drilled as per standard dimensions for bolting
🔹 Size Range:
½” to 6” (DN15 – DN150)
🔹 Pressure Rating:
-
Class 150 / Class 300
-
Suitable for up to 1000 PSI (depending on size)
🔹 Temperature Range:
-
–20°C to +180°C (with PTFE seat)
-
Higher temperatures possible with special seats
🔹 Design Standards:
-
ASME B16.34
-
API 608 / BS 5351
-
Testing: API 598 / ISO 5208
🔹 Applications:
-
Water, Oil & Gas pipelines
-
Chemical & Petrochemical industries
-
Food & Beverage industry
-
Pharmaceutical & Dairy
-
General Industrial applications
🔹 Key Features:
-
Full Bore / Reduced Bore design
-
Smooth quarter-turn operation
-
Corrosion-resistant, leak-proof, long service life
-
Easy installation and maintenance
⚙️ At Industrial Engineering Syndicate, we supply SS 304 Ball Valves (Screwed End) with superior durability and reliable performance for diverse industrial applications.
