Description

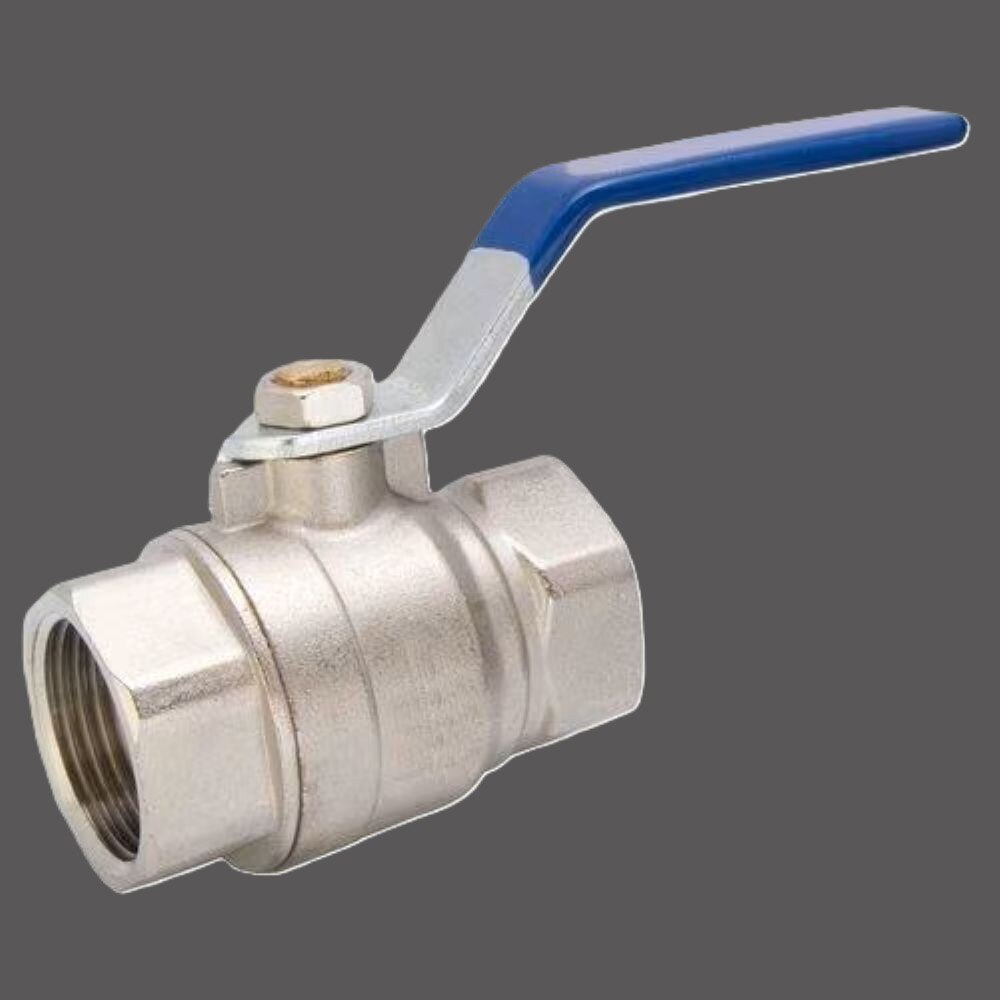

A Stainless Steel 304 Ball Valve with Screw End is a quarter-turn valve that uses a spherical ball with a bore to control flow. It is operated by turning a lever or handle 90°, providing quick on/off operation and tight shut-off. The screw (threaded) ends make these valves ideal for compact pipeline installations, where flanged or welded ends are not required. SS 304 construction provides excellent corrosion resistance and suitability for water, oil, gas, and many chemical services.
Construction & Materials
Body Material: SS 304 (ASTM A351 / AISI 304)
Ball: SS 304 polished ball for smooth sealing
Seats/Seals: PTFE / RPTFE (excellent chemical resistance)
Stem: SS 304 with packing and O-rings
Handle: Lever with lock-nut (SS or plated)
Thread Type:
BSP (British Standard Pipe)
NPT (National Pipe Thread) — specify per requirement
Standards & Specifications
Design: API 608 / BS 5351 / ISO 17292
Connection Threads: BSP / BSPT / NPT per ISO/ANSI
Pressure Rating: Typically up to Class 300 / PN 40 (varies by size and manufacturer)
Size Range: ¼″ to 2″ (common)
Testing: Shell & Seat test per API 598
Key Features
✔ Corrosion-resistant SS 304 construction — suitable for wide range of fluids
✔ Quick quarter-turn operation for fast on/off control
✔ Bubble-tight shut-off with PTFE seats
✔ Compact and lightweight for threaded installations
✔ Low maintenance and long service life
✔ Handle with locking provision for safety
Applications
Water & Plumbing Systems
Compressed Air Lines
Gas Distribution & HVAC
Chemical & Petrochemical Services (non-highly corrosive)
Food & Beverage Processing
Pharmaceutical & Laboratory Piping
General Industrial Piping
Benefits
Easy to install (no welding or flanges)
Compact, economical solution
Excellent corrosion resistance for hygiene-sensitive services
Reliable sealing performance even after frequent operation
