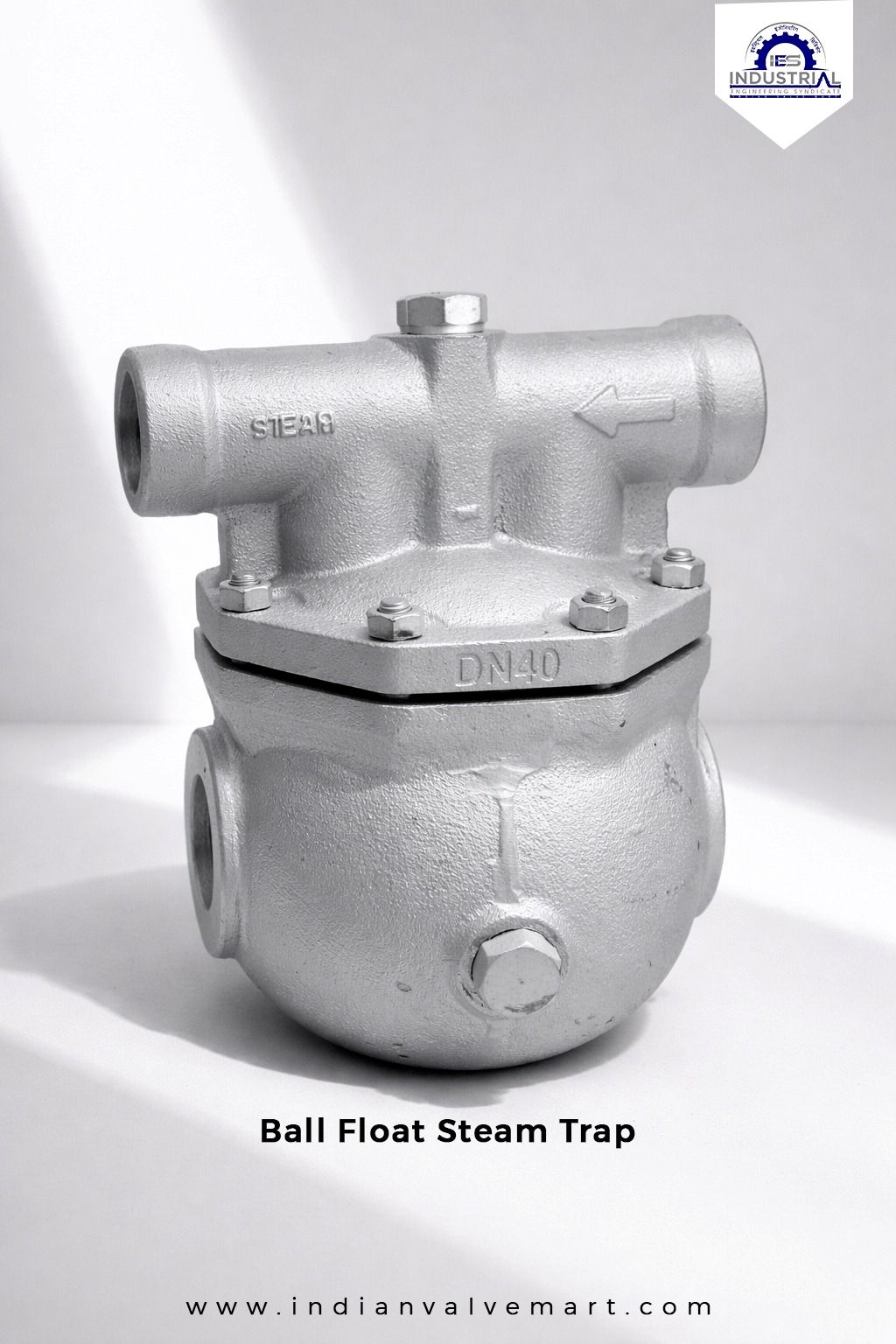

The Thermax Limited Ball Float Steam Trap is a mechanical steam trap designed for continuous condensate removal while preventing steam loss. It is widely used in process equipment, heat exchangers, and steam lines where condensate load is high and fluctuating.
🔧 Key Features
- Continuous Discharge – removes condensate as it forms (no accumulation)
- Rotary Slide / Float Mechanism – ensures smooth and controlled drainage
- Built-in Thermostatic Air Vent – releases air during startup for faster heating
- No Choking Design – large flow area prevents blockage
- Fusion Welded Ball Float – longer service life and durability
- Handles Variable Loads – performs efficiently under fluctuating condensate loads
⚙️ Working Principle
- Operates on density difference between steam and condensate
- Condensate enters trap → level rises → float lifts and opens valve
- Condensate discharges continuously
- When level drops → valve closes → steam is retained
📏 Specifications (Typical)
- Type: Mechanical – Ball Float
- Sizes: 15 NB to 50 NB (typical range)
- Pressure Range: Up to ~16–32 bar (varies by model)
- Temperature: Up to ~220°C+
- Body Material: Cast Iron / Carbon Steel / Stainless Steel
- End Connections: Screwed / Flanged / Socket Weld
- Standards: As per industrial steam system requirements
⚙️ Construction
- Body: CI / WCB / SS
- Float: Stainless Steel welded ball
- Seat & Valve: Hardened stainless steel
- Air Vent: Thermostatic capsule type
🏭 Applications
- Heat exchangers
- Steam jackets & vessels
- Drying cylinders
- Food & pharma industries
- Textile & chemical plants
- Process heating equipment
✅ Advantages
- No steam loss (energy saving)
- Handles high condensate loads
- Immediate discharge improves efficiency
- Prevents water hammer
- Low maintenance & long life
⭐ Conclusion
Thermax Ball Float Steam Traps are ideal for continuous condensate removal with zero steam loss, making them highly efficient for process industries and steam-intensive applications.
