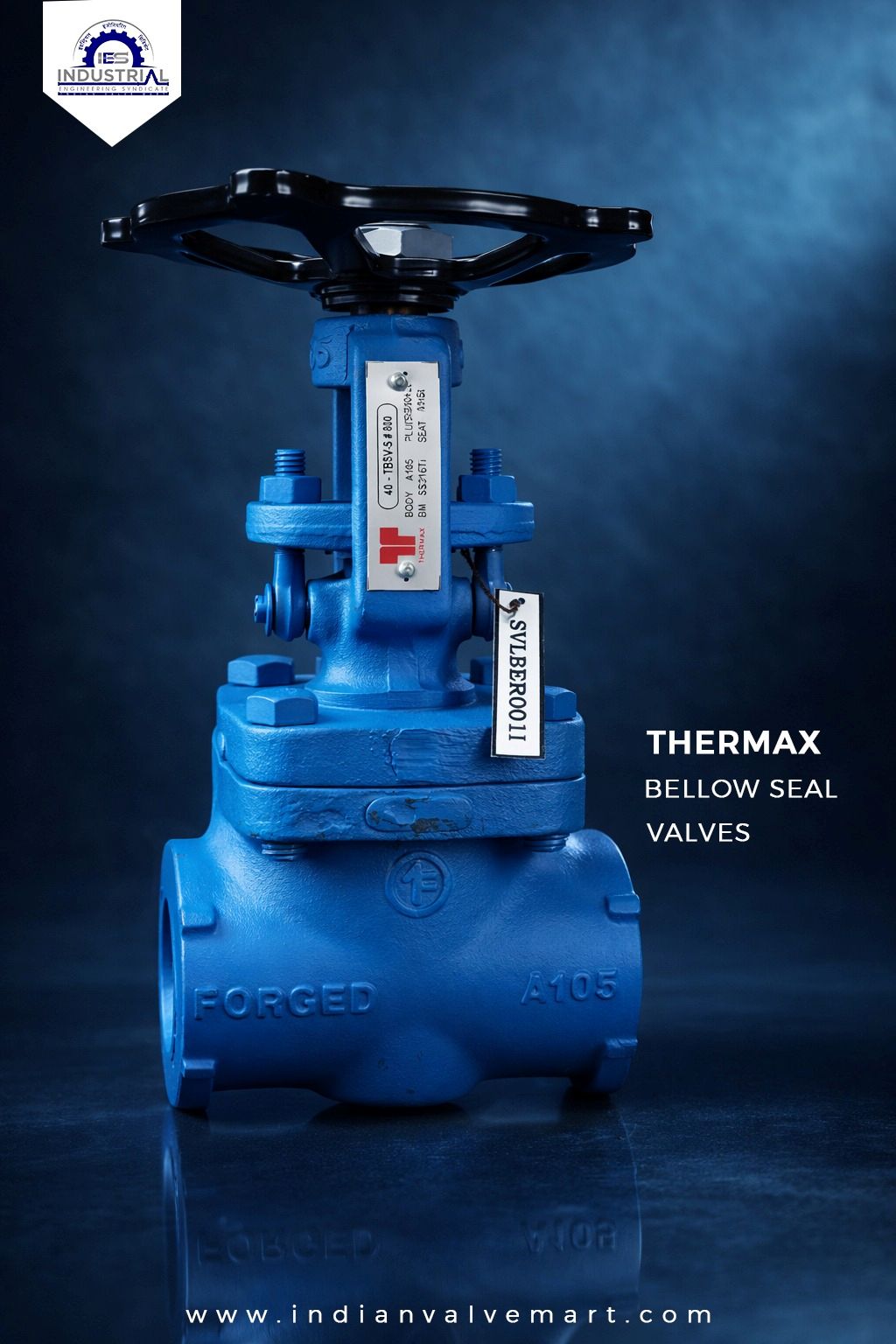

Thermax Bellow Seal Valve Stockiest In Naraina Industrial Area

Thermax Bellow Seal Valve (TBSV) is a high-performance isolation valve specially designed for zero leakage applications in steam and hazardous fluid systems. Unlike conventional valves, it uses a welded metallic bellows that completely isolates the fluid from the atmosphere, ensuring safe and leak-free operation.

🔧 Key Features

• Zero Leakage Design – metallic bellows prevents any stem leakage
• Maintenance-Free Operation – eliminates frequent gland packing replacement
• Multiple Sealing Points – ensures high safety and reliability
• Stellite Coated Seat & Disc – improves wear resistance and long life
• Low Pressure Drop – efficient flow in steam and thermic fluid lines
• Environment-Friendly – prevents emission of hazardous fluids

📏 Specifications

• Size Range: up to 250 NB
• Pressure Class: up to Class 150 / 300 / 800 and higher
• Temperature Range: up to approx. 515°C (steam applications)
• Body Material: Carbon Steel (WCB), Forged Steel
• Bellows Material: SS 316 Ti
• End Connections: Flanged / Butt Weld / Socket Weld
• Standards: ASME B16.34, API 598

⚙️ Construction

• Body & Bonnet – Carbon Steel / Forged Steel
• Bellows – Welded Stainless Steel (SS 316 Ti)
• Seat & Disc – Stellited for durability
• Stem – Alloy Steel / Stainless Steel

⚙️ Working Principle

• Metallic bellows are welded to the stem and bonnet
• Acts as a barrier between fluid and atmosphere
• Allows linear motion while maintaining a hermetic seal
• Ensures zero emission and no leakage

⚙️ Applications

• Steam and condensate lines
• Thermic fluid systems
• Chemical & petrochemical industries
• Power plants
• Food & pharmaceutical industries
• Oil & gas pipelines

✅ Advantages

• Zero leakage = enhanced safety
• Energy saving (no steam loss)
• Long service life
• Low maintenance cost
• Ideal for hazardous & high-temperature media

⭐ Conclusion

Thermax Bellow Seal Valves are widely trusted for their zero-leak performance, safety, and durability, making them an ideal solution for critical steam and industrial applications where leakage cannot be tolerated.
