Description:

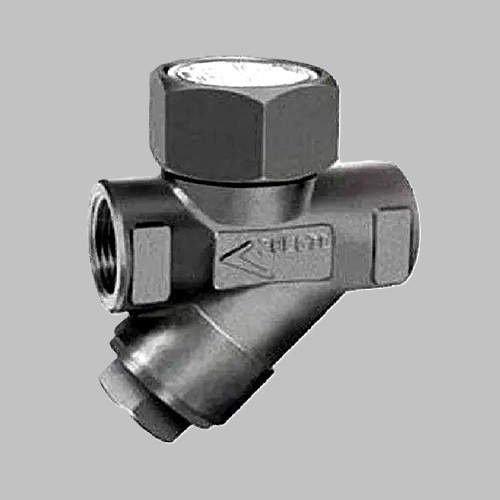

A Thermodynamic Steam Trap is an automatic valve designed to discharge condensate and non-condensable gases from steam systems while preventing live steam loss. It operates on the principle of velocity and pressure difference between steam and condensate. These traps are compact, robust, and highly reliable, making them ideal for high-pressure and superheated steam applications.
Design & Construction:
Body Material: Carbon Steel / Stainless Steel
Disc: Hardened Stainless Steel
Seat: Integral or Renewable Seat
Cap: Insulated or Uninsulated
Operation: Automatic, cyclic open-close action
Standards & Specifications:
Design: ISO 6552 / BS 6759
Testing: ISO 7841 / Manufacturer’s Standard
End Connections: Screwed (BSP/NPT) / Flanged
Sizes: ½”, ¾”, 1” (larger sizes on request)
Operating Range:
Pressure: Suitable for low to very high pressure steam
Temperature: Up to 425°C (depending on material)
Key Features:
Simple and rugged design with only one moving part
High resistance to water hammer and vibration
Compact size and lightweight
Long service life with minimal maintenance
Can operate in horizontal or vertical positions
Applications:
Steam Tracing Lines
Main Steam Lines
Drip Legs
Turbines & Heat Exchangers
Refineries, Power Plants & Process Industries
Advantages:
Cost-effective and reliable
Excellent performance in high-pressure steam systems
Suitable for outdoor installations
Easy to install and replace
