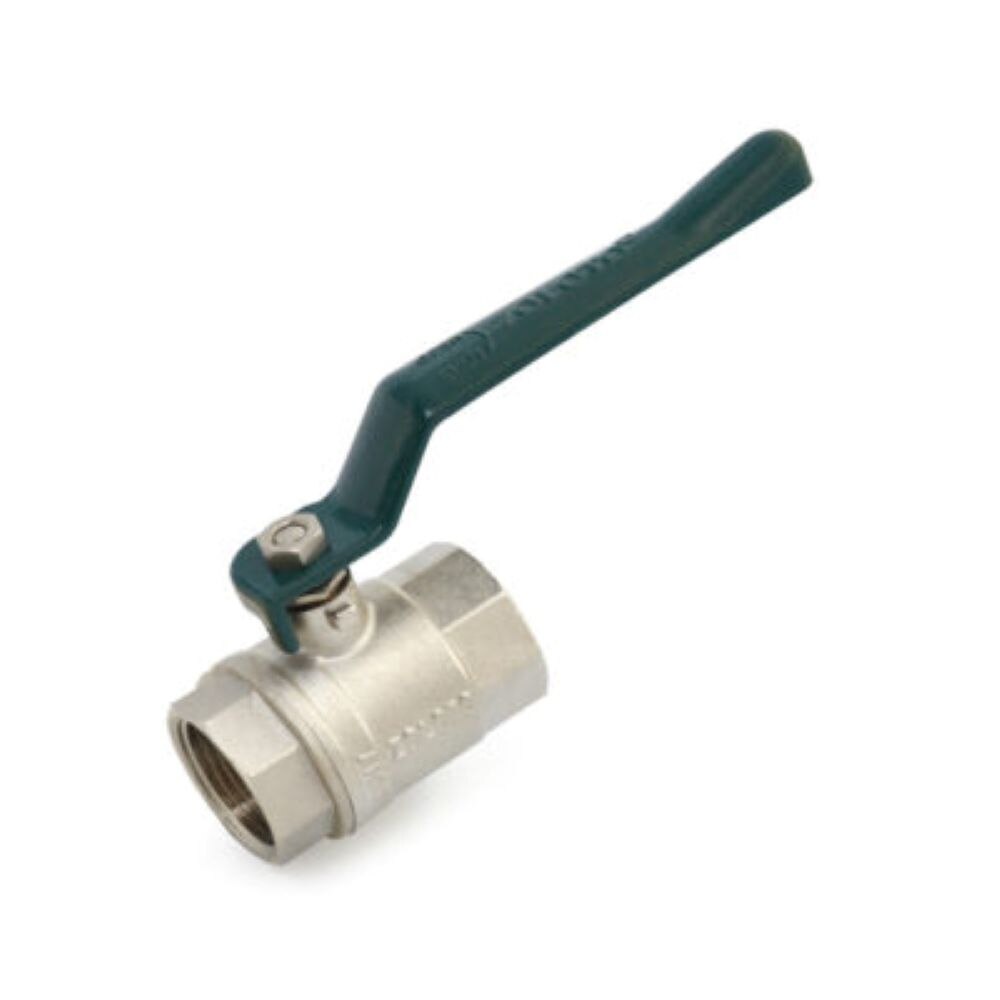

The Zoloto 1008B Forged Brass Ball Valve is a high-quality valve designed for various industrial applications, including water, oil, air, and gas systems. It features a full-bore, two-piece design with screwed female ends, ensuring efficient flow and easy installation.
🔧 Key Specifications
-
Material: Forged Brass (IS 6912 Gr. FLB)
-
Design: Full Bore, Two-Piece
-
End Connections: Screwed Female Ends (IS 554 / BS 21 / ISO 7)
-
Operation: Quarter Turn, Lever Operated
-
Ball: Forged Brass, Hard Chrome Plated
-
Sealing: PTFE Gland Packing and Seating
-
Finish: Chrome Plated
-
Maximum Working Temperature: 220°C
-
Hydrostatic Test Pressure:
-
Shell: 25 kg/cm²g (350 psig)
-
Seat: 16 kg/cm²g (225 psig)
-
-
Suitable For: Water, Oil, Air, Gases
-
Pressure Rating: Up to 6.9 kg/cm²g
📏 Available Sizes & Dimensions
The Zoloto 1008B is available in various sizes, each with specific dimensions:
-
15 mm (1/2"): Length: 50 mm, Width: 40 mm, Height: 106 mm
-
20 mm (3/4"): Length: 57 mm, Width: 43 mm, Height: 132 mm
-
25 mm (1"): Length: 67 mm, Width: 47 mm, Height: 132 mm
-
32 mm (1 1/4"): Length: 76 mm, Width: 62 mm, Height: 166 mm
-
40 mm (1 1/2"): Length: 87 mm, Width: 68 mm, Height: 176 mm
-
50 mm (2"): Length: 104 mm, Width: 80 mm, Height: 216 mm
-
65 mm (2 1/2"): Length: 139 mm, Width: 100 mm, Height: 216 mm
-
80 mm (3"): Length: 155 mm, Width: 110 mm, Height: 280 mm
-
100 mm (4"): Length: 177 mm, Width: 124 mm, Height: 280 mm
🛠️ Applications
The Zoloto 1008B ball valve is suitable for:
-
Water Supply Systems: Controlling water flow in pipelines.
-
Oil and Gas Pipelines: Regulating the flow of oil and gas.
-
Air Handling Units: Managing air flow in HVAC systems.
-
Industrial Processes: Used in various industrial applications requiring reliable shut-off valves.
